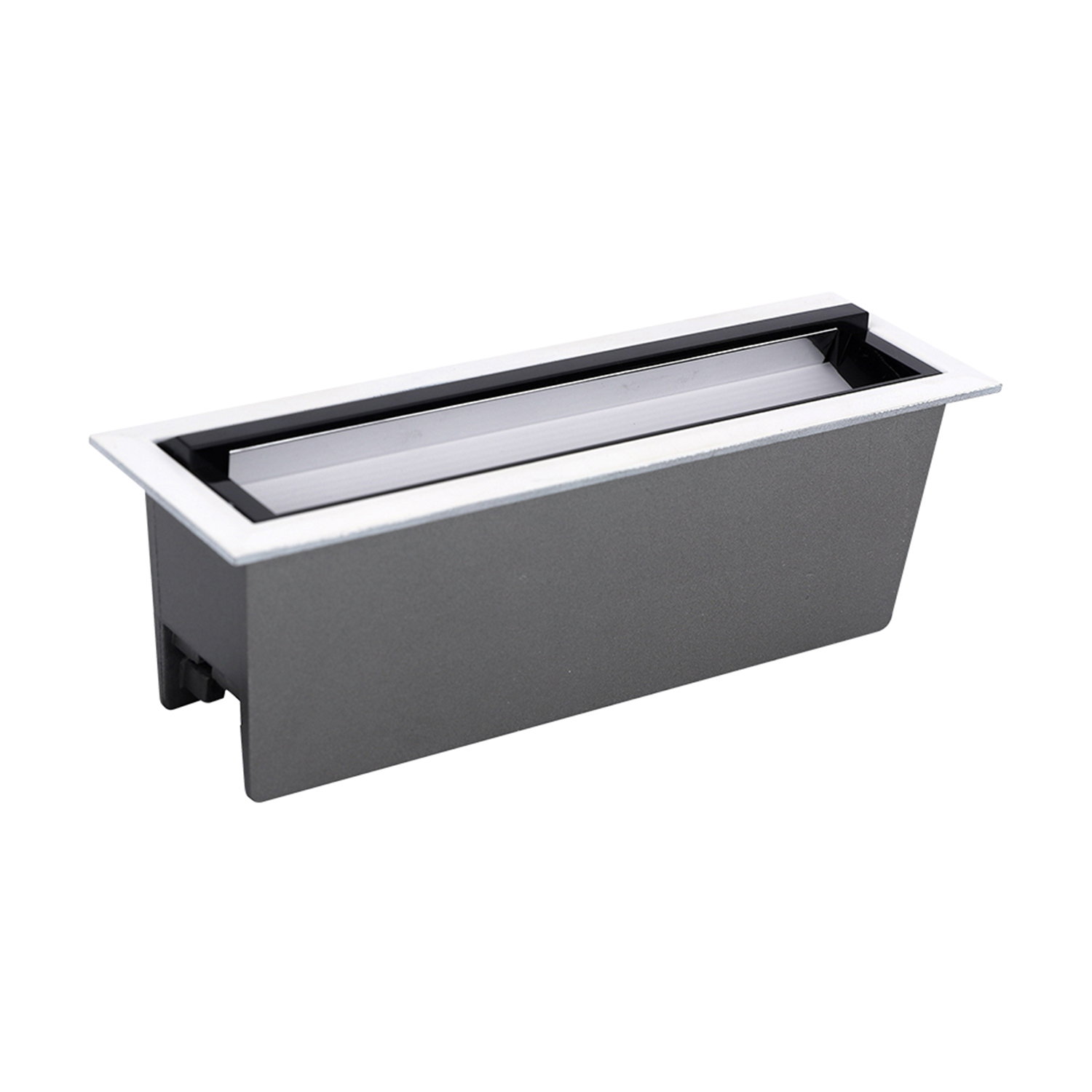

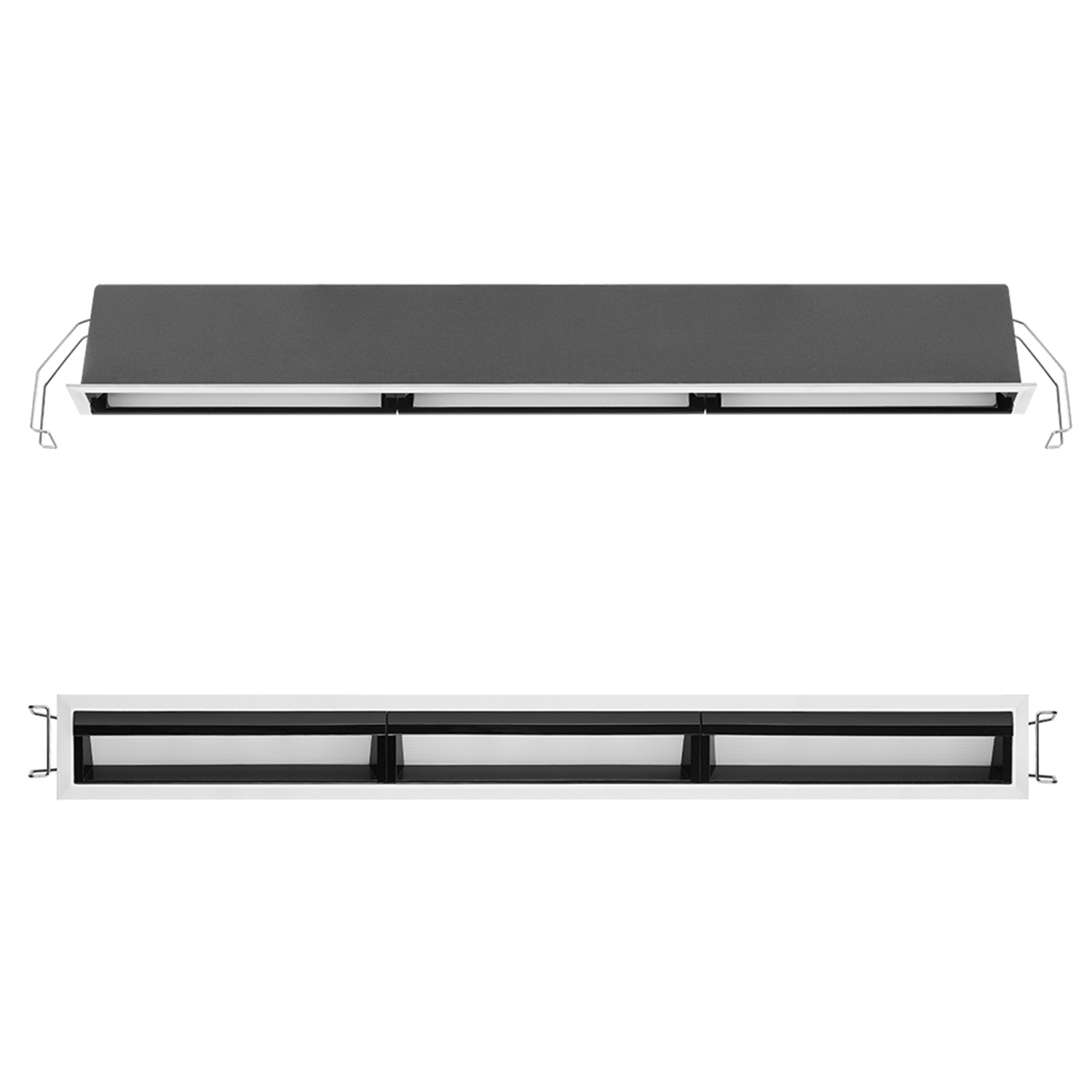

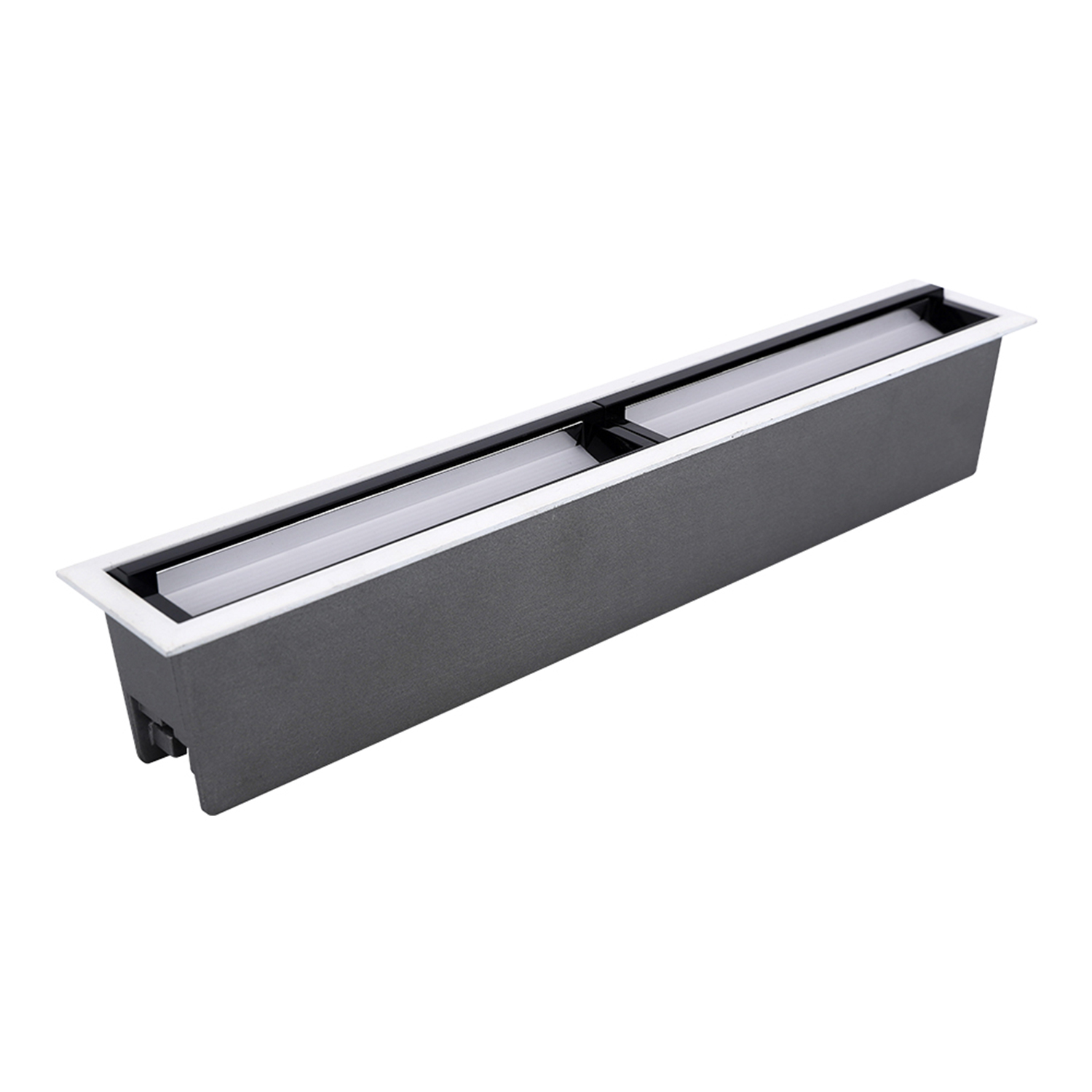

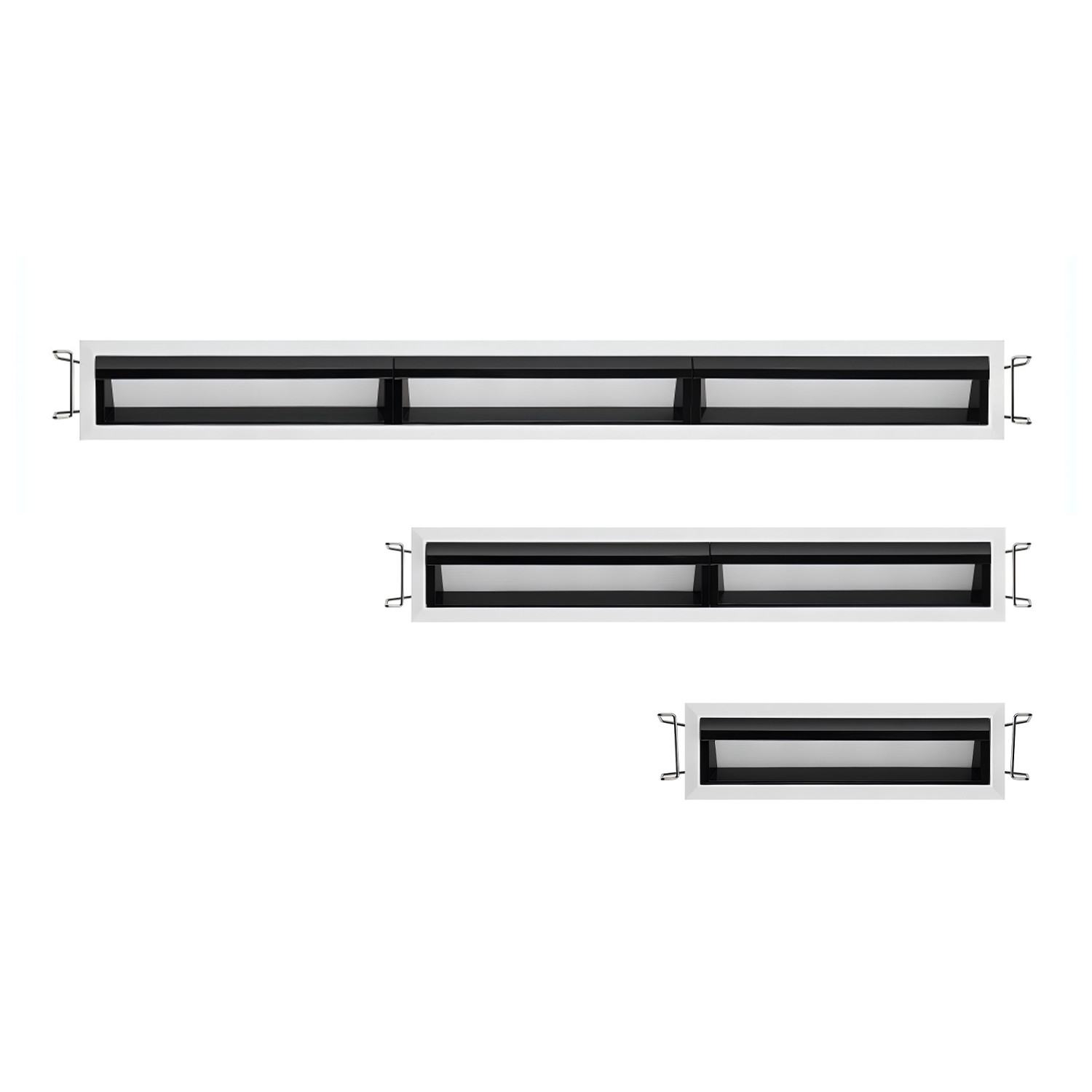

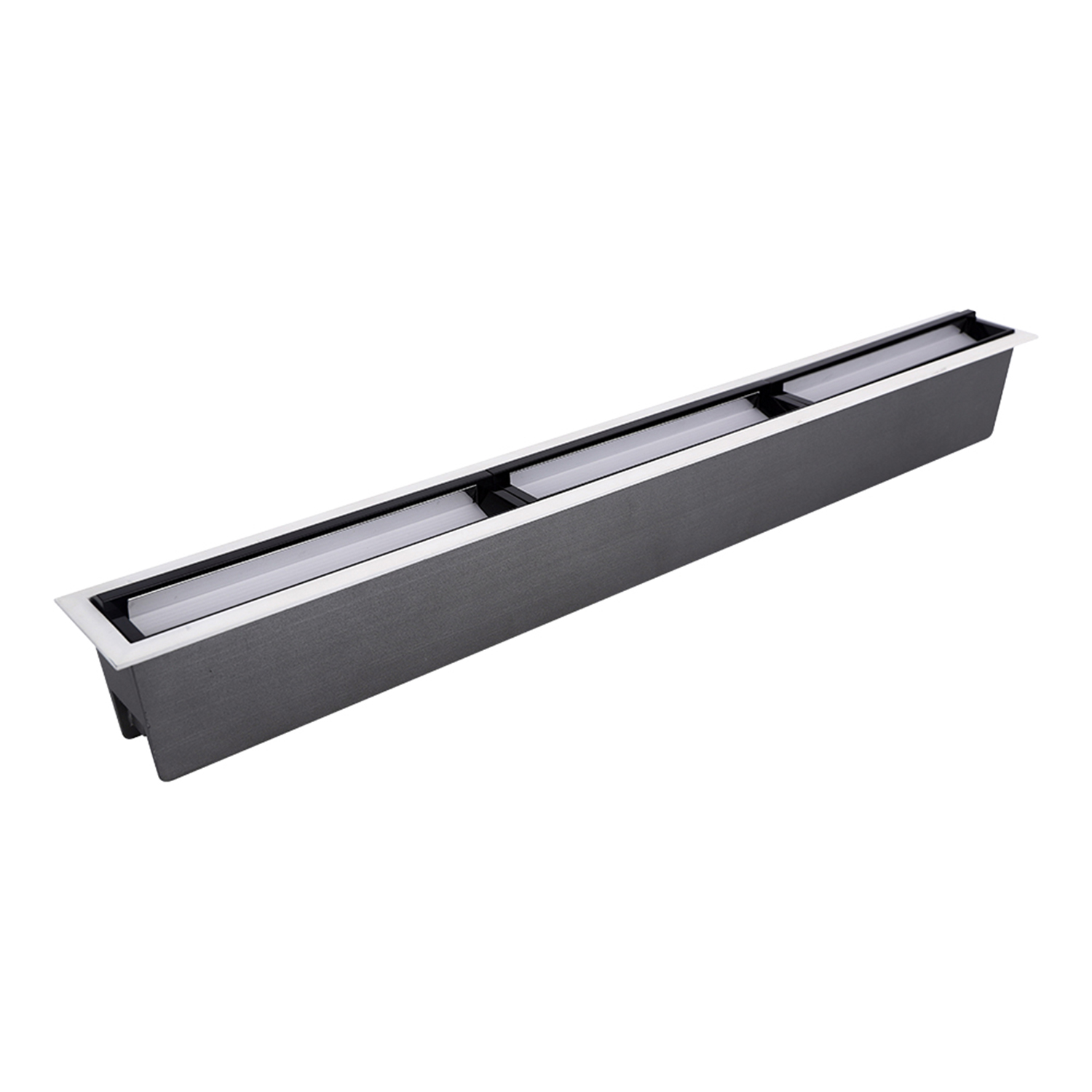

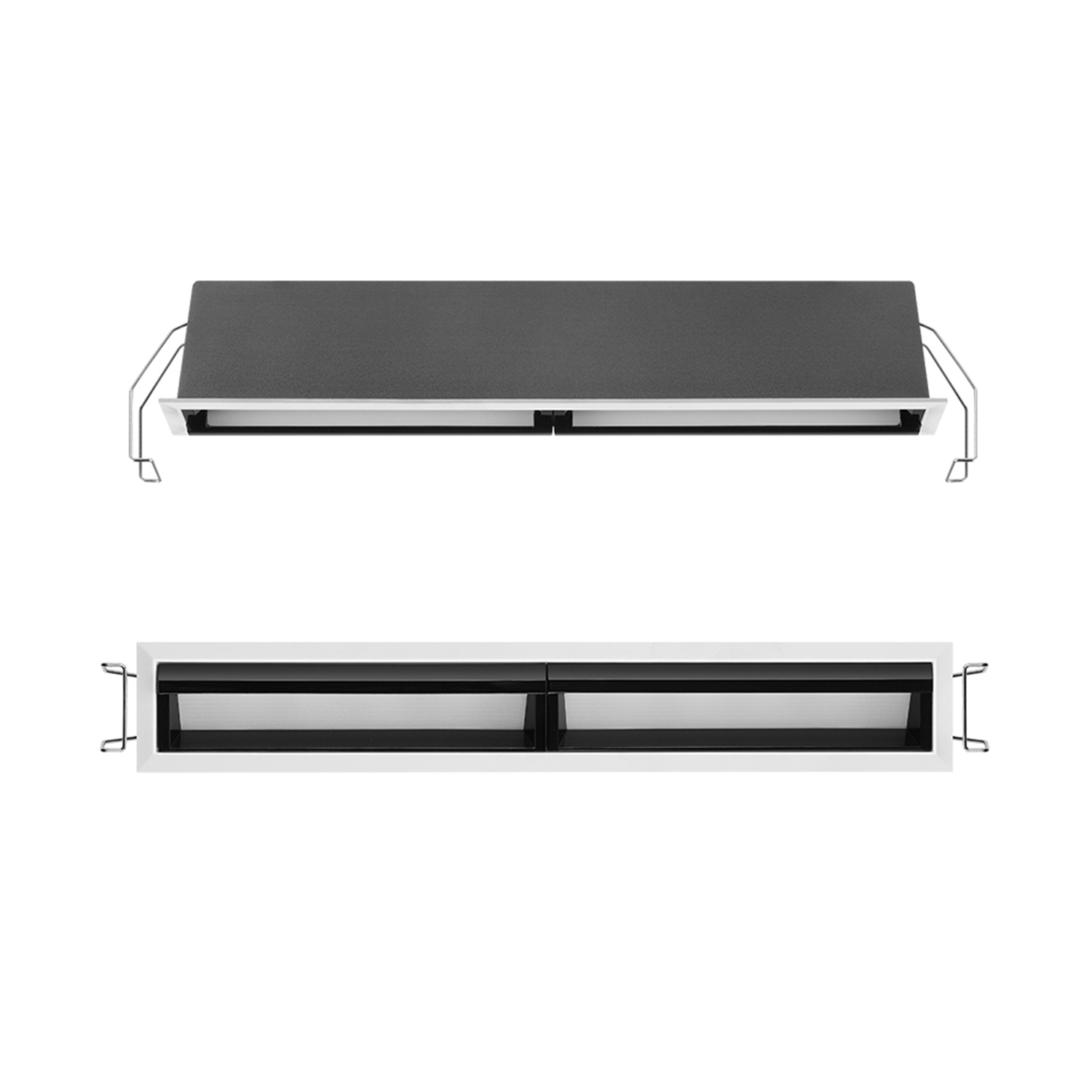

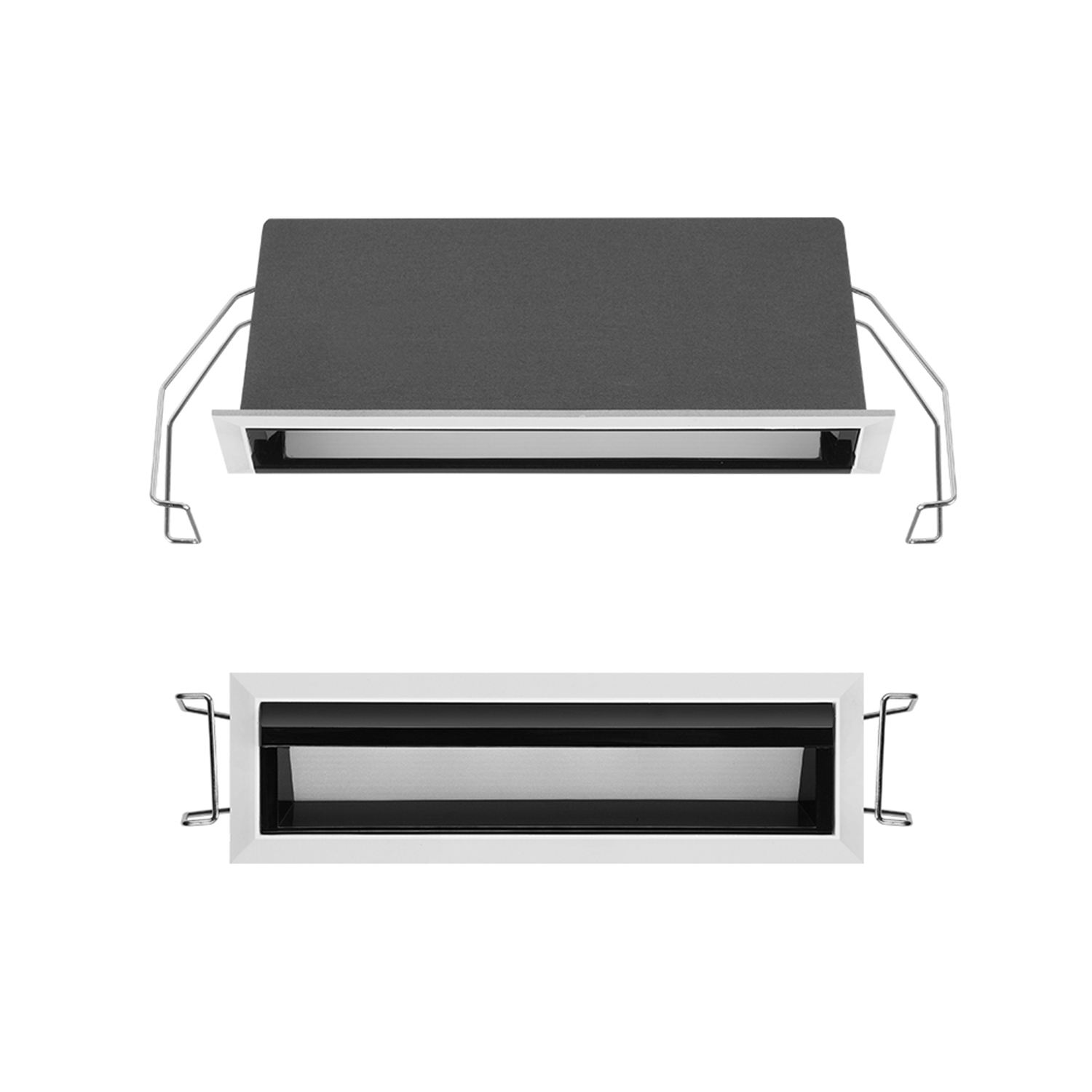

LED Recessed Wall Washer Linear Downlight -052A Series
| APPLICATION AREA
It could be widely used in
Residential: Home decoration, dining room, hallway; Architectural: Exhibition center, museum, concert hall, art gallery; Commercial: Shopping mall, jewelry shop, showcase, restaurant, hotel,Extensively applied in backlighting, concealed lighting, channel letter lighting. |  |

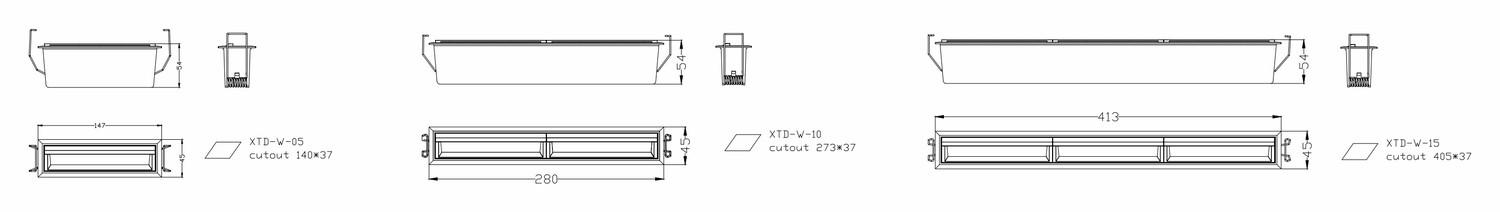

SIZE
Full Spectrum Lighting System Multiple Linear Light Modular Family
|

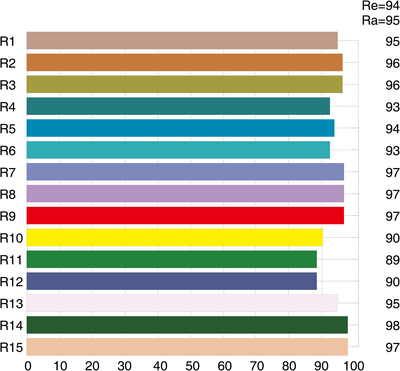

The lower the CRI, the more distorted of color will be. The higher the CRI, the stronger the color reduction. Our led lamp adopt world top class LED chip, CRI can be Ra≥80 or Ra≥90(also can custom made Ra≥97).
Application: 1. CRI 90-100 Accurate requirements for color places. 2. CRI 80-89 Correct judgements for color places. 3. CRI 60-79 Medium requirements for color places. 4. CRI 40-59 Lower requirements for color places.
|
|
| LED Iinear Wall Washer Recessed Iuminaires - Luminaire Arrangement |  |
|
|

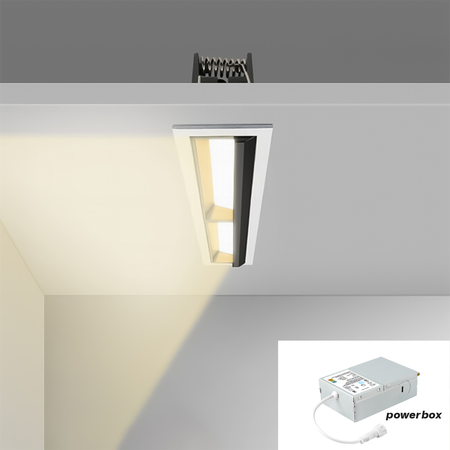

 | LED Linear Wall wash Light

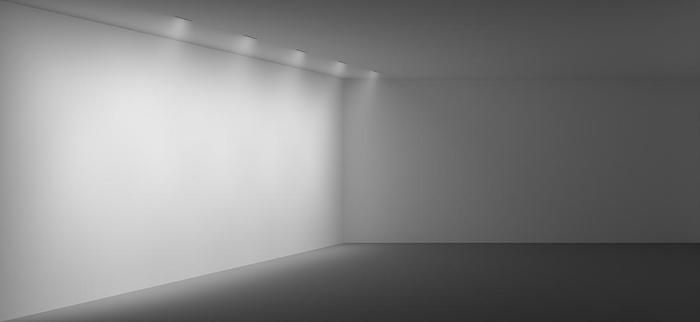

For uniform vertical illuminance, the distance (a) of Compact lens wallwasher from the wall should be around one third of the wall height (h). Arrangement: a = 1/3 x h |
For good longitudinal uniformity,
the spacing (d) of Compact lens wallwasher may be up to 1.3 times the offset from the wall (a). Arrangement: d ≤ 1.3 x a |
|
|
|
| 3000K | 4000K | 5000K |
SCENARIO
Model | LED | Watt (W) | Input Voltage | CCT(K) Lumious(lm)(±5%) | Beam Angle | CRI | IP level | Finshed | Size (MM) | Cutout
(MM) | Power Factor | Installation | Certification
|
3000K | 4000K | 5000K |
LBT-052A-5 | OSRAM 3030 | 10 | AC110V/AC220V | 750lm | 800lm | 850lm |
Wallwasher/ Flood 60° | Ra>80 | 44 | BK/SL/WH | 147x45x49 | 140x37 | >0.9 | Recessed | cETLus
Energy Star FCC * SAA * CE |
LBT-052A-10 | OSRAM 3030 | 20
| AC110V/AC220V | 1500lm | 1600lm | 1700lm |
Wallwasher/ Flood 60° | Ra>80 | 44 | BK/SL/WH | 280x45x49 | 273x37 | >0.9 | Recessed |
| LBT-052A-15 | OSRAM 3030 | 30 | AC110V/AC220V | 2250lm | 2400lm | 2550lm |
Wallwasher/ Flood 60° | Ra>80 | 44 | BK/SL/WH | 413x45x49 | 405x37 | >0.9 | Recessed |
