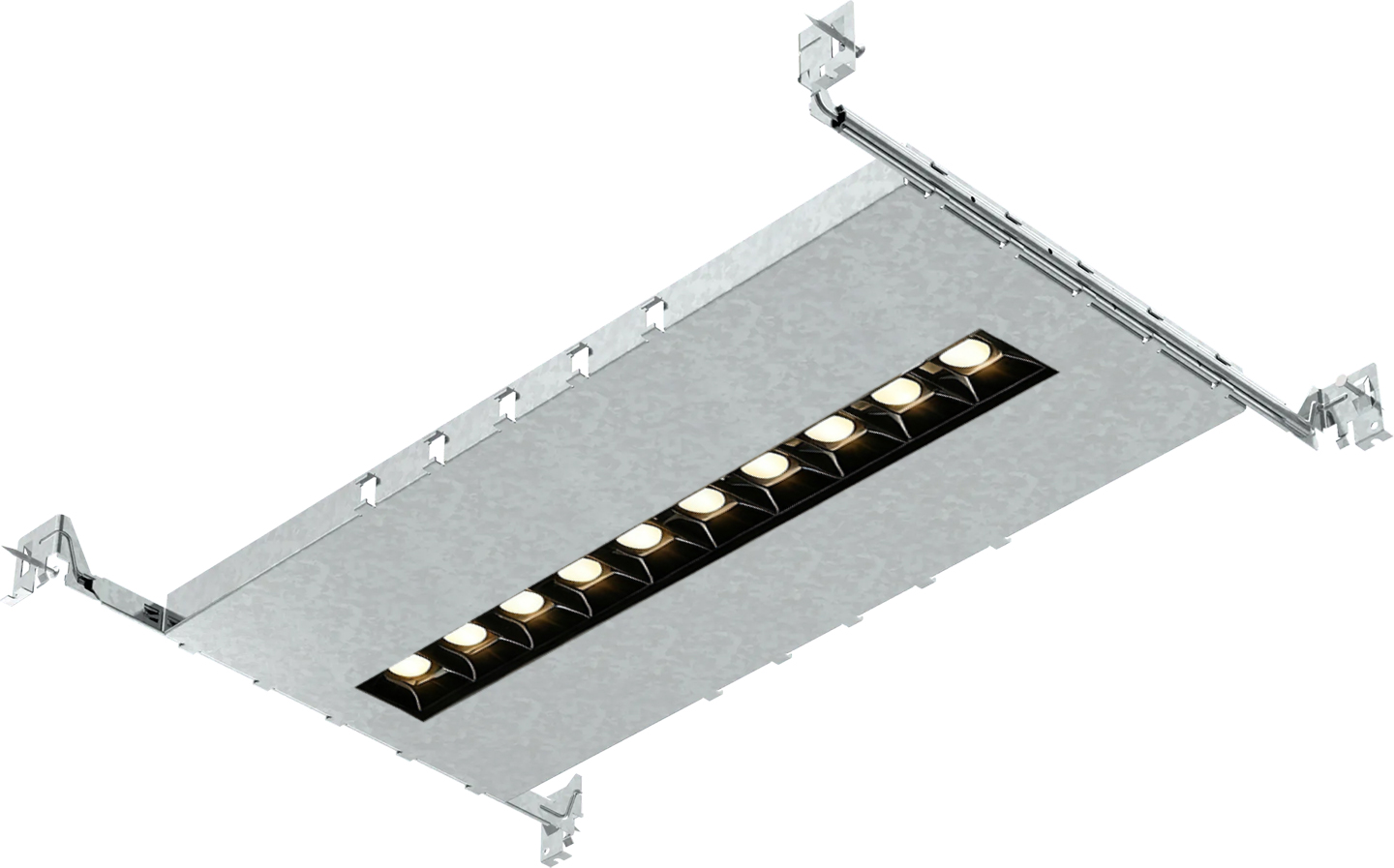

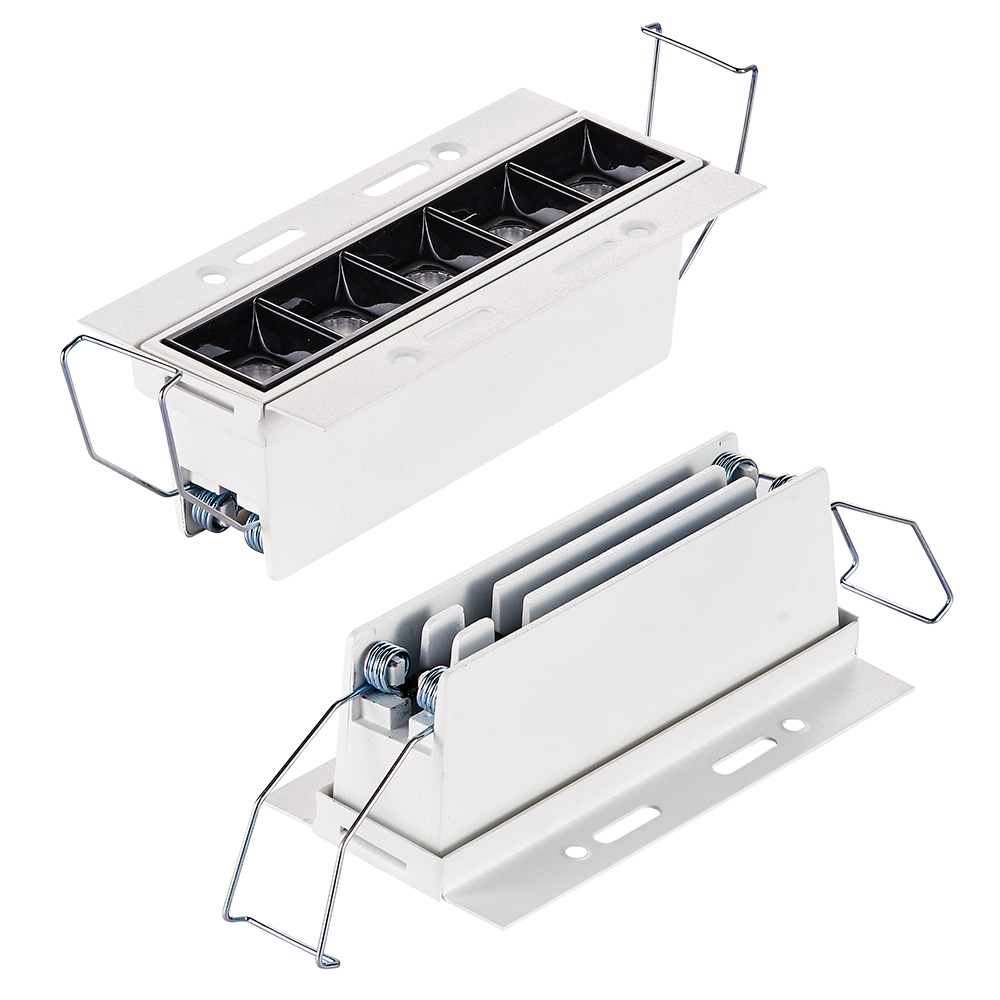

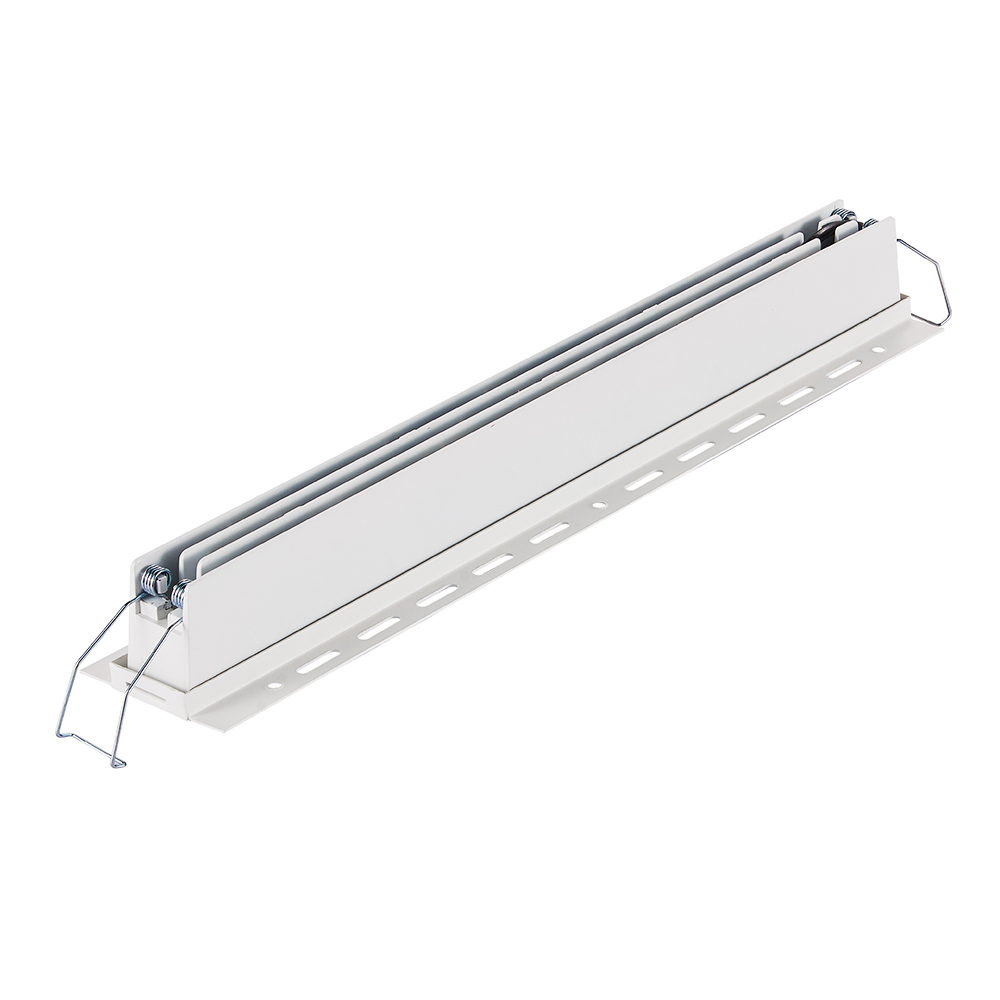

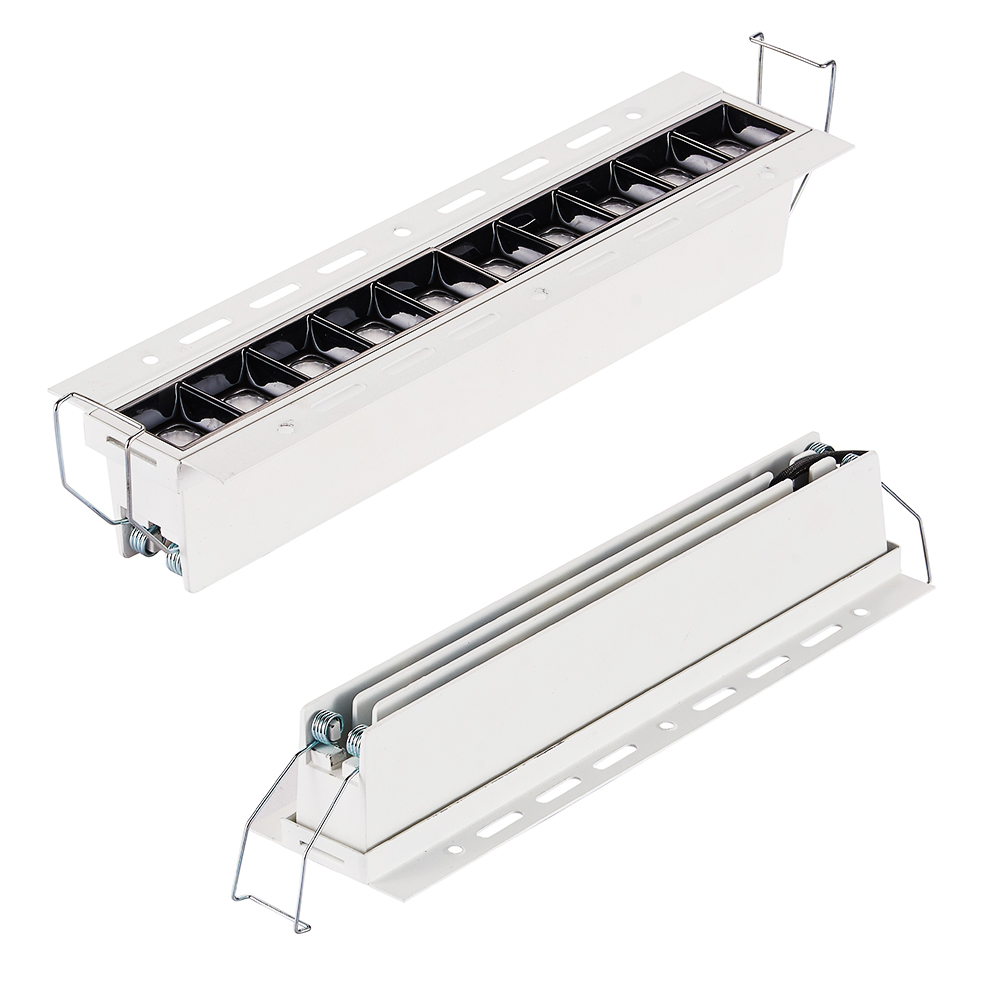

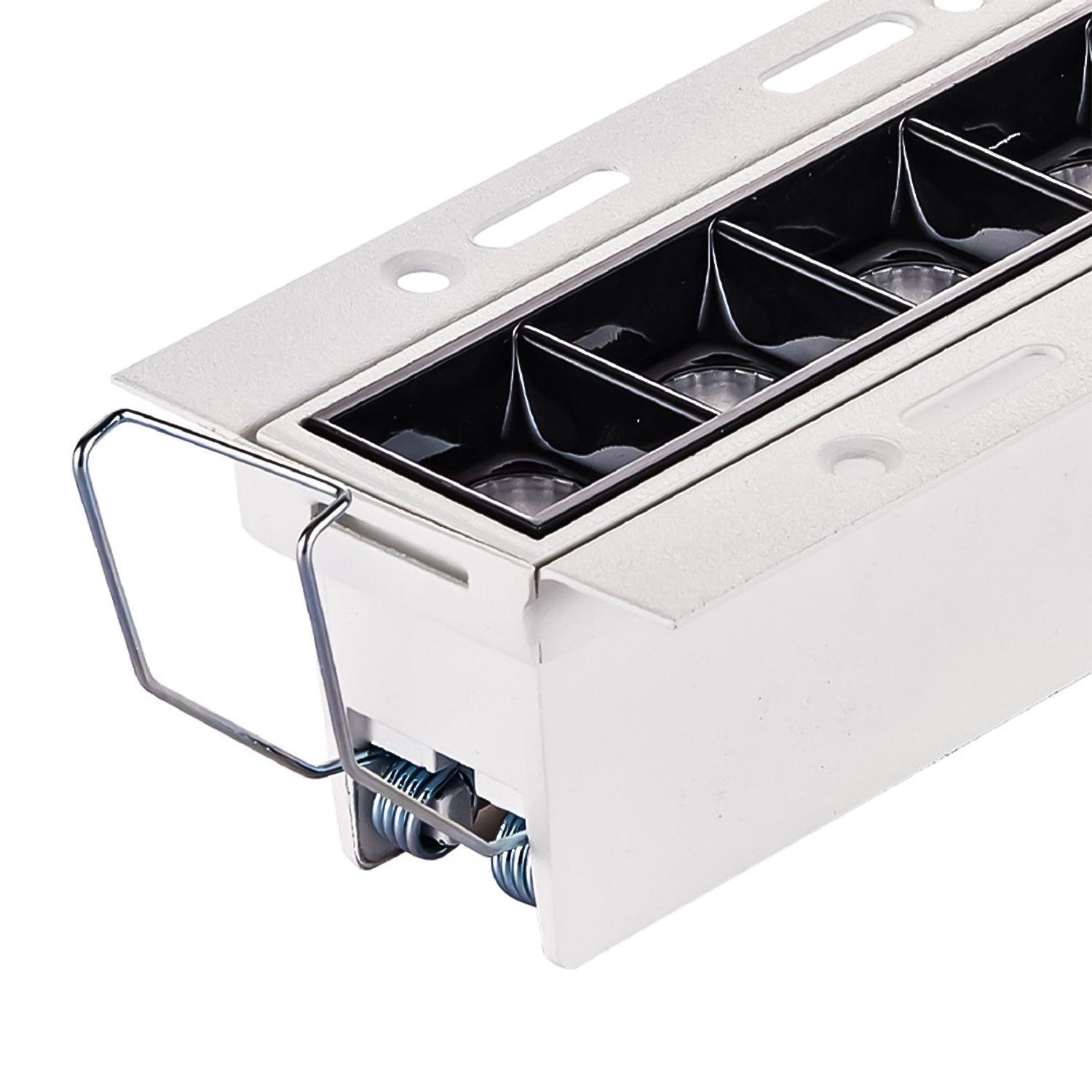

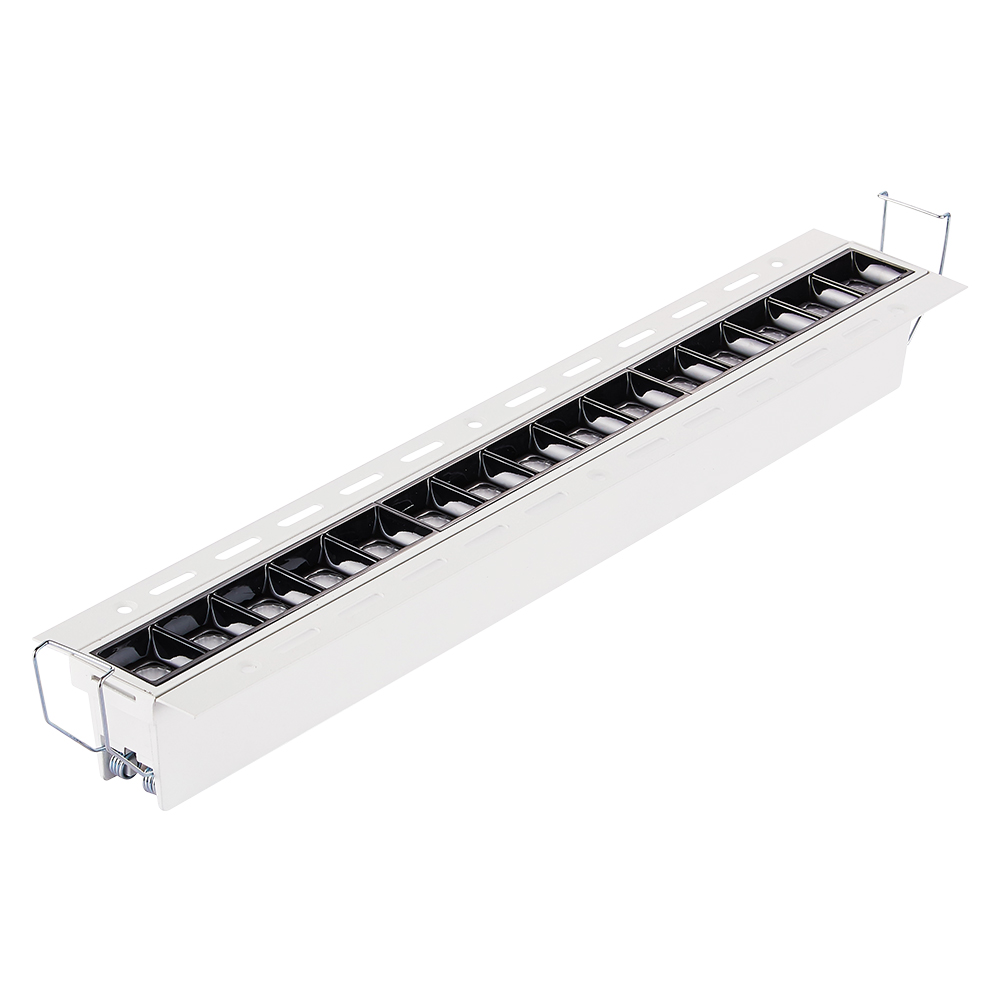

LED Recessed Linear Module Downlight-WBK Series

Full Spectrum Lighting System

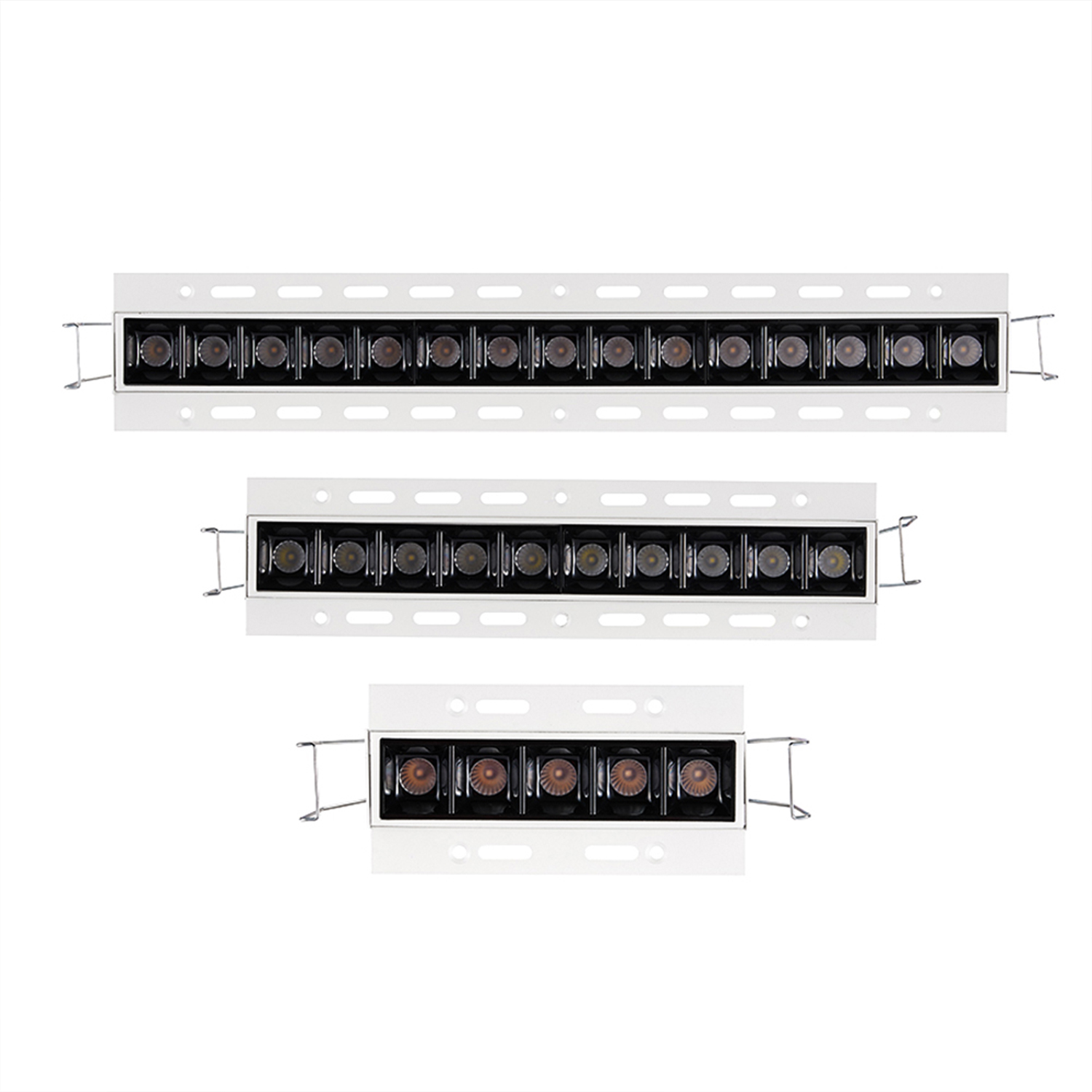

Multiple Linear Light Modular Family

The lower the CRI, the more distorted of color will be.

The higher the CRI, the stronger the color reduction.

Our led lamp adopt world top class LED chip, CRI can be Ra≥80 or Ra≥90(also can custom made Ra≥97).

Application:

1. CRI 90-100 Accurate requirements for color places.

2. CRI 80-89 Correct judgements for color places.

3. CRI 60-79 Medium requirements for color places.

4. CRI 40-59 Lower requirements for color places.

PARAMETER

Model

LED

Watt(W)

Input Voltage

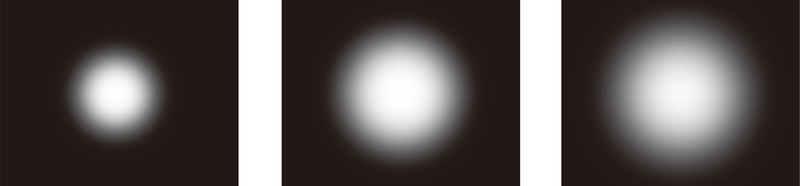

Beam Angle

CRI

Finshed

Size (MM)

Cutout (MM)

Installation

Warranty

Certification

LBT-WBK-01

OSRAM 3030

CREE 3535

2

AC110V/AC220V

15°/30°/45°

Ra>80

BK/SL/WH

L41*W72*H49

42*41

Recessed

5 Years

cETLus

Energy Star

CE

LBT-WBK-02

OSRAM 3030

CREE 3535

4

15°/30°/45°

Ra>80

BK/SL/WH

L71*W72*H49

72*41

Recessed

5 Years

LBT-WBK-05

OSRAM 3030

CREE 3535

10

15°/30°/45°

Ra>80

BK/SL/WH

L143*W72*H49

144*41

Recessed

5 Years

LBT-WBK-10

OSRAM 3030

CREE 3535

20

15°/30°/45°

Ra>80

BK/SL/WH

L276*W72*H49

277*41

Recessed

5 Years

LBT-WBK-15

OSRAM 3030

CREE 3535

30

15°/30°/45°

Ra>80

BK/SL/WH

L408*W72*H49

410*41

Recessed

5 Years
