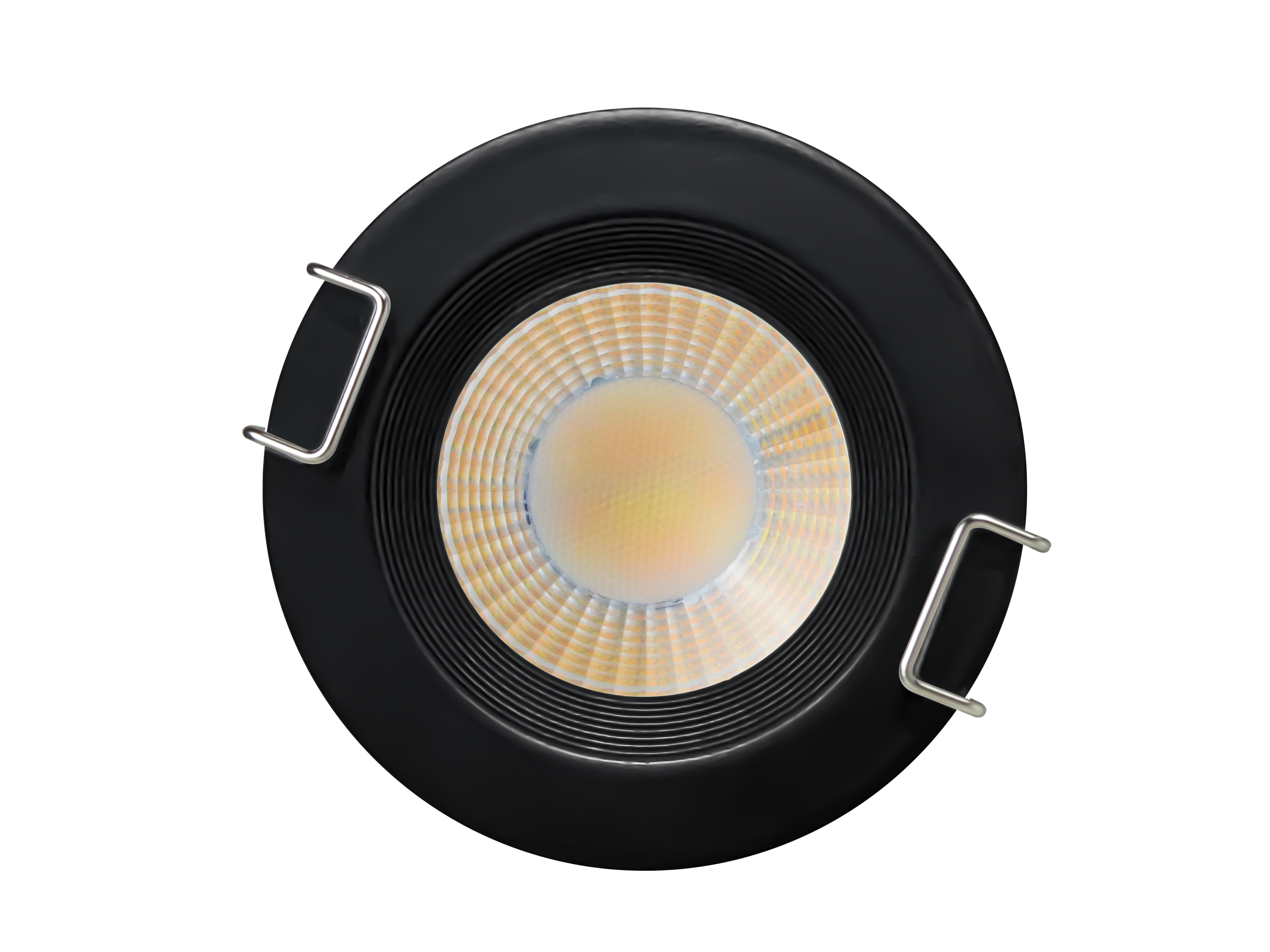

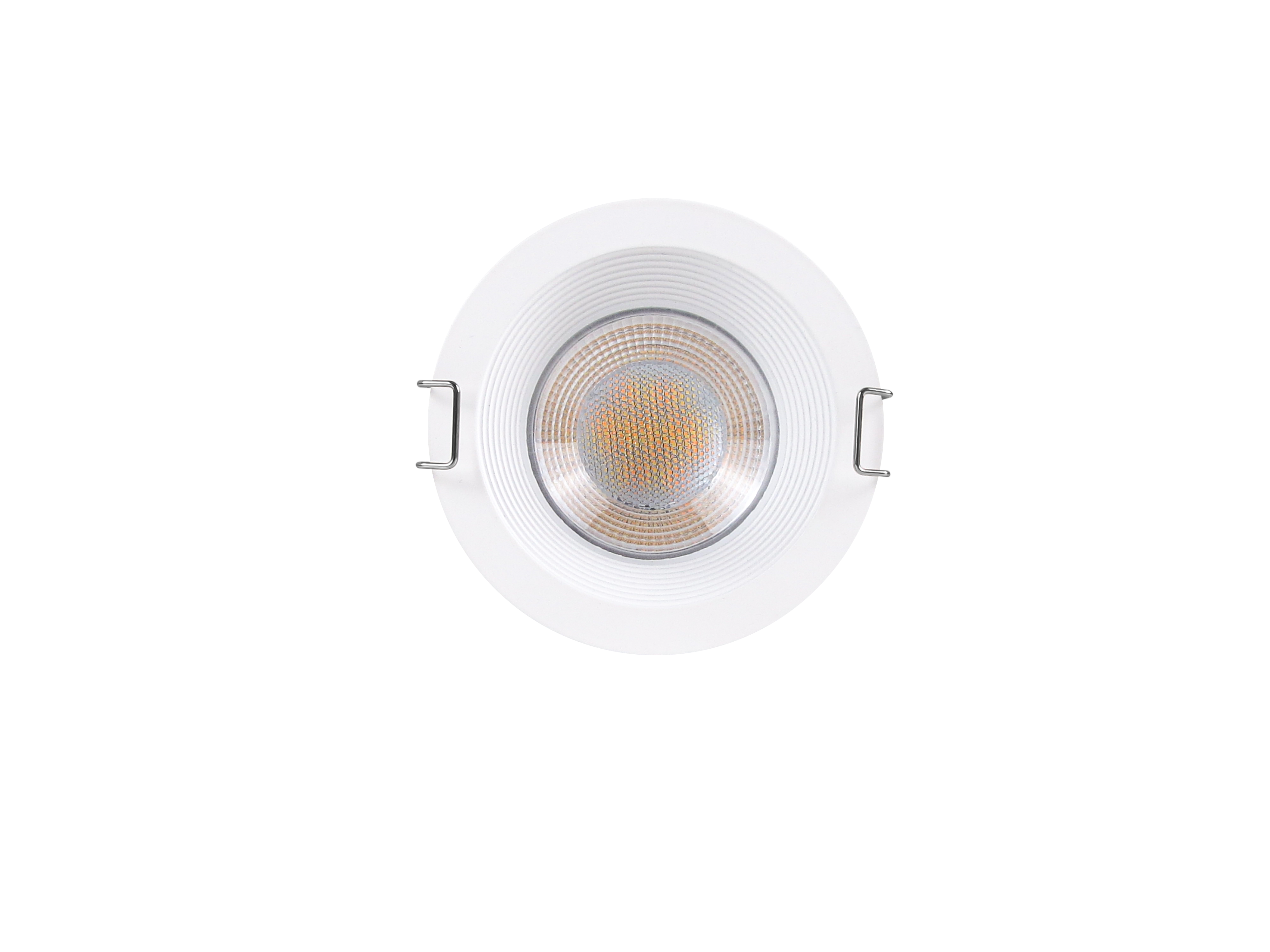

2”3”Anti-Glare LED Downlight

DESCRIPTION










Anti-Glare LED Downlight




    PRODUCT FAMILY










LED Downlight comes with various trims, reflectors, and optic lens It offers 1cct, 5cct, dim to warm and tunable white optionsType IC Rated -Approved for Direct Contact with Insulation Airtight ,Damp/Wet Location, Insulated and Non Insulated CeilingsExternal Driver Inside Connection Box -No Junction Box NeededQuick Installation for Remodel and New constructionsTriac Dimmable with

most CL dimmers 120V input0-10V Dimmable Option with 100V to 277V/347V input.




              SIZE&WATTAGE











  • WARRANTY AND LED LIFE

    50,000-hour LED life

  • LED SOURCE COLORS

    Warm Dim: 3000K-1800K

    Tunable White: 2700K-6500K

    1-CCT : 2700K,3000K, 3500K,4000K,5000K

    5-CCT : 2700K-3000K-3500K-4000K-5000K

  • DIMMABLE

    Triac/ELV Dimmable with most CL dimmers 120V input

    0-10V Dimmable Option with 120V to 277V/347V input

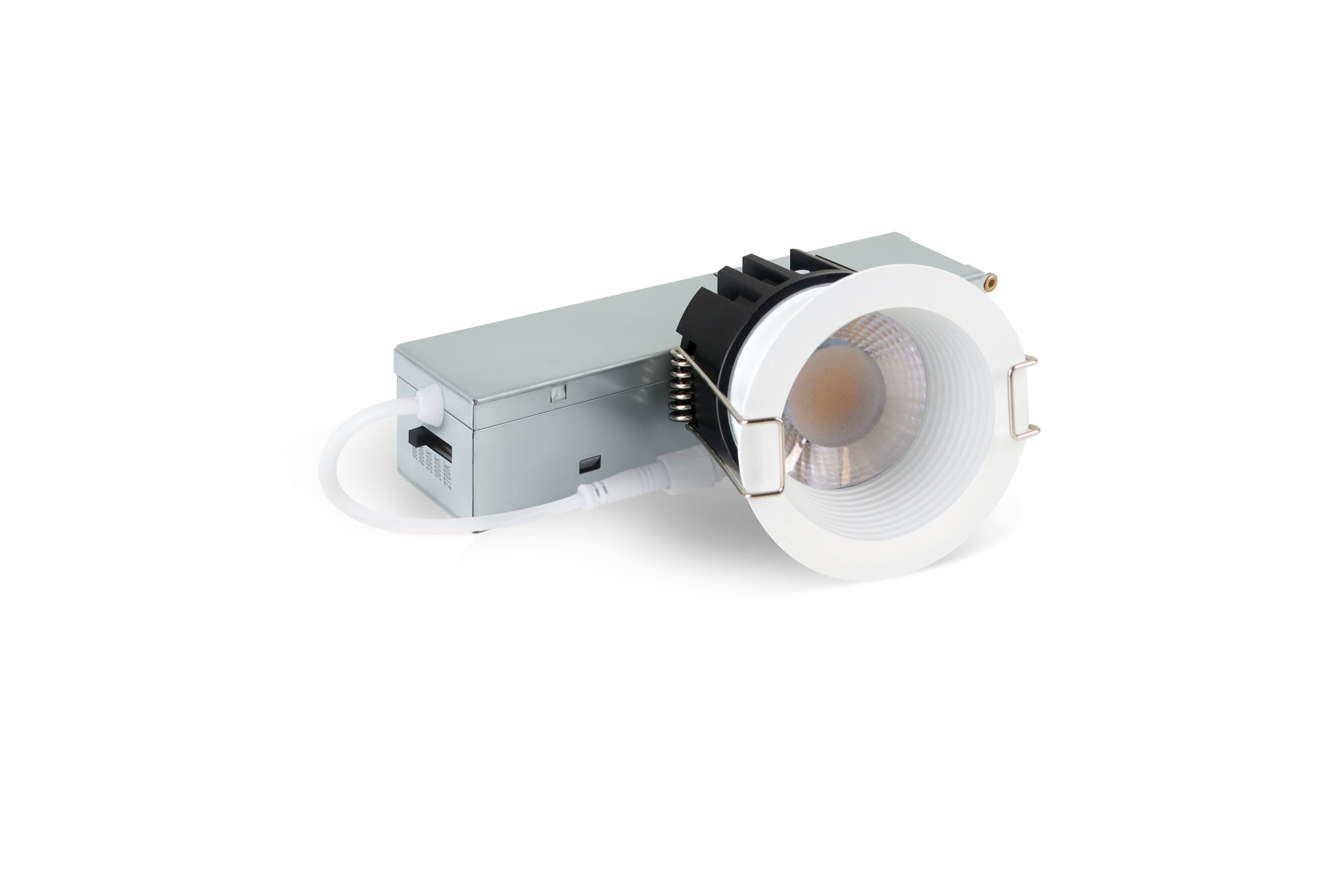

  • EASY INSTALLATION

    Each unit includes a junction box with driver,

    pressure-fit spring clips and Quick

    Connect wire   connectors for fast and easy installation

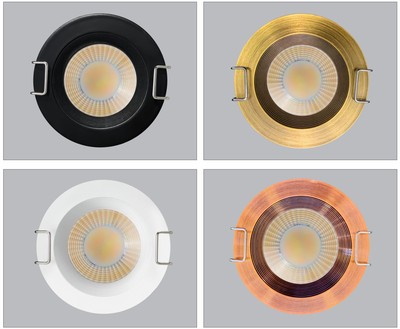

              TRIM OPTIONS





    PRODUCT DETAILS








Item No.
MountingVoltageWattageCRIColor TempOpticsDriverOptionsSize   (mm)Cutout   (mm)Trim Finish
LBT-HBLX-XX
Remodel;
New Construction
120Vac

100-277Vac

100-347Vac

220-240Vac

8W80Ra+
90Ra+

3CCT

5CCT

DTW

2700K-6500K
15°
24°
36°
55°
Triac Dim.

0-10V Dim.

Dali Dim.

On/Off only

Standard

EM Backup

65x5552-58White

Black

Silver

Brush Nickel

12W85x6072-78
