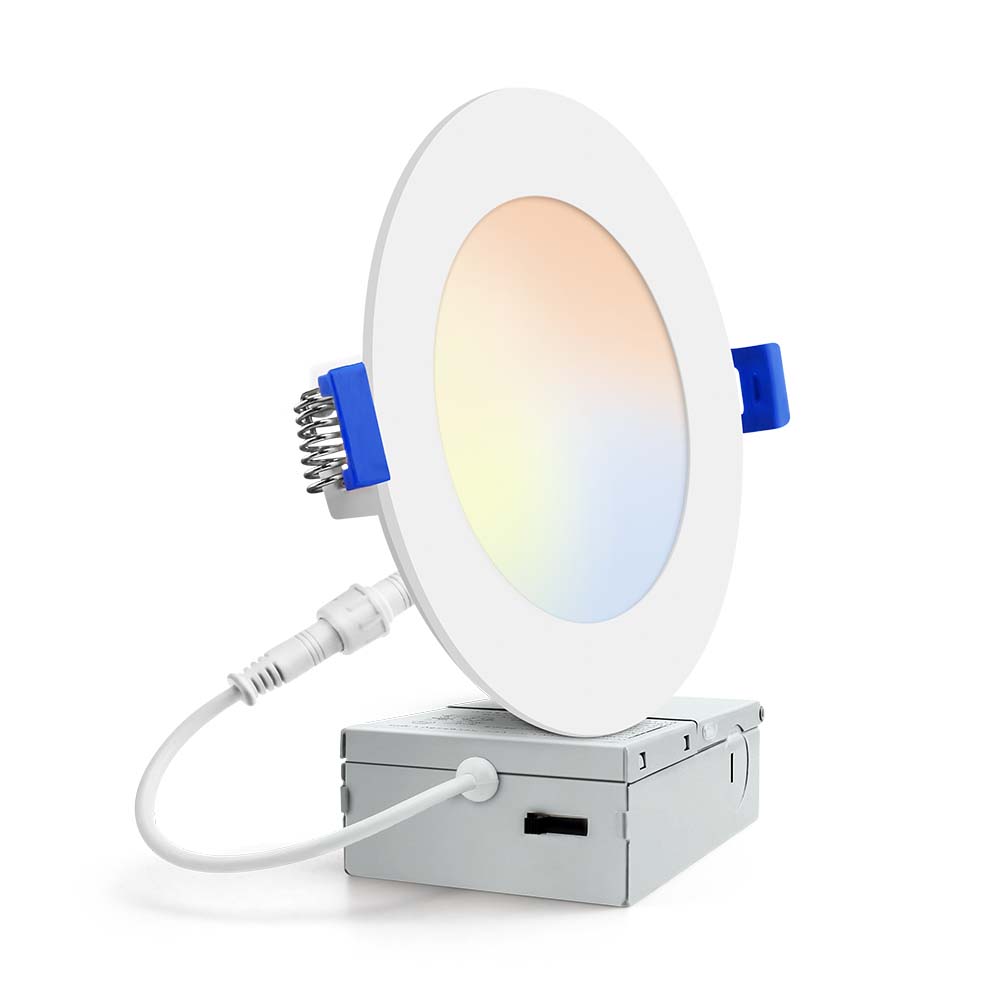

Flat Trim ETL Led Panel Light

Body

Durable airtight aluminum body with etched white

PMMA diffuser lens for low glare.

Mounting

Includes two spring loaded clips to attached to

any ceiling material.

Environment

• Suitable for wet locations.

• Suitable for insulated ceiling applications

LED Characteristics

This general application light fixture features 9 watt,13 watt LED module that

maintains uniform intensity producing up to 800 lumens; with a typical CRI of 80/90.Available in 3000K, 4000K or 5000K colour temperature.

LED Driver

Extruded aluminum hardwire box with 300mA dimmable class

II electronic LEDdriver with AC90-130V input. Includes an 6"

plenum rated FT6 wire with DC 2.1 connector from driver to fixture.

Description

The Super thin led panel light is for recess retrofit application as well.It is a high-performance,easy to install residential and commercial grade downlight solution that offers super high output,energy-efficiency and streamlined design. Suitable for wet locations.

Dimming

100%-5% dimming capability. This fixture is compatible with industry

standard TRIAC/ELV dimmers (contact factory for listing of compatible dimmers).

Quick Connect push-in terminals

Three“Quick connect” push-in terminals for fast and easy wiring.

Beam Spread

The fixture lens provides 110° beam spread.

Operating Temperature

-20°C~40°C (-4°F~104°F)

PARAMETER

APPLICATIONS
