Body Durable airtight aluminum body with etched white PMMA diffuser lens for low glare. | Mounting
Includes two spring loaded clips to attached to any ceiling material. | Environment • Suitable for wet locations. • Suitable for insulated ceiling applications |
LED Characteristics
This general application light fixture features a 9/13 watt LED module that maintains uniform intensity producing up to 765-1105 lumens; with a typical CRI of 80/90.Available in 3000K, 4000K or 5000K colour temperature. | LED Driver
Extruded aluminum hardwire box with 300mA dimmable class II electronic LEDdriver with 120V/220AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture. |
Description The Super thin led panel light is for recess retrofit application as well.It is a high-performance,easy to install residential and commercial grade downlight solution that offers super high output,energy-efficiency and streamlined design. Suitable for wet locations. |
Dimming
100%-5% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (contact factory for listing of compatible dimmers). | Quick Connect push-in terminals
Three“Quick connect” push-in terminals for fast and easy wiring. |
Beam Spread
The fixture lens provides 100° beam spread. | Operating Temperature
-20°C~40°C (-4°F~104°F) |
Type | Model | LED | Watt (W) | Input Voltage | Efficacy lm/w
| Beam Angle | CRI | Finshed | Size (MM) | Cutout(MM) | Dimming | Warranty | Certification
|
|
| 4 inch | LBT-CBFH-09 | SMD2835
| 9 | AC120V/AC220V | 90-100 | 110° | 80Ra/90Ra | WH/BK/SL | L120*W120*H12 | Φ105
| Yes | 5 Years | cETLus l Energy Star FCC l SAA l CE
|
| 6 inch | LBT-CBFH-13 | SMD2835 | 13 | AC120V/AC220V | 90-100 | 110° | 80Ra/90Ra | WH/BK/SL | L172*W172*H12 | Φ155 | Yes | 5 Years |
REGRESSED FIRE RATED LED DOWNLIGHT
KEY FEATURES

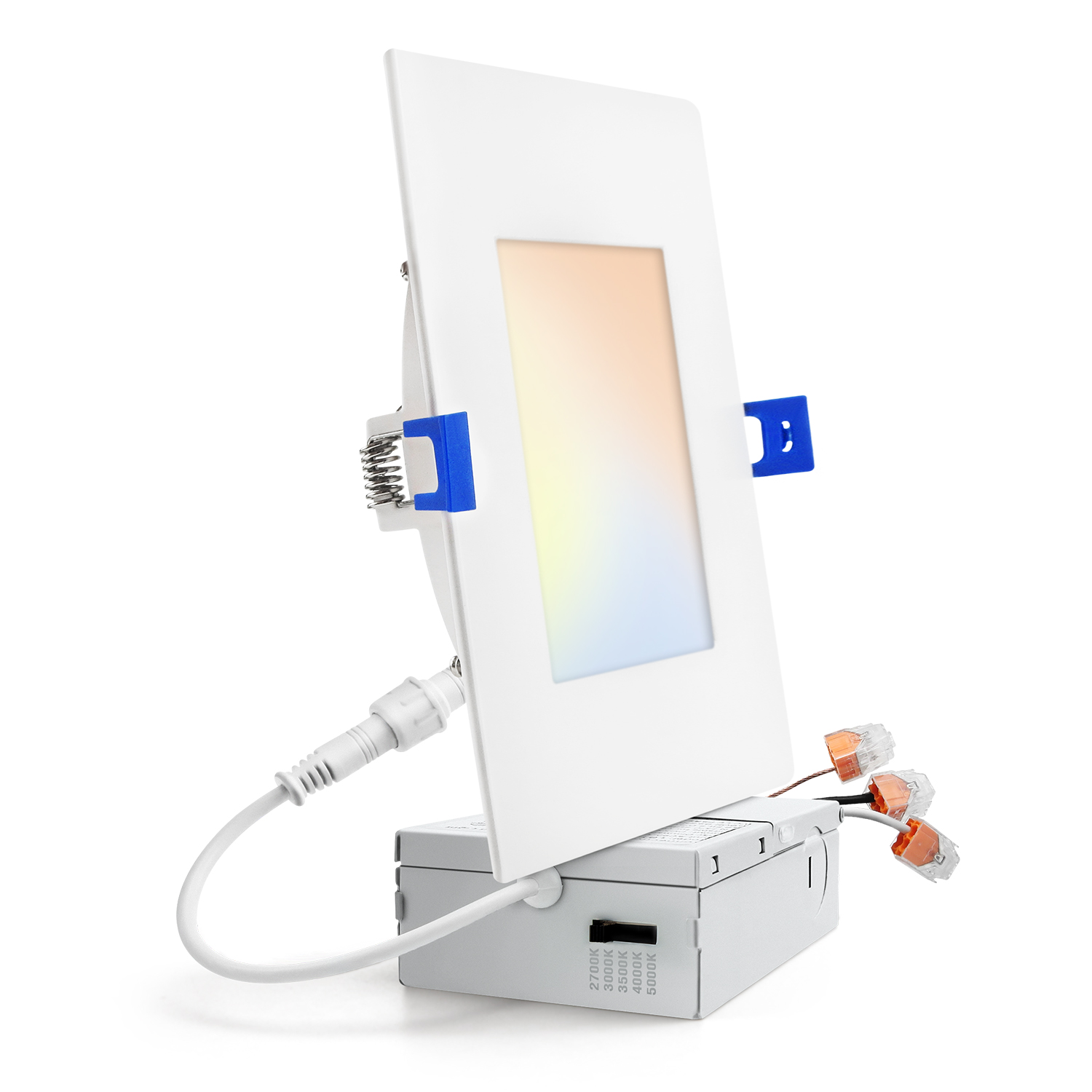

4'’ 6'’ 8'’ Slim Square LED Downlight
Super thin 1/2 inch Deep – Install Directly Under Ceiling Joists Selectable: 2700K | 3000K | 3500K | 4000K | 5000K Type IC Rated -Approved for Direct Contact with Insulation Airtight ,Damp Location, Insulated and Non Insulated Ceilings External Driver Inside Connection Box -No Junction Box Needed Quick Installation for Remodel and New constructions Triac Dimmable with most CL dimmers 120V input 0-10V Dimmable Option with 100V to 277V/347V input |  |
KEY FEATURES
|
