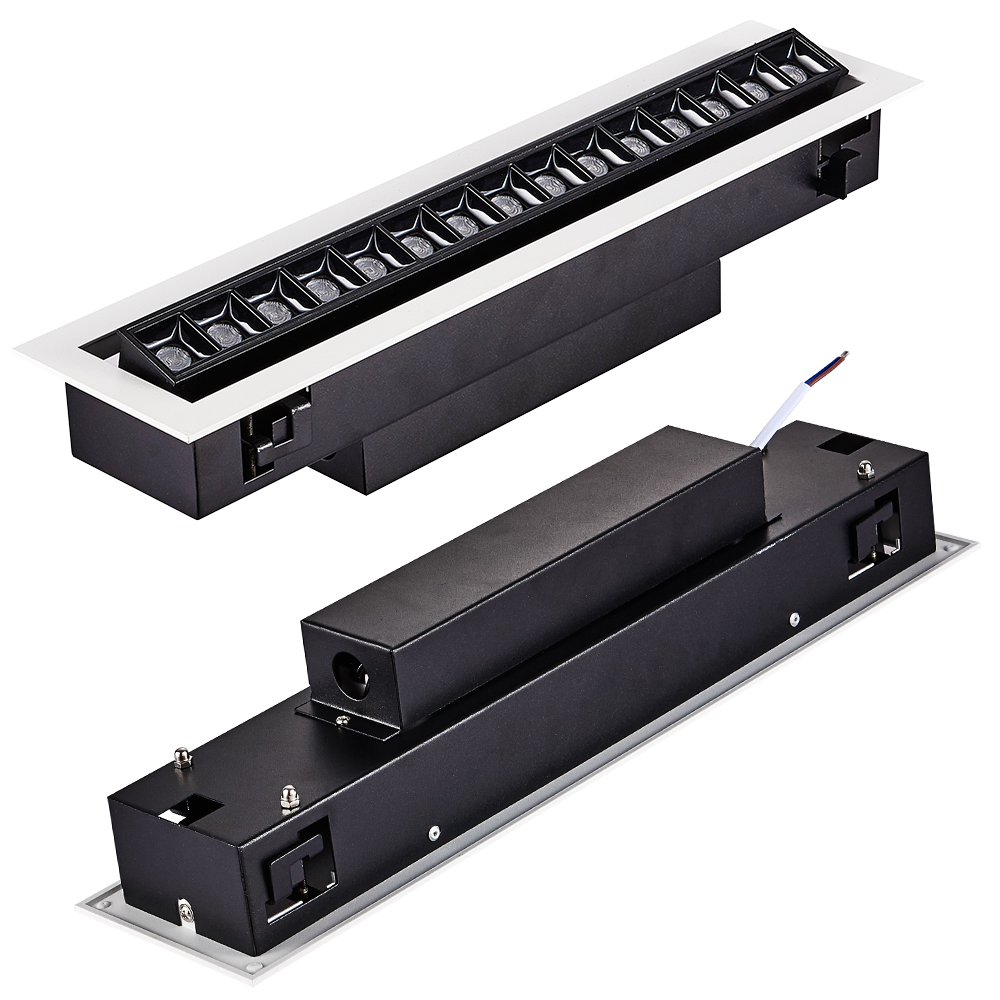

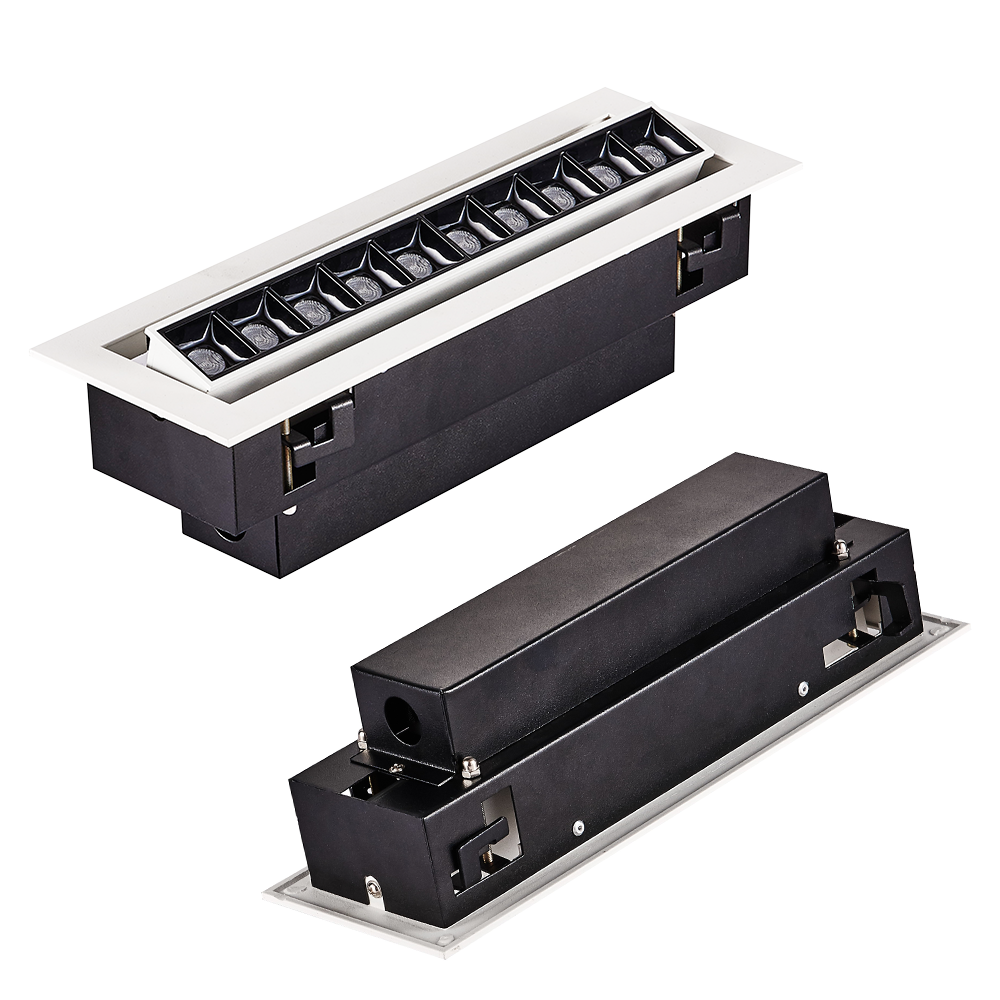

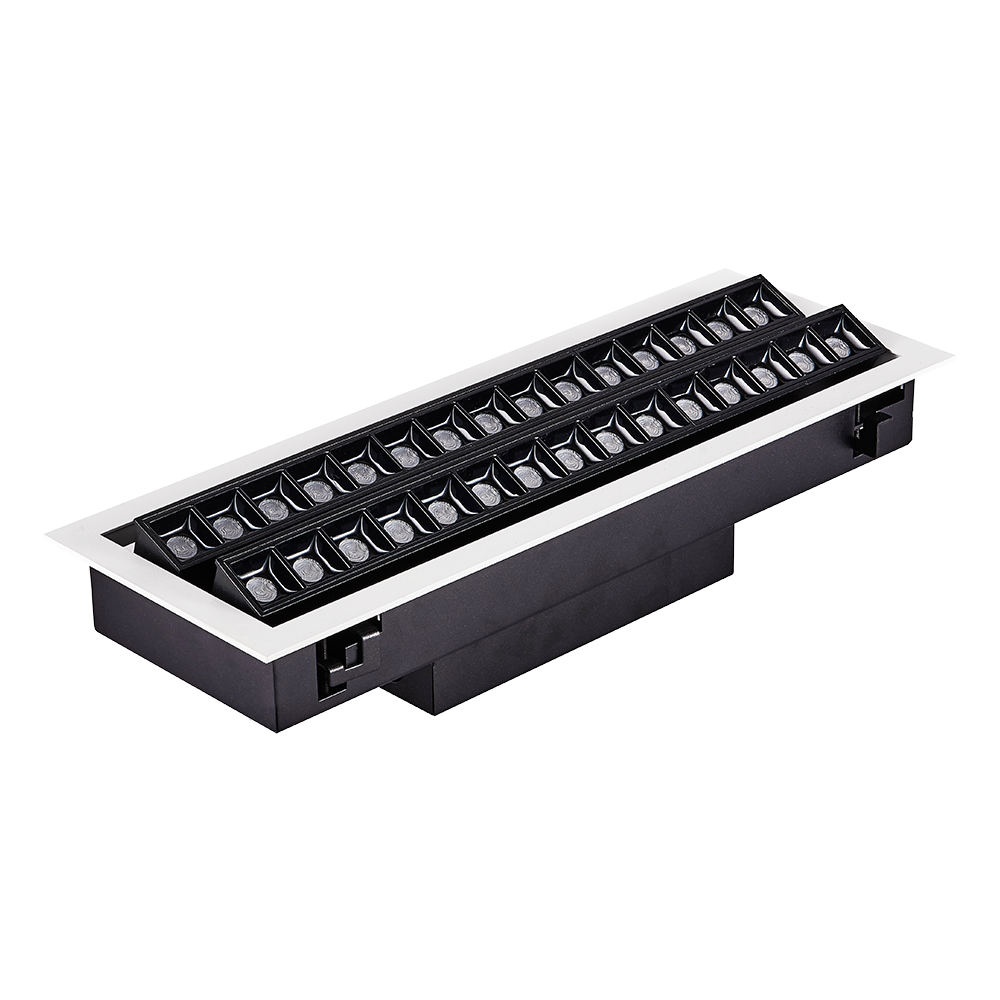

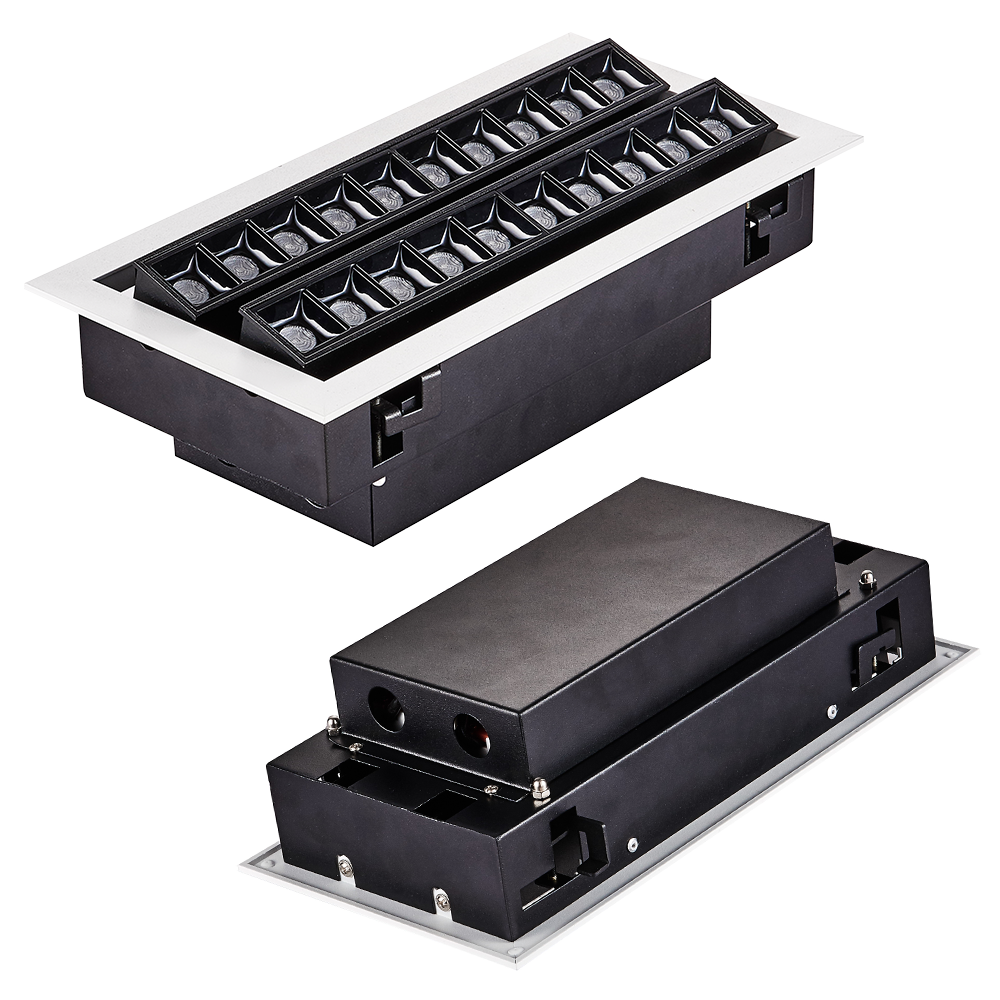

Adjustable Led Linear Downlight-GSDX10 Series

Full Spectrum Lighting System

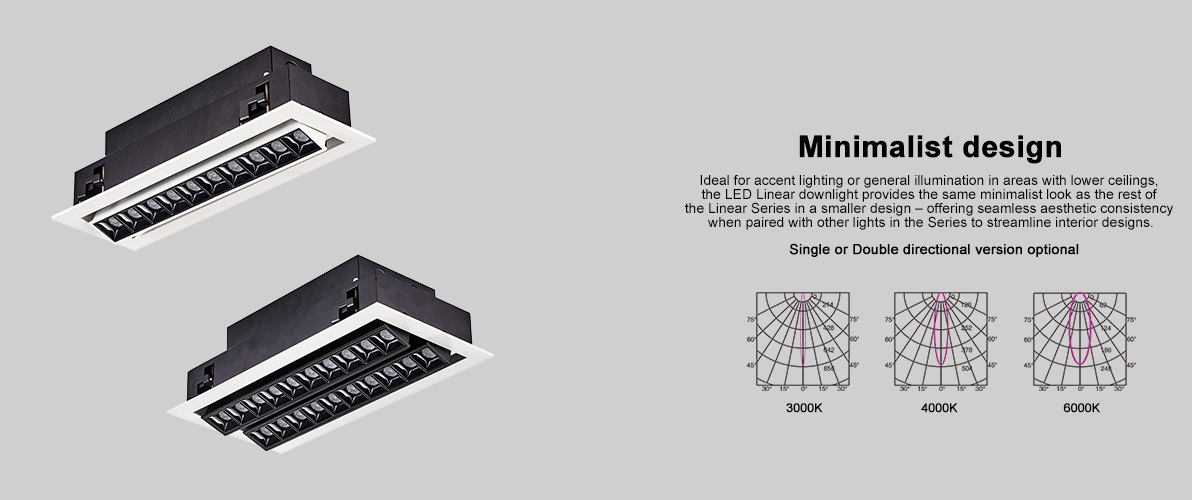

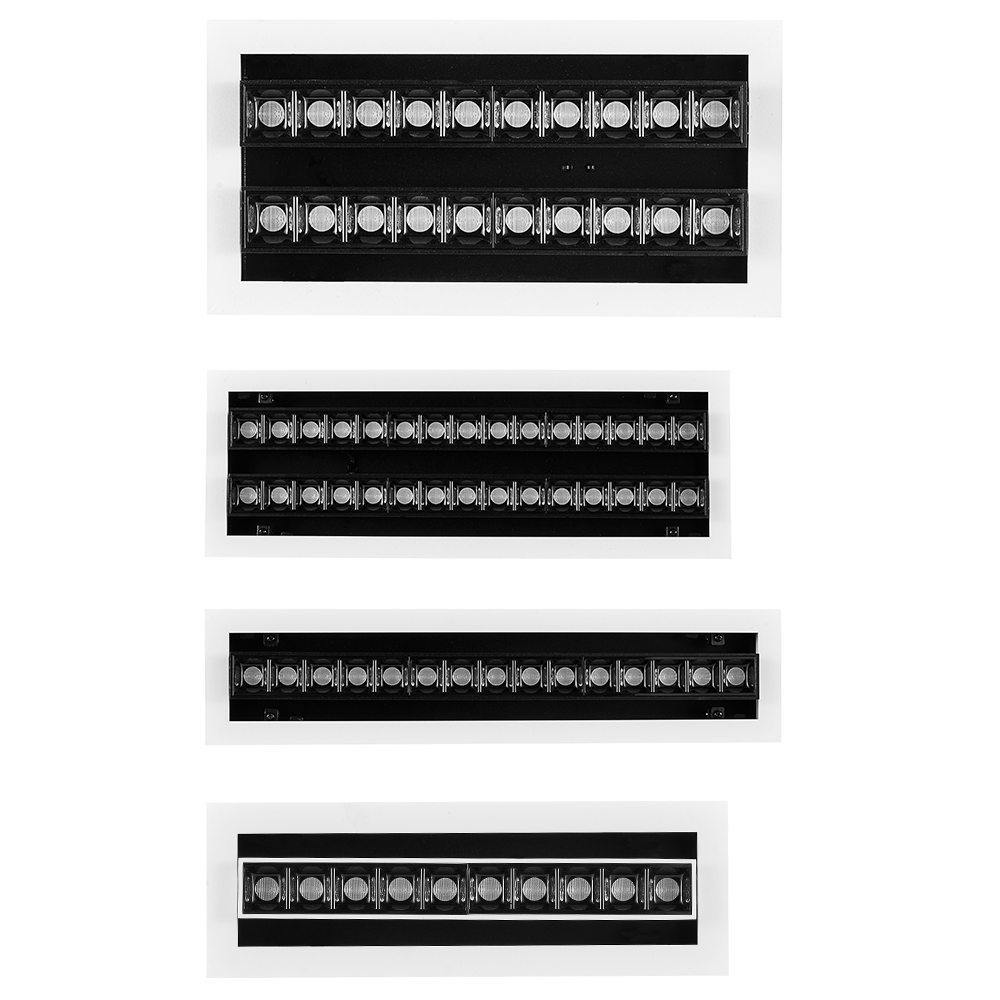

Multiple Linear Light Modular Family

The lower the CRI, the more distorted of color will be.

The higher the CRI, the stronger the color reduction.

Our led lamp adopt world top class LED chip, CRI can be Ra≥80 or Ra≥90(also can custom made Ra≥97).

Application:

1. CRI 90-100 Accurate requirements for color places.

2. CRI 80-89 Correct judgements for color places.

3. CRI 60-79 Medium requirements for color places.

4. CRI 40-59 Lower requirements for color places.

Our lamp have more kinds of beam angles and Color temperature, meeting the different demands for lighting.

                    15°                                                             30°                                                      45°

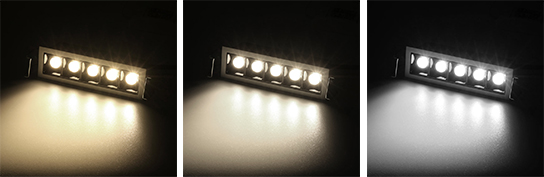

                    3000K                                                  4000K                                                 5000K

Lens options for different light output.

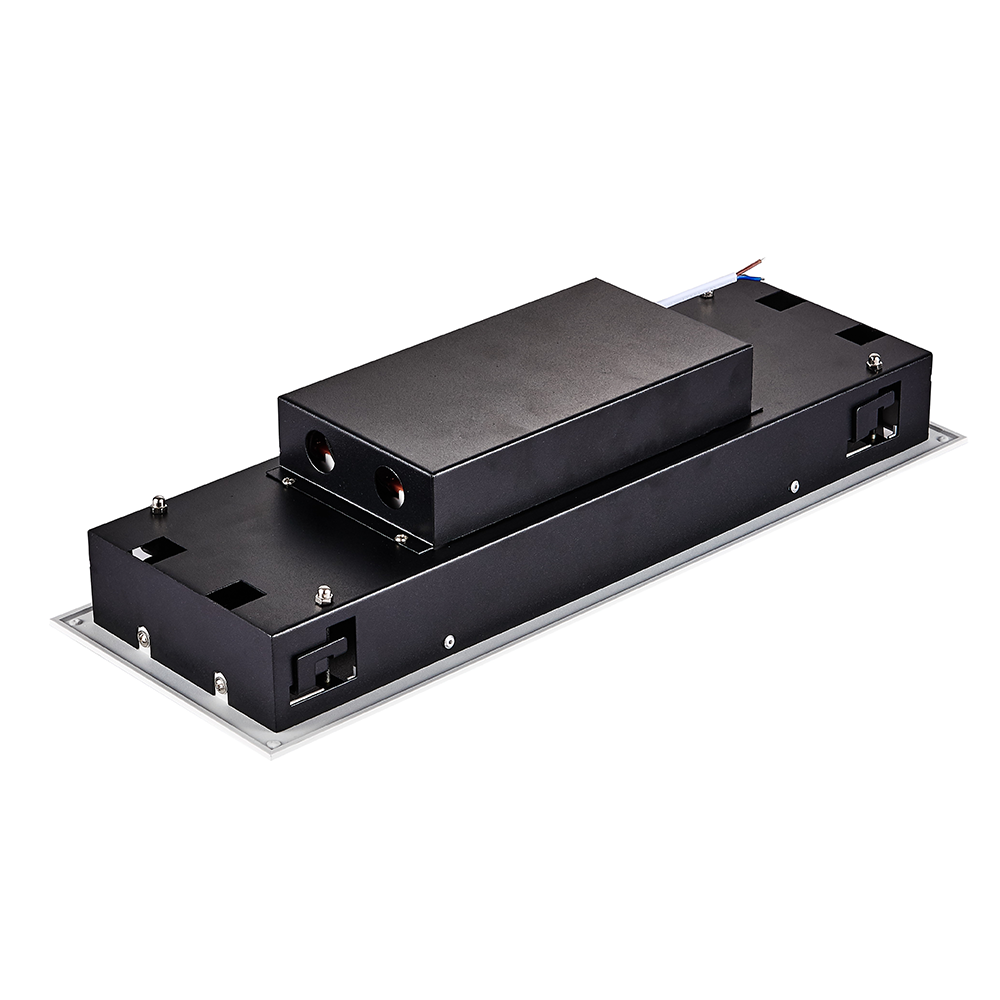

power box

It could be widely used in

Residential: Home decoration, dining room, hallway;

Architectural: Exhibition center, museum, concert hall, art gallery;

Commercial: Shopping mall, jewelry shop, showcase, restaurant,

hotel,Extensively applied in backlighting, concealed lighting,

channel letter lighting.

SERIES PARAMETER

Model

LED

Watt

(W)

Input

Voltage

CCT(K)

Lumious(lm)(±5%)

Beam

Angle

CRI

IP

level

Finshed

Size

(MM)

Cutout

(MM)

Power

Factor

Installation

Certification

3000K

4000K

5000K

LBT-GSDX10-1

OSRAM 3030

CREE 3535

20

AC110V/AC220V

1500lm

1600lm

1700lm

15°/30°/45°

55°*55°/40°*65°

Ra>80

44

BK/SL/WH

311x104x96

295x90

>0.9

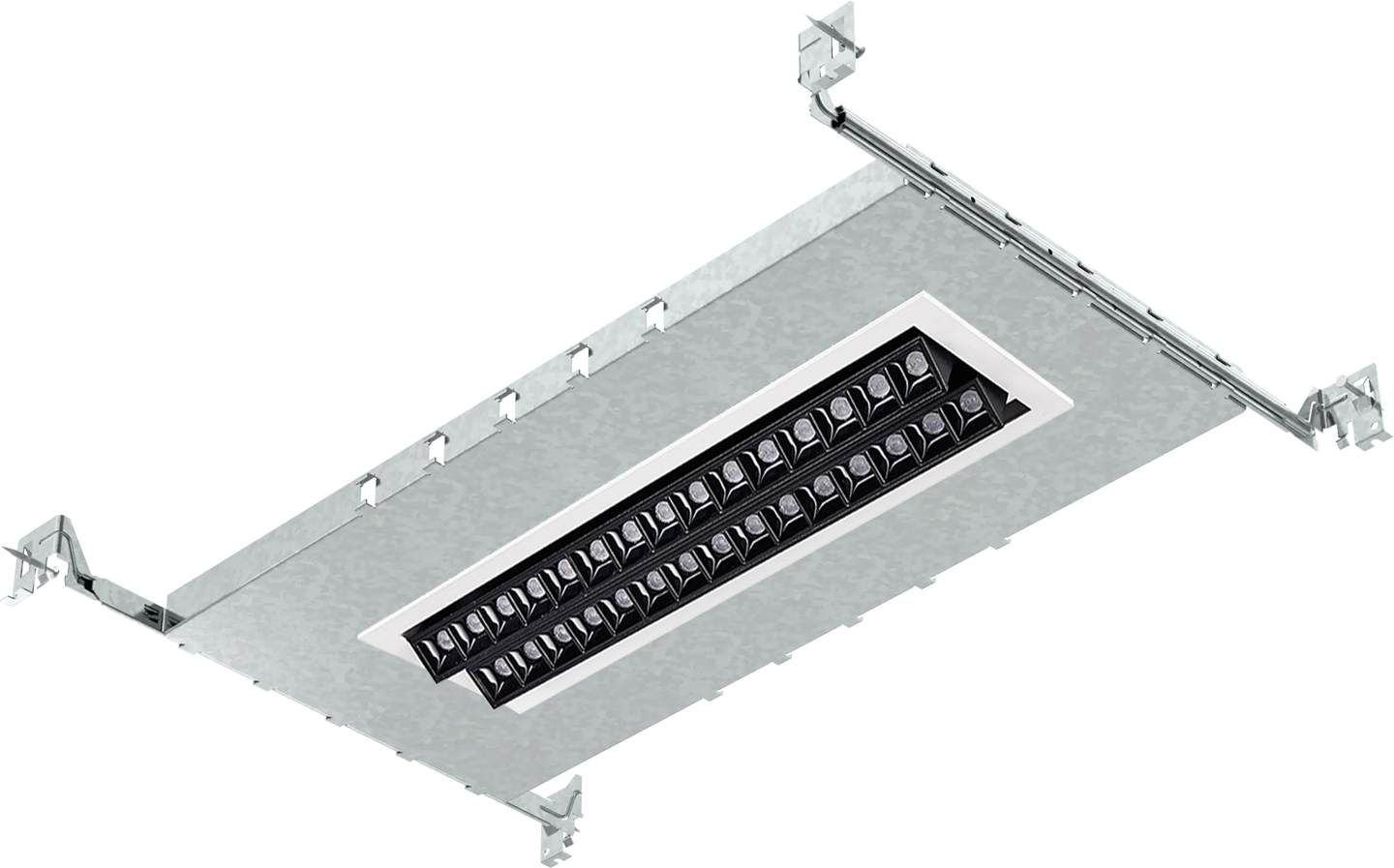

Recessed

cETLus

Energy Star

FCC * SAA * CE

LBT-GSDX15-1

OSRAM 3030

CREE 3535

30

AC110V/AC220V

2250lm

2400lm

2550lm

15°/30°/45°

55°*55°/40°*65°

Ra>80

44

BK/SL/WH

444x104x96

425x90

>0.9

Recessed

LBT-GSDX10-2

OSRAM 3030

CREE 3535

40

AC110V/AC220V

3200lm

3400lm

3600lm

15°/30°/45°

55°*55°/40°*65°

Ra>80

44

BK/SL/WH

311x159x96

295x145

>0.9

Recessed

OSRAM 3030

CREE 3535

60

AC110V/AC220V

4800lm

5100lm

5400lm

15°/30°/45°

55°*55°/40°*65°

Ra>80

44

BK/SL/WH

444x159x96

425x145

>0.9

Recessed
