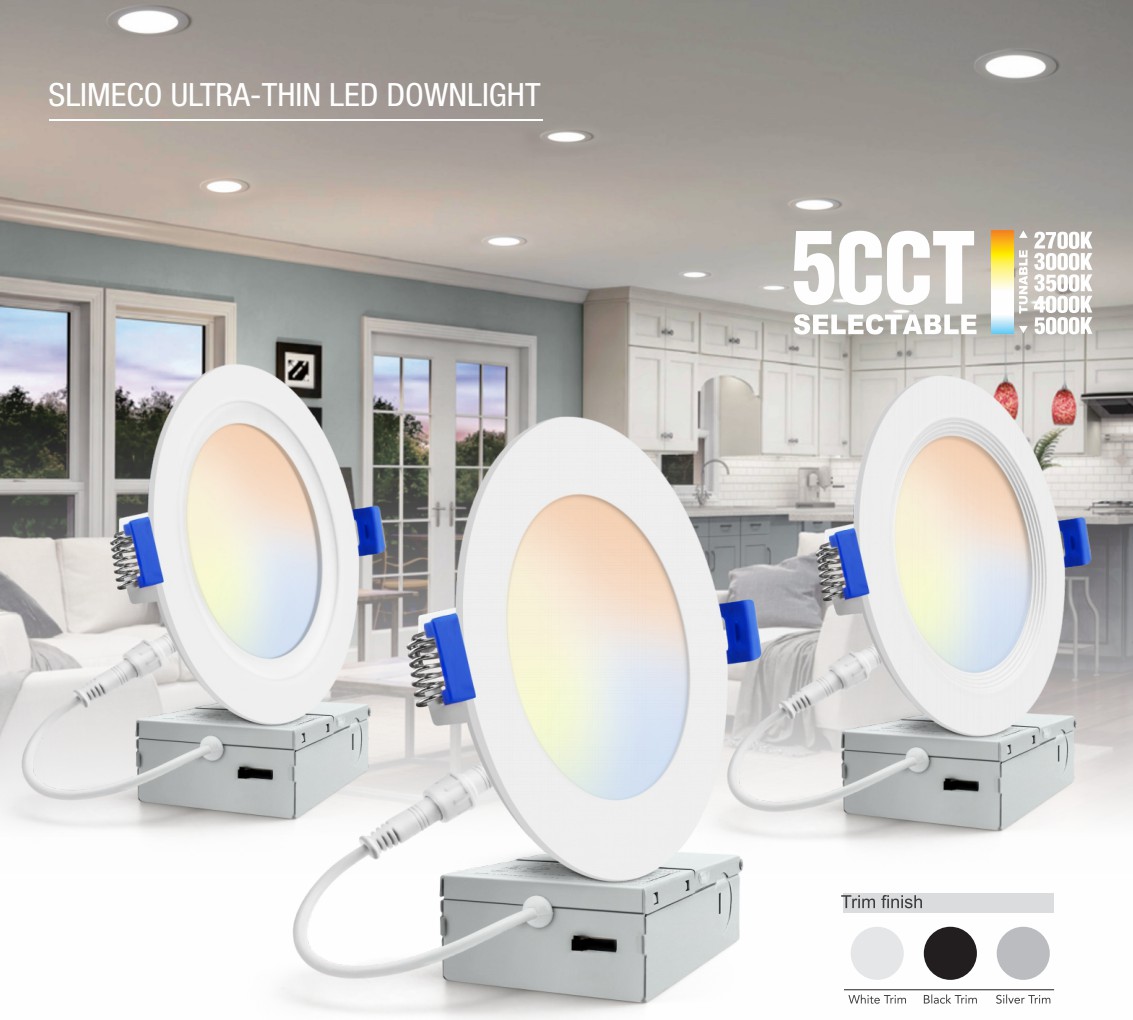

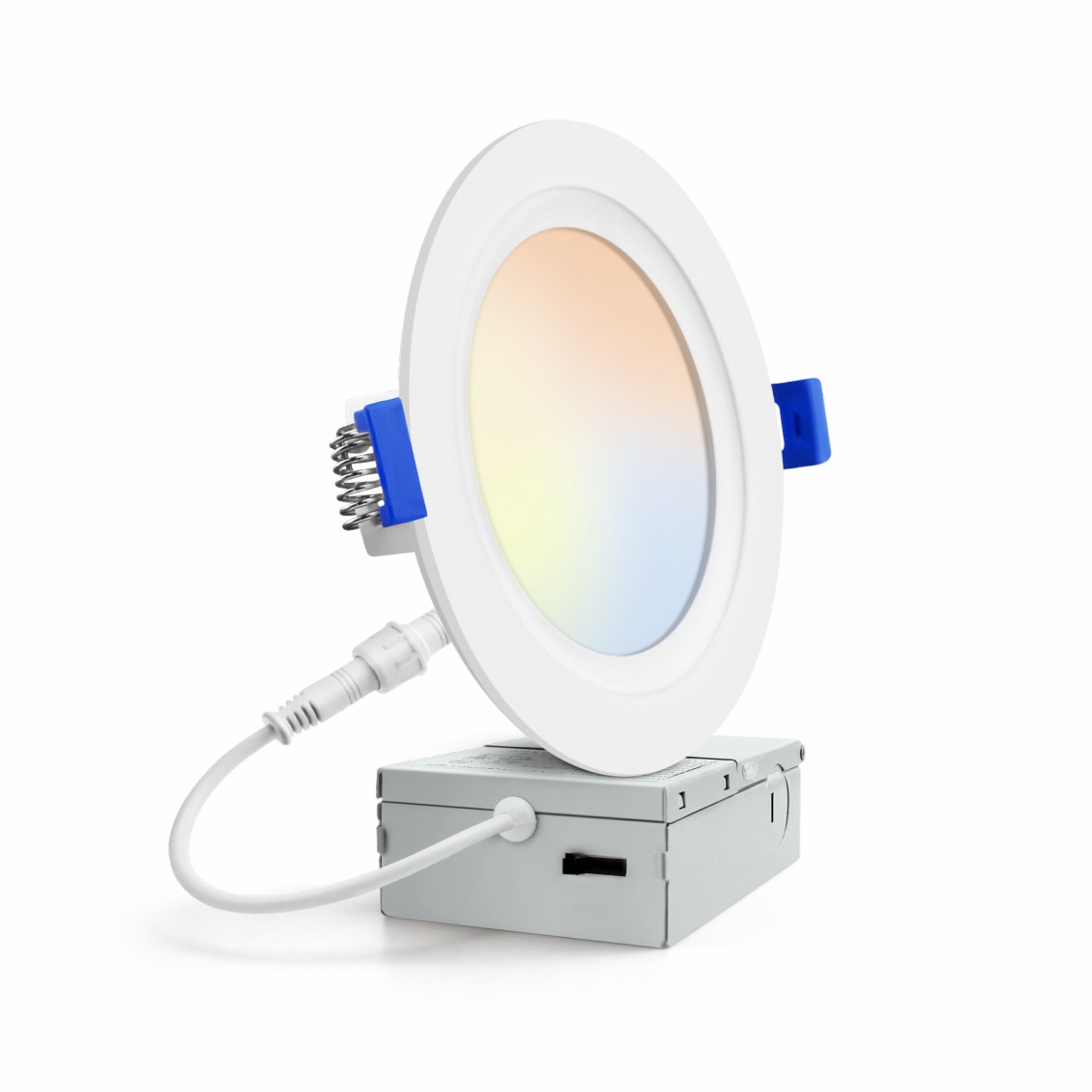

Flat Trim ETL Led Panel Light-1

Input voltage AC120V / AC220V(50~60Hz)
LED Chip SMD2835
Beam Angle 110°
COL.TEMP 2700K l 3000K l 3500K l 4000K l 5000K
CRI 80Ra l 90Ra  PF>0.9
Material Aluminum
Warranty 5 Years
Installation Recessed
Trim Color White l Black l Silver Trim
Certification cETLus l Energy Star l FCC l SAA l CE
DESCRIPTION

Download-Catalogue.png Download-Specification.png Download-Test-Report.png Download-Installation-Notes.png




Body

Durable airtight aluminum body with etched white

PMMA diffuser lens for low glare.

Mounting

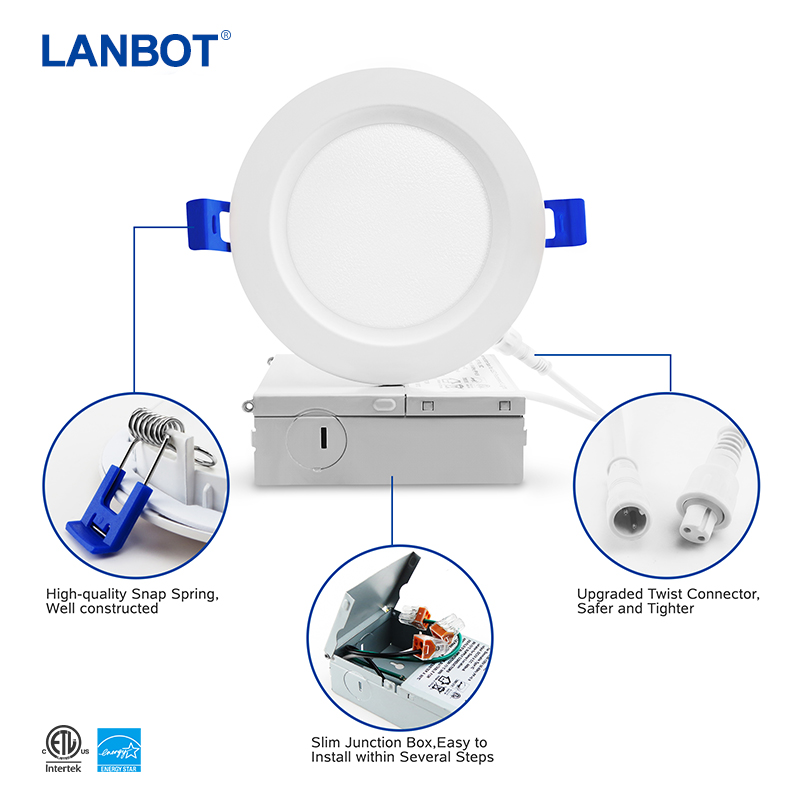

Includes two spring loaded clips to attached to

any ceiling material.

Environment

Suitable for wet locations.

Suitable for insulated ceiling applications

LED Characteristics

This general application light fixture features 6-20 watt LED module that

maintains uniform intensity producing up to 800 lumens; with a typical CRI of 80/90.Available in 3000K, 4000K or 5000K colour temperature.

LED Driver

Extruded aluminum hardwire box with 300mA dimmable class II electronic LEDdriver with AC120/AC220V input. Includes an 18"

plenum rated FT6 wire with DC 2.1 connector from driver to fixture.



Description

The Super thin led panel light is for recess retrofit application as well.It is a high-performance,easy to install residential and commercial grade downlight solution that offers super high output,energy-efficiency and streamlined design. Suitable for wet locations.

Dimming

100%-5% dimming capability. This fixture is compatible with industry

standard TRIAC/ELV dimmers (contact factory for listing of compatible dimmers).

Quick Connect push-in terminals

Three“Quick connect” push-in terminals for fast and easy wiring.

Beam Spread

The fixture lens provides 110° beam spread.

Operating Temperature

-20°C~40°C (-4°F~104°F)









Type

Model

LED

Watt (W)

Input Voltage

Efficacy lm/w

Beam Angle

CRI

Finshed

Size (MM)

Cutout(MM)

Dimming

Warranty

Certification
Flat Trim

LBT-SRPL-09C

SMD2835
6-9

AC120V/AC220V

90-100

100°

80Ra/90Ra

WH/BK/SL

Φ122*H11Φ105
Yes5 Years

cETLus l Energy Star

FCC l SAA l CE

LBT-PL-12CSMD283512-15AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ174*H11Φ155Yes5 Years
LBT-PL-18CSMD283518-20AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ225*H11Φ205Yes5 Years
Regressed BaffleLBT-SRPL-09C1SMD28356-9AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ122*H14.5Φ105Yes5 Years
LBT-PL-12C2SMD283512-15AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ174*H14.5Φ155Yes5 Years
LBT-PL-18C3SMD283518-20AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ225*H14.5Φ205Yes5 Years
Circular BaffleLBT-SRPL-09C4SMD28356-9AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ122*H12Φ107Yes5 Years
LBT-PL-12C5SMD283512-15AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ170*H12Φ155Yes5 Years
LBT-PL-18C6SMD283518-20AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

Φ225*H12Φ205Yes5 Years
