MODULARGIMBAL
3" Modular Gimbal Downlight Family

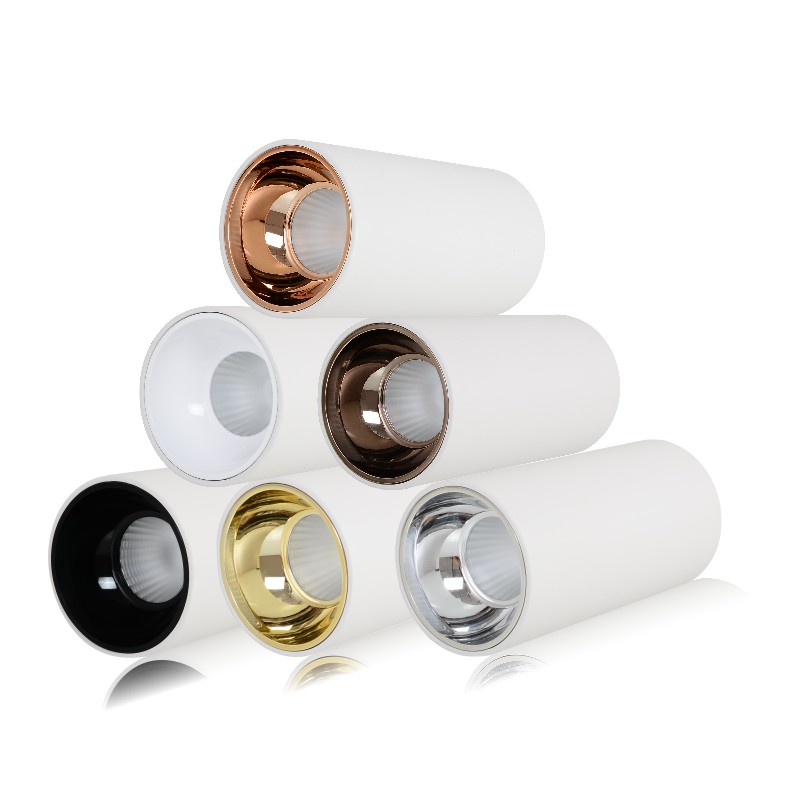

REFLECTORS
| |

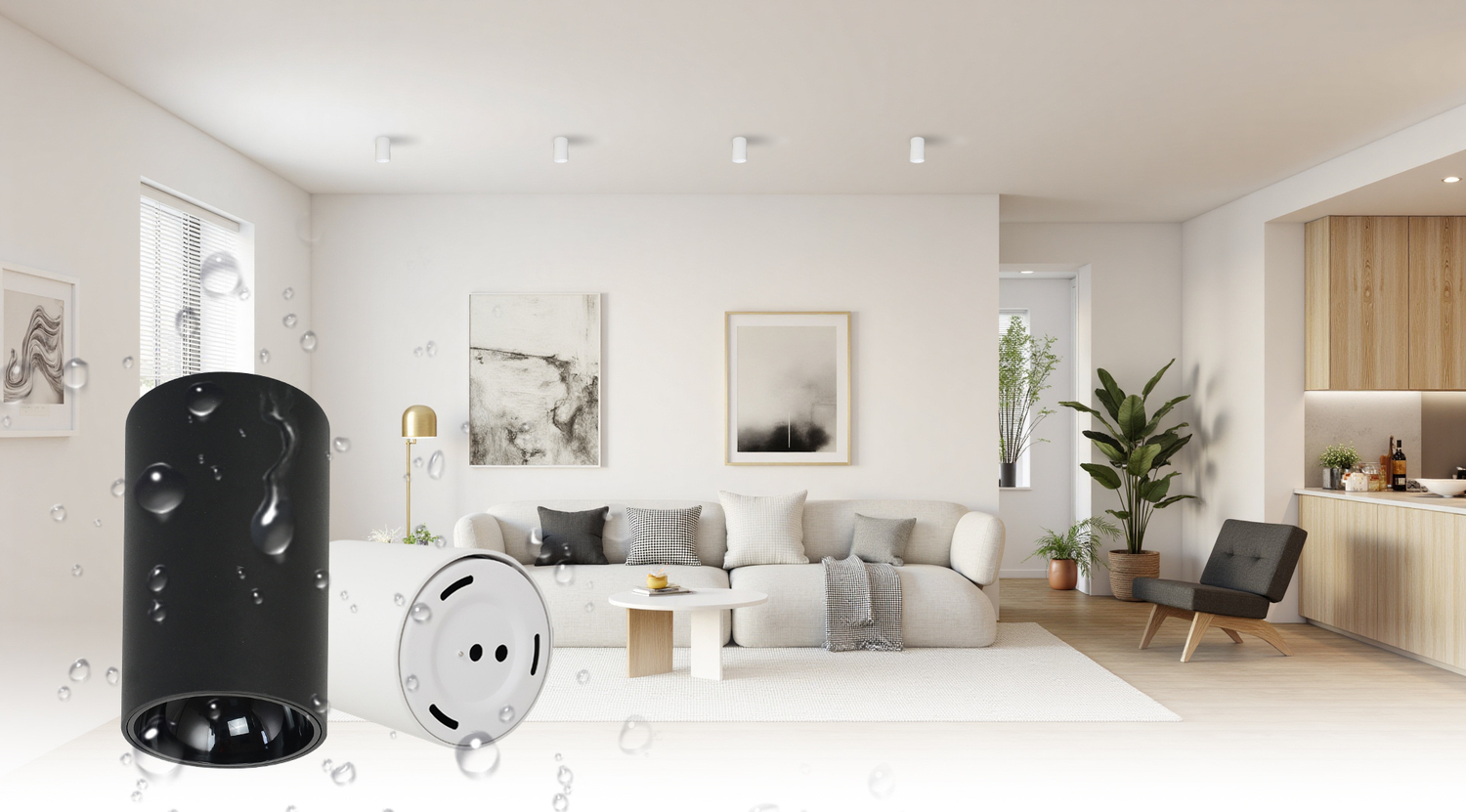

 | Pendant & Surface Mounted Architectural Cylinder Downlight! Available In Surface, Wall, Pendant,Or Cable/Cord Mount Suitable For Indoor Damp & Wet Locations Available In Black, White And Bronze Finishes 120/277/347V American standard 220-240V Europe standard Dimmable Available in Triac or 0-10V |
 |
|
|

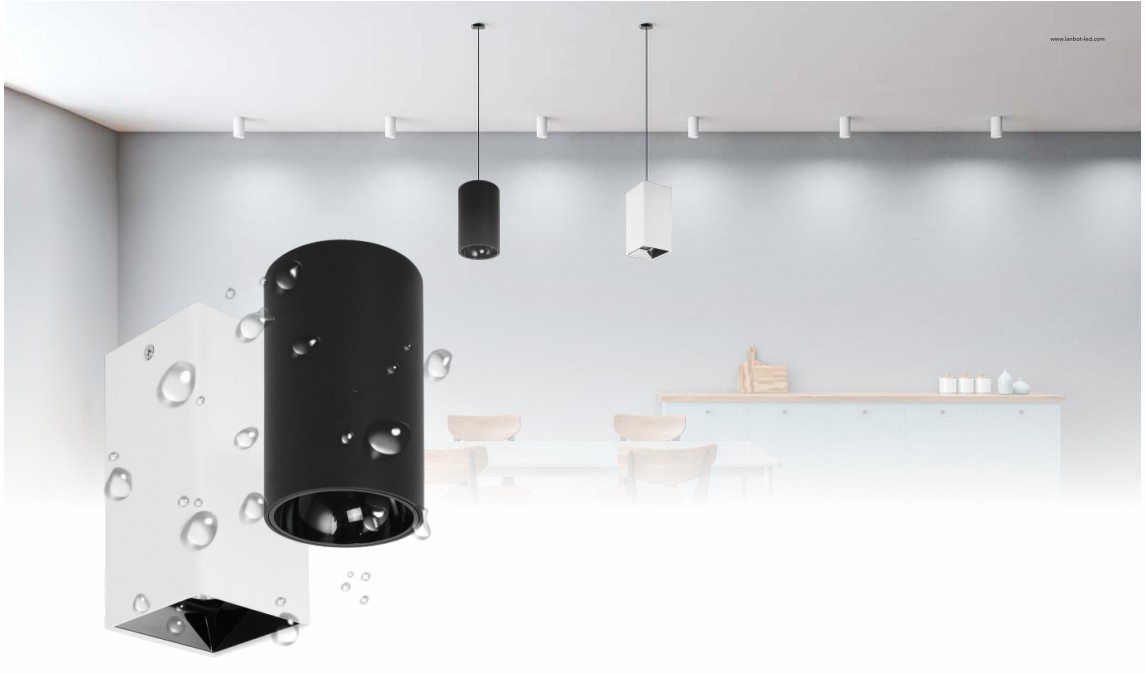

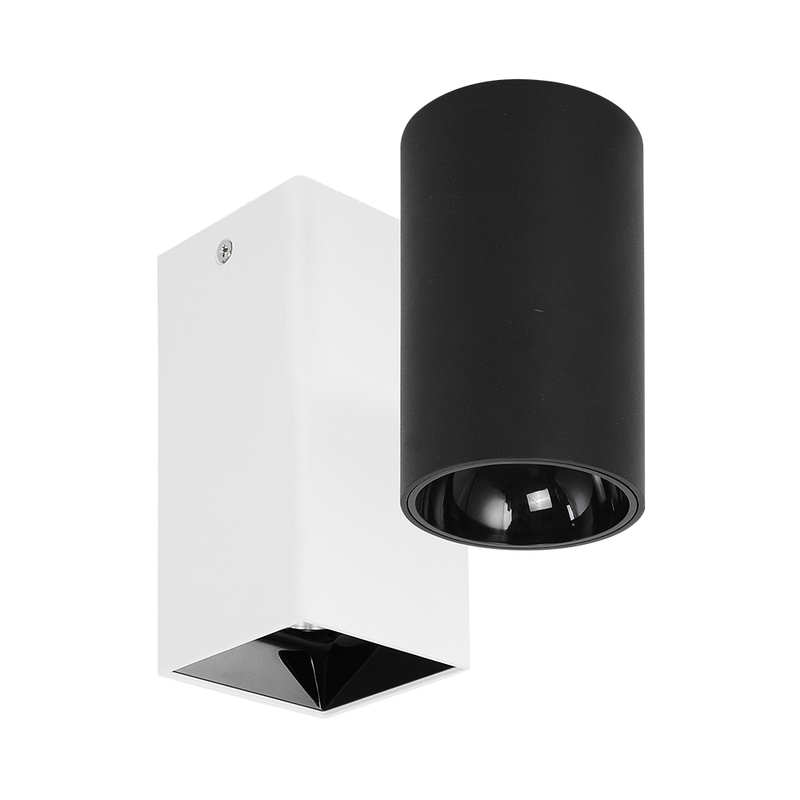

PENDANT /SURFACE MOUNT
|
|
|

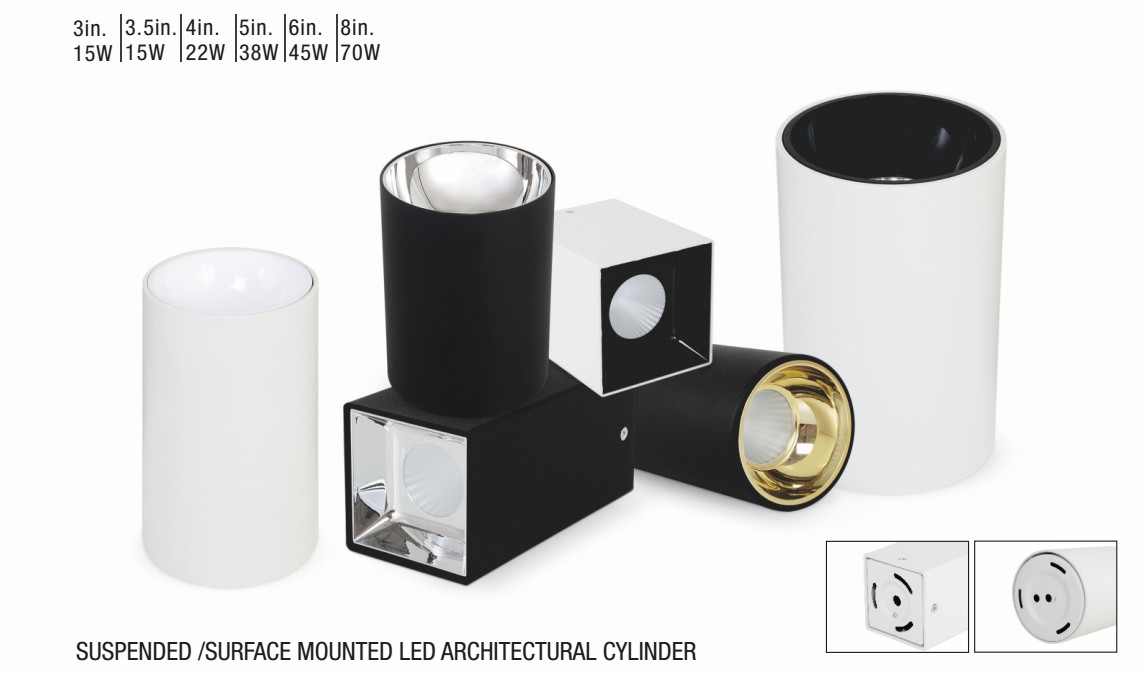

| The LED Architectural Cylinder series offers a sleek and aesthetic design, perfect toadd an elegant touch to the chosen space without compromising on performance.This specification-grade cylinder comes in a variety of lumen packages, color temperatures finishes and beam angles, ensuring the perfect fit for any application. Elevate your space with the CYLS and experience the ideal blend of style and functionality. |
|
|
 |

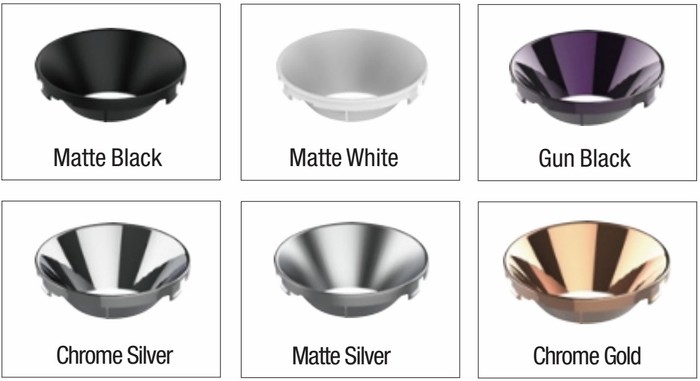

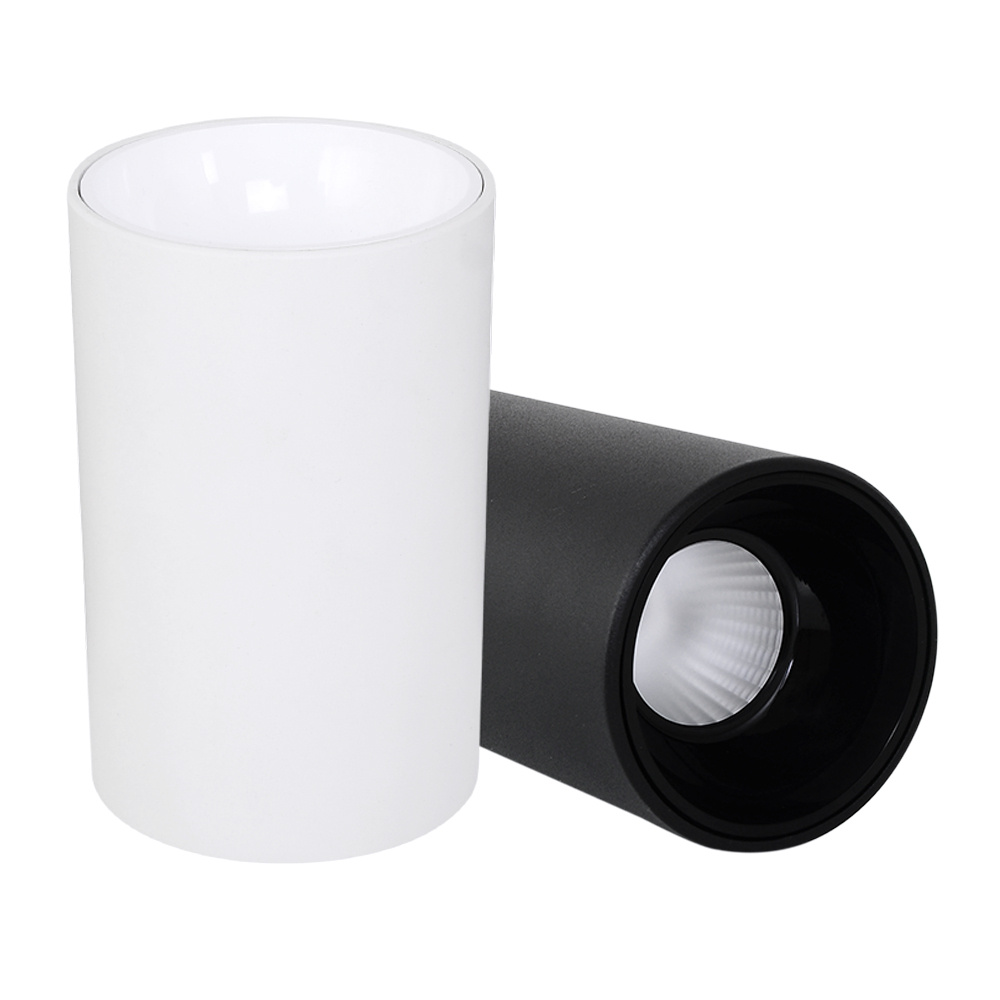

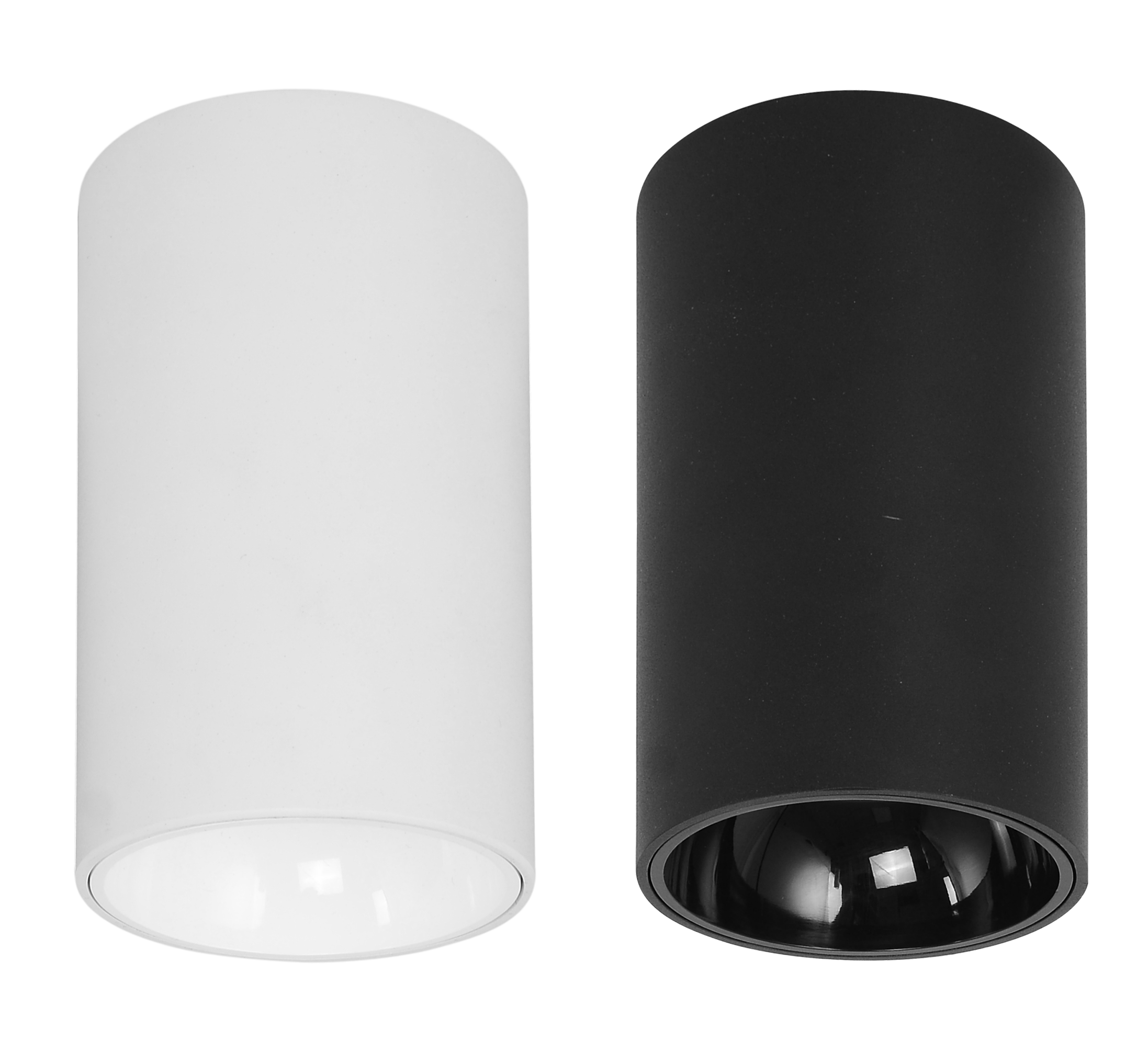

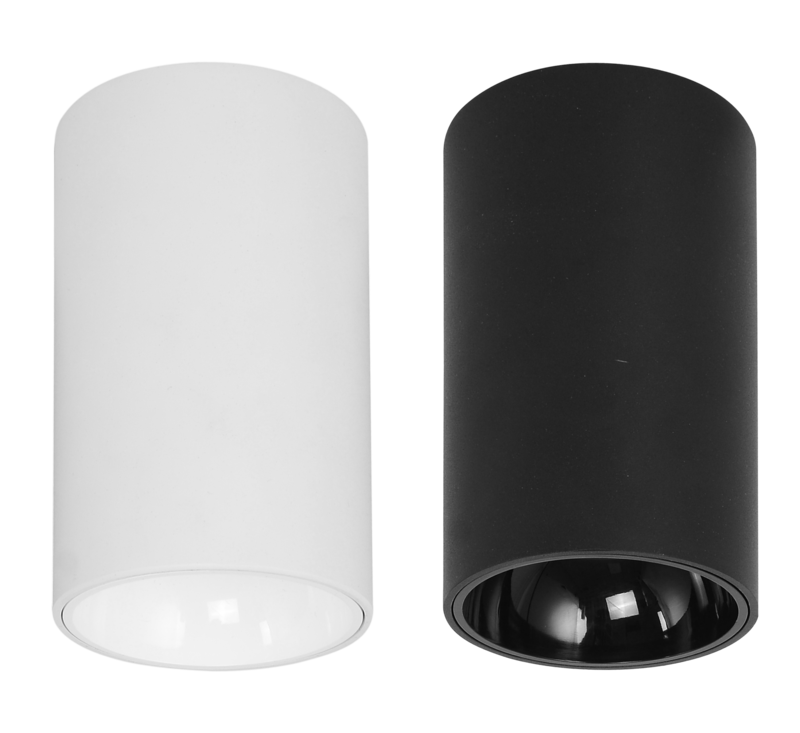

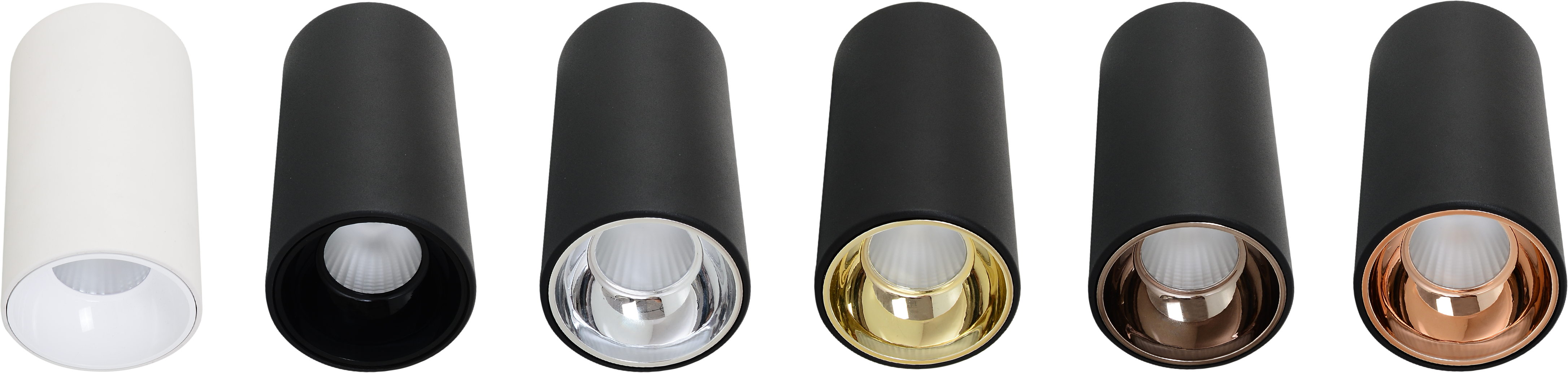

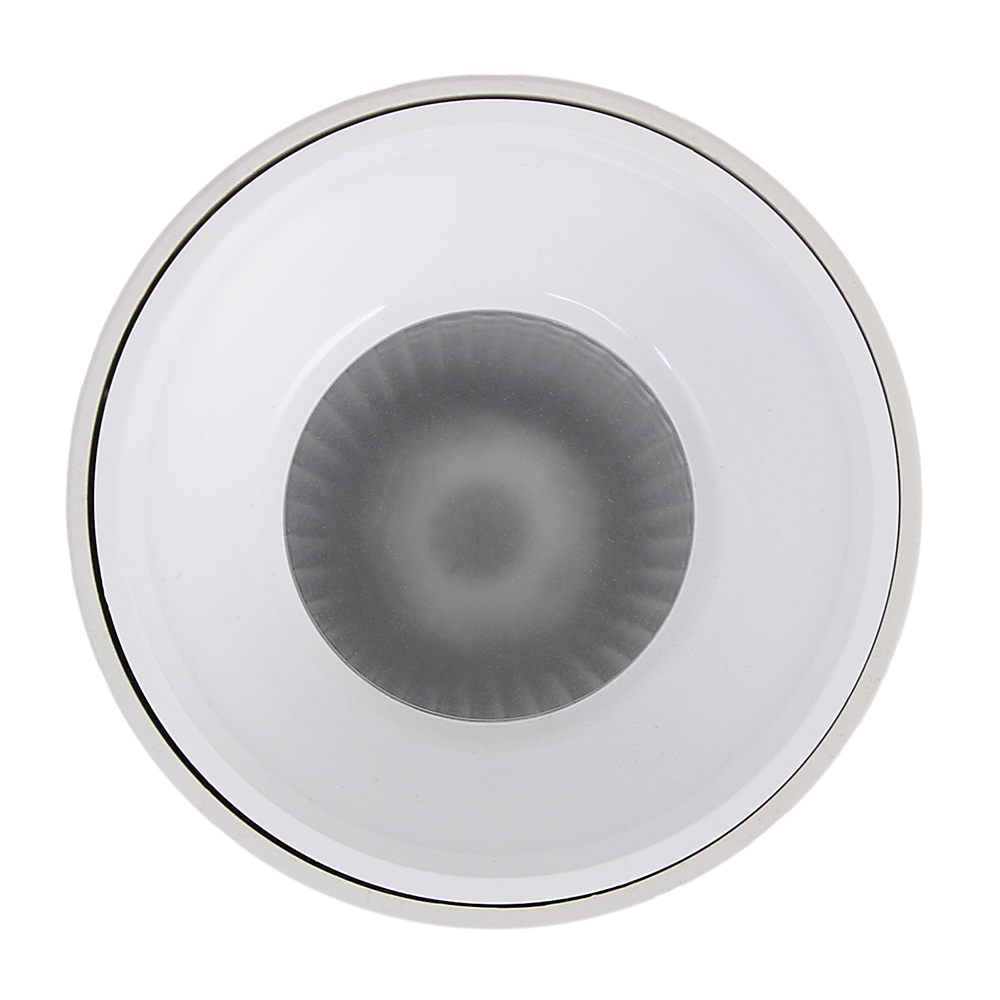

2 FINISHES White finish ;Black finish REFLECTOR High quality polycarbonate 24/36/45 degree reflector designed for maximum reflection efficiency Deep regressed diffuser to eliminate the glare from the high-powered LED
| RATINGS AND CERTIFICATIONS IC rated Damp location rated ETL certified for USA and Canada Fire LED LIFE 50,000-hour LED life EASY INSTALLATION Surface Mounted to Octagon box or suspended with mounted canopy kits
|
Type | Model | LED | Watt (W) | Input Voltage | Efficacy lm/w
| Beam Angle | CRI | Finshed | Size (MM) | Cutout(MM) | Dimming | Warranty | Certification
|
|
| Round | LBT-TDCOB-R15W | COB
| 15-20 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ76*H150 | /
| Yes | 5 Years | cETLus Energy Star FCC SAA CE |
| Round | LBT-TDCOB-R20W | COB | 20-24 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ96*H150 | / | Yes | 5 Years |
| Round | LBT-TDCOB-R24W | COB | 24-30 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ116*H150 | / | Yes | 5 Years
|
| Round | LBT-TDCOB-R40W | COB | 40-50 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ142*H170 | / | Yes | 5 Years |
| Round | LBT-TDCOB-R50W | COB | 50-60 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ171*H180 | / | Yes | 5 Years |
| Round | LBT-TDCOB-R60W | COB | 60-100 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ205*H210 | / | Yes | 5 Years |
| Square | LBT-TDCOB-S15W | COB | 15-18 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ76*H150 | / | Yes | 5 Years |
Square
| LBT-TDCOB-S18W | COB | 18-24
| AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ96*H150 | / | Yes | 5 Years |
| Square | LBT-TDCOB-S24W | COB | 24-30 | AC120V/AC220V | 90-100 | 45° | 80Ra/90Ra | WH/BK/SL | Φ116*H150 | / | Yes | 5 Years |
