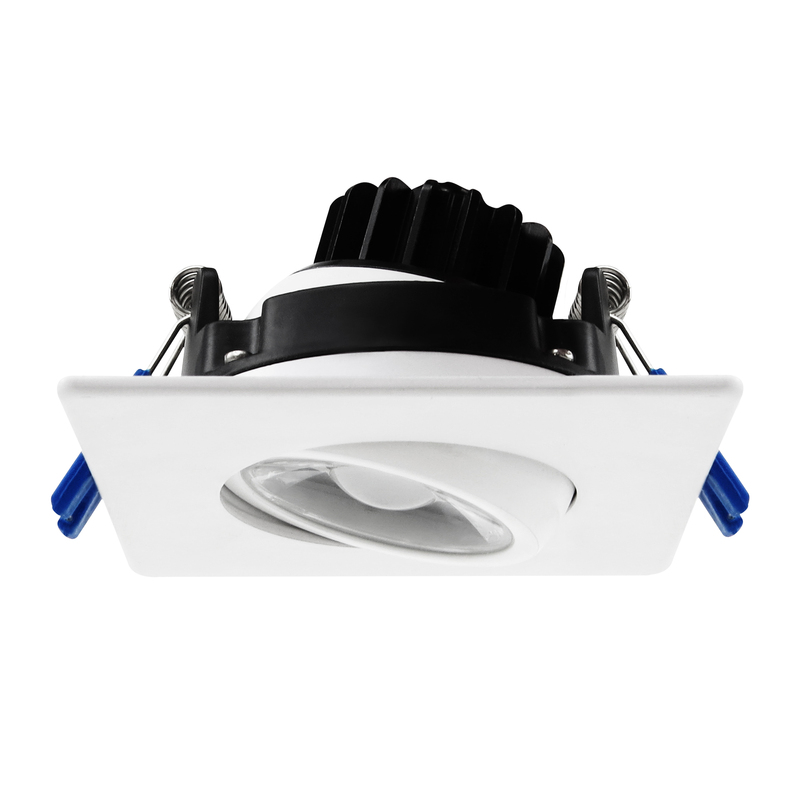

3 Inch COB Gimbal ETL Led Downlight

Input voltage AC120V / AC220V(50~60Hz)
LED Chip COB
COL.TEMP 3CCT(3000K-4000K-5000K)
CRI 80Ra l 90Ra  PF>0.9
Warranty 5 Years

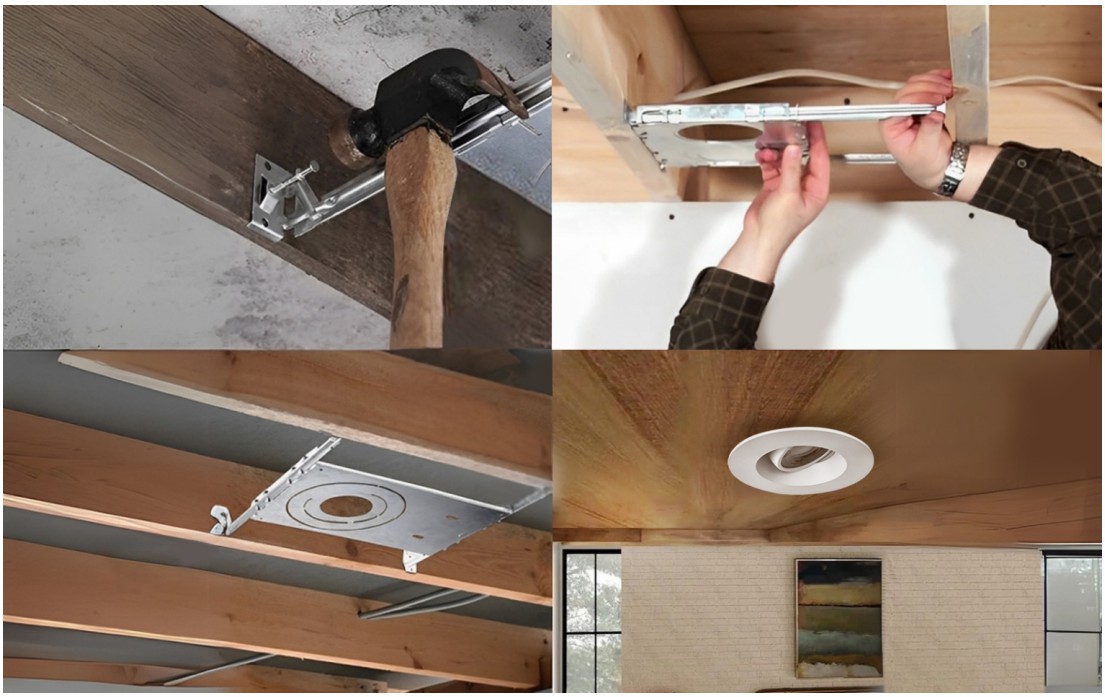

Installation Recessed

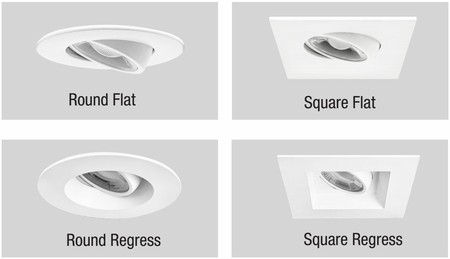

Trim Color White l Black l Silver Trim
Certification cETLus l Energy Star l FCC l SAA l CE
DESCRIPTION

Download-Catalogue.png Download-Specification.png Download-Test-Report.png Download-Installation-Notes.png





PARAMETER



Type

Model

LED

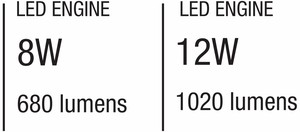

Watt (W)

Input Voltage

Efficacy lm/w

Beam Angle

CRI

Finshed

Size (MM)

Cutout(MM)

Dimming

Warranty

Certification
Round

LBT-XZCOB-08-R

COB
8

AC120V/AC220V

80-90

24°/38°/60°

80Ra/90Ra

WH/BK/BN

Φ85*H46Φ65-70
Yes5 Years

cETLus

Energy Star

FCC

SAA

CE

Square
LBT-XZCOB-08-SCOB8AC120V/AC220V80-90

24°/38°/60°

80Ra/90Ra

WH/BK/BN

L85*W85*H46Φ65-70Yes5 Years





APPLICATIONS
