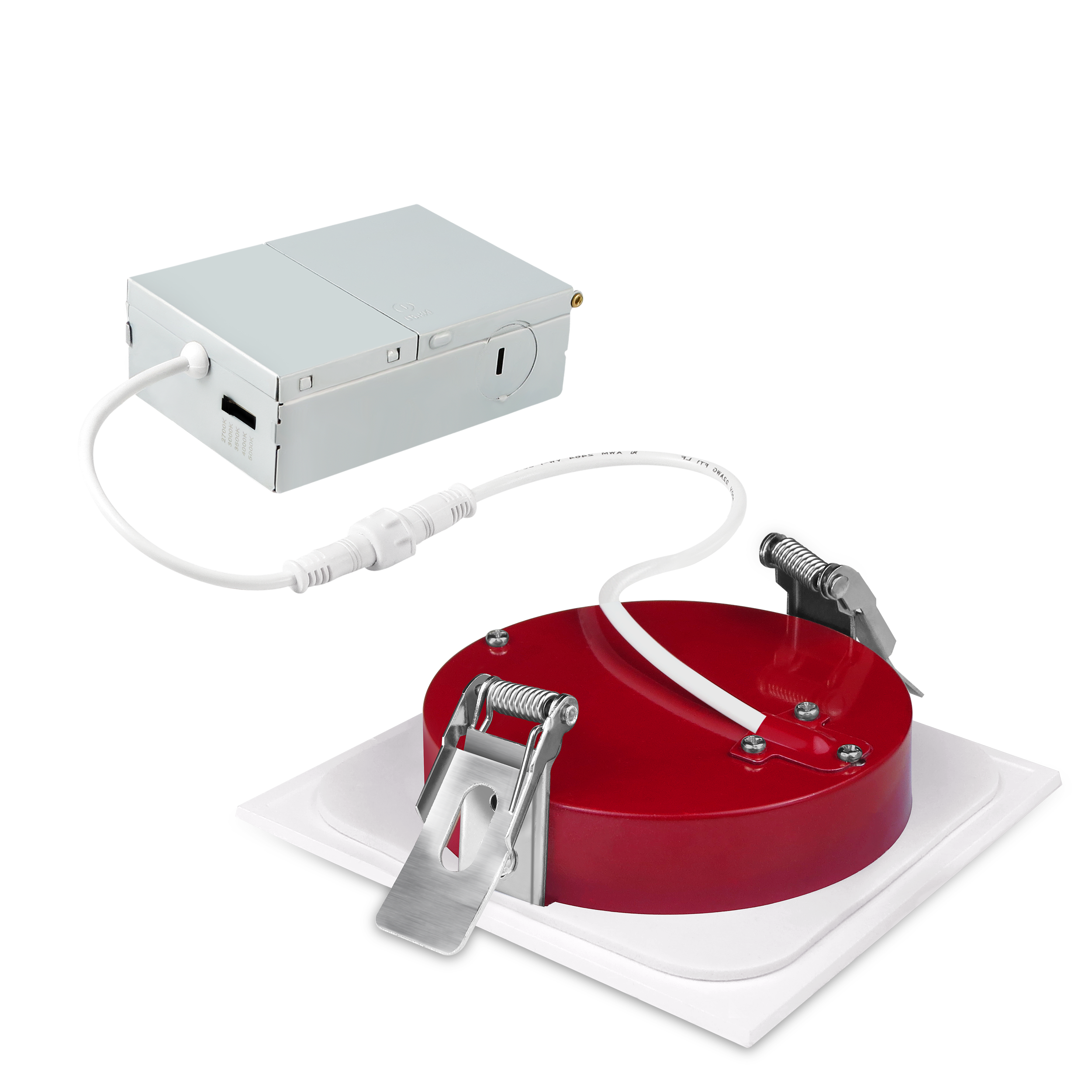

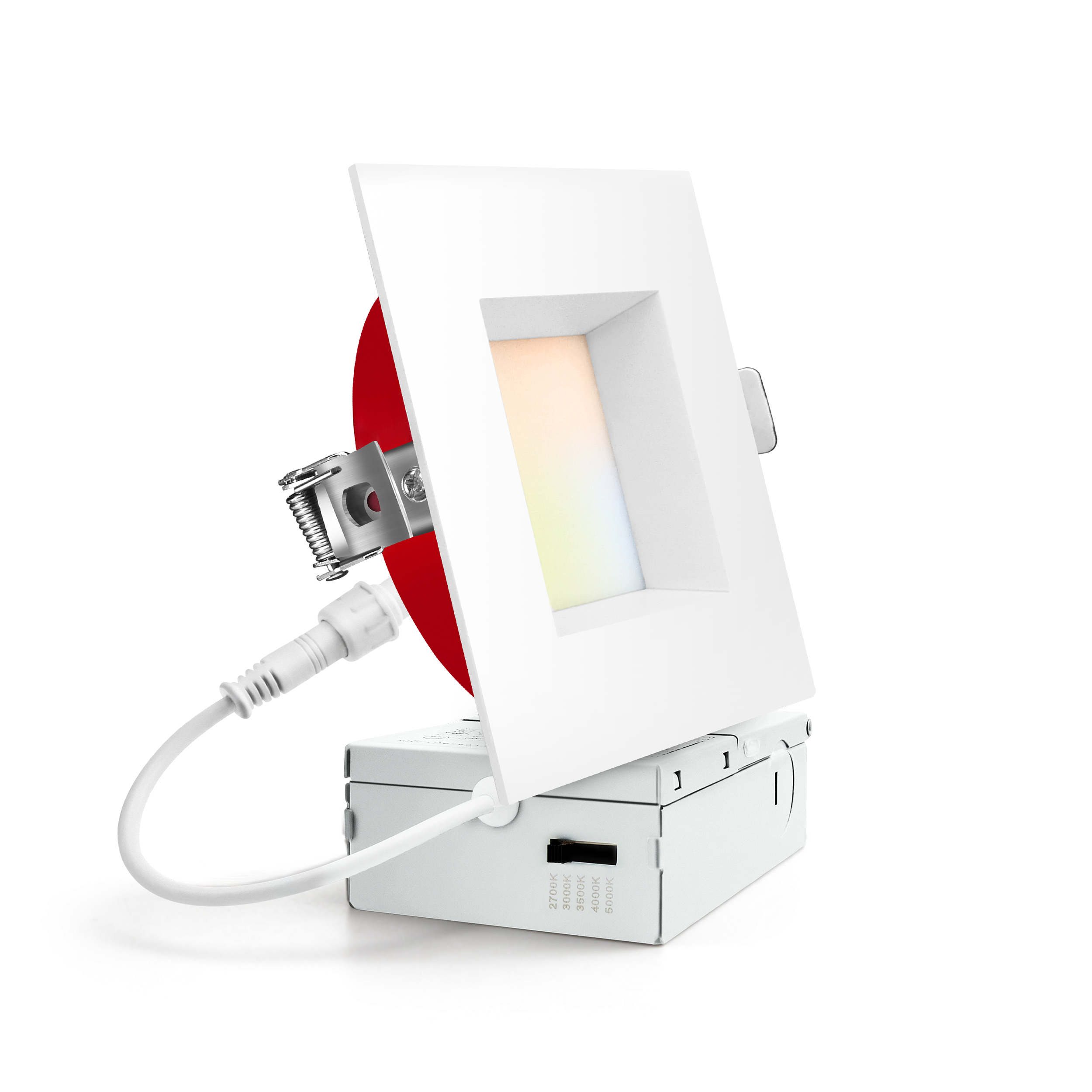

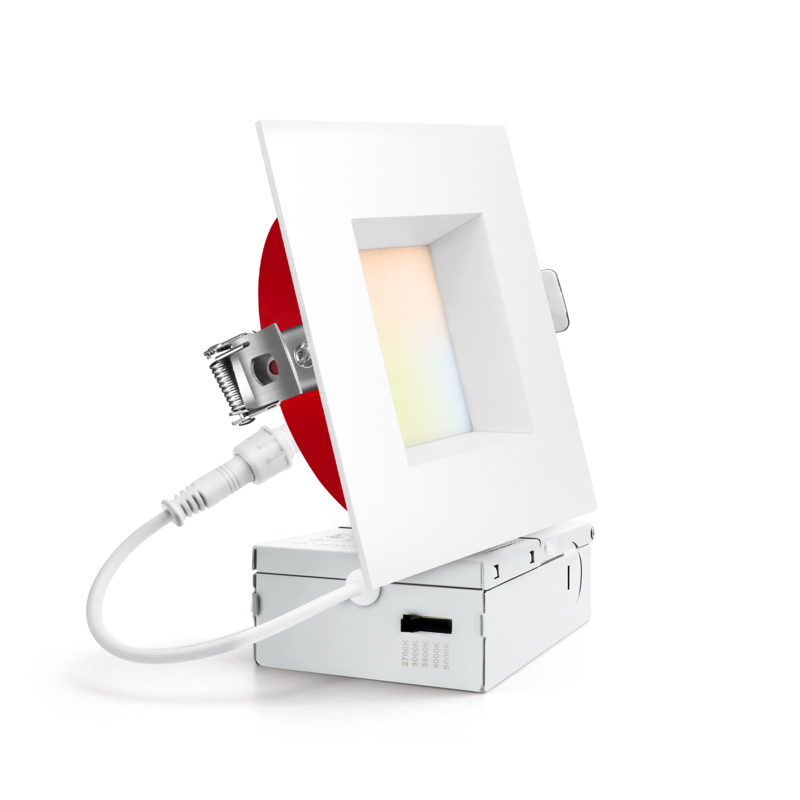

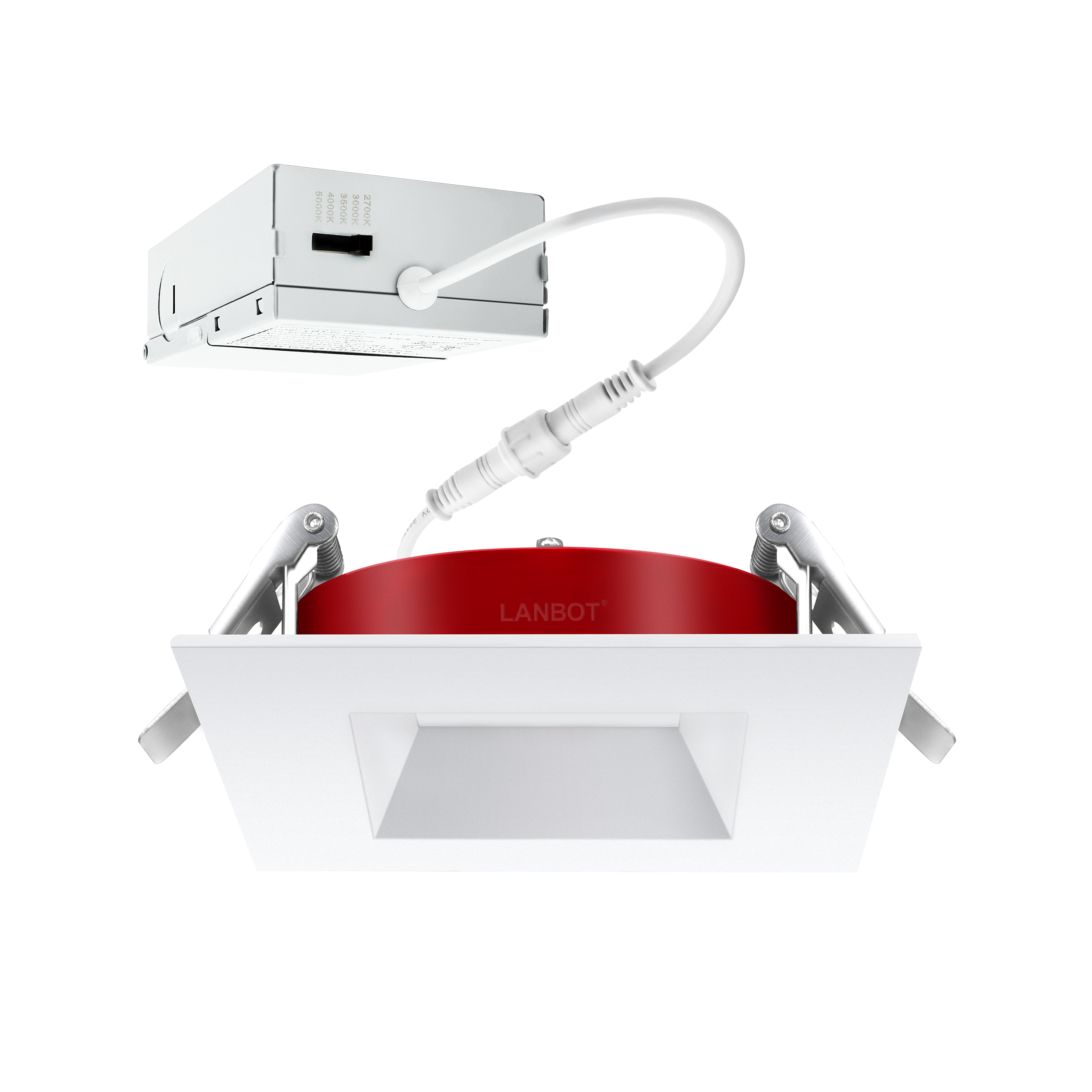

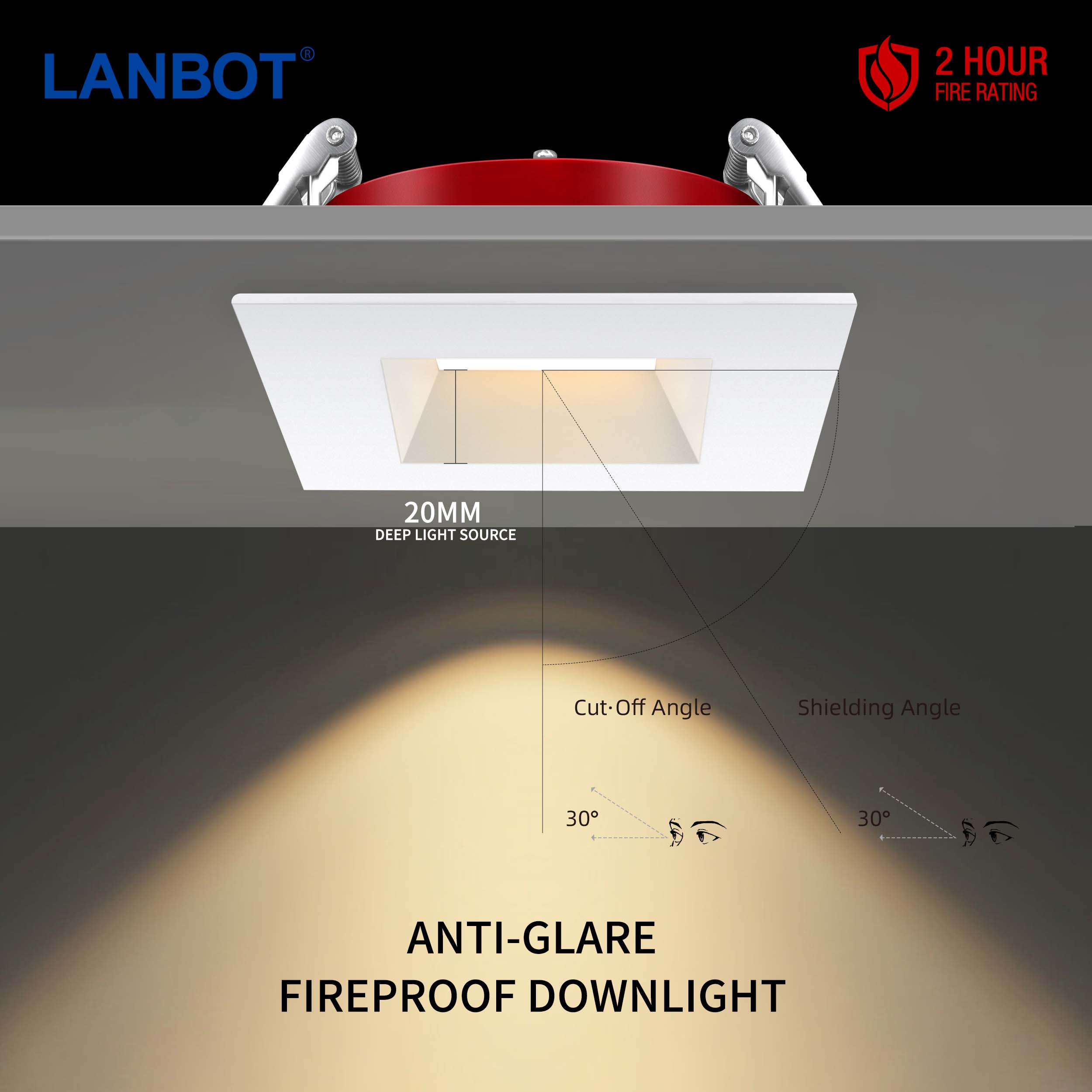

REGRESSED FIRE RATED LED DOWNLIGHT
 |
DETAILS

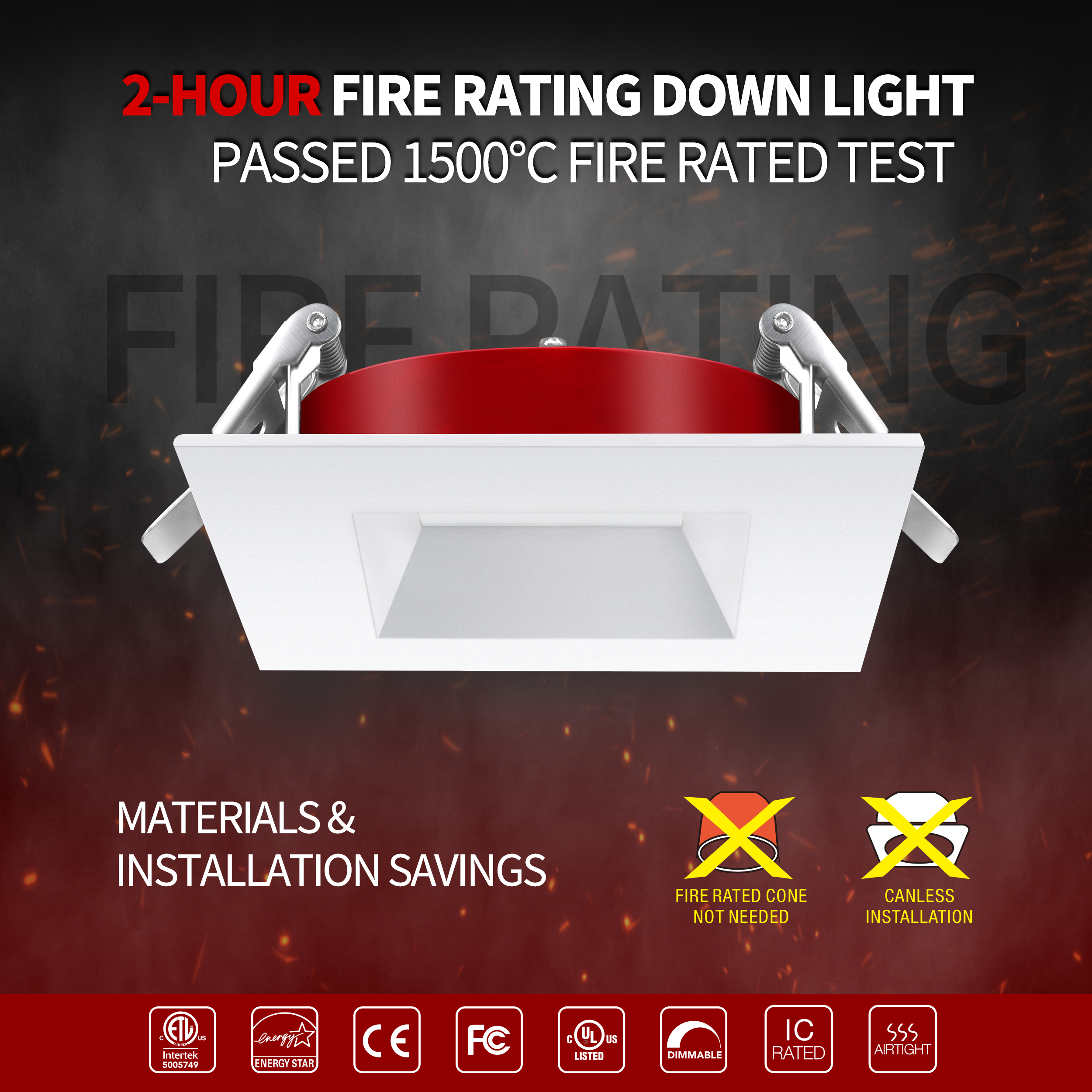

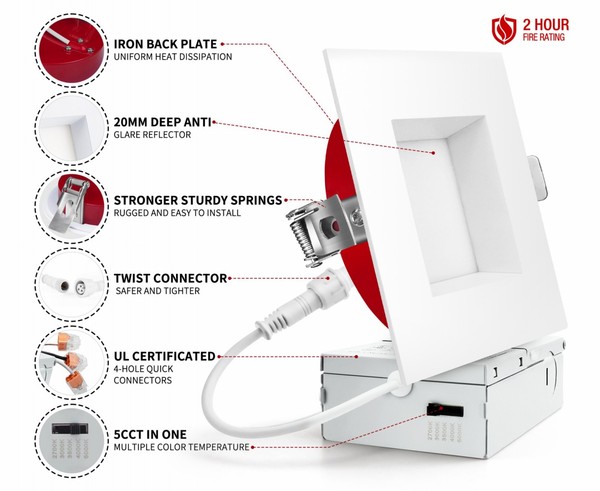

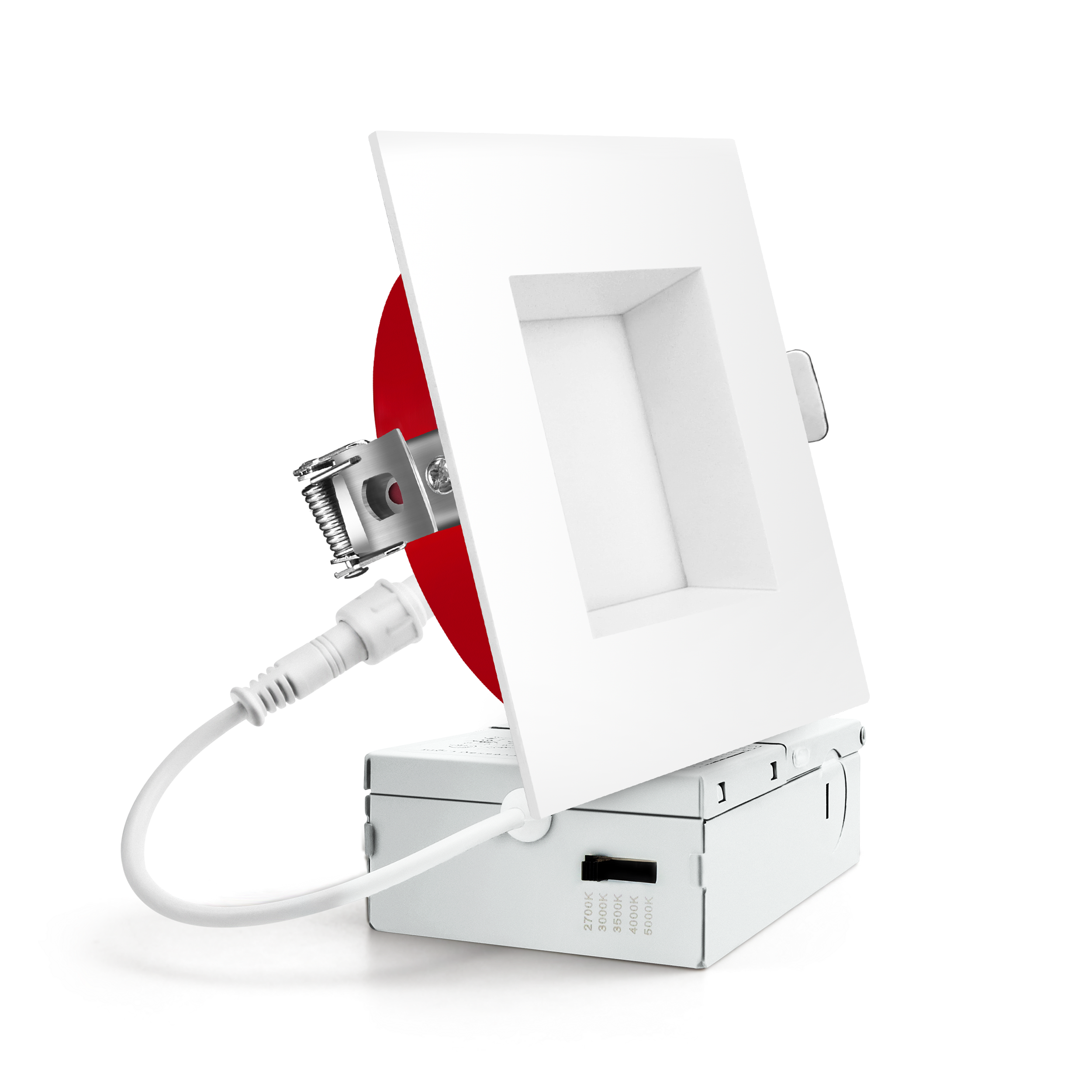

The regressed downlight is ETL listed in USA & Canada. It has been tested for a 2-HOUR FIRE RATING and complies with ASTM E119, UL 263 & CAN/ULC S101 and certified to UL standard 1598 and CSA standard C22.2 No. 250. It offers CCT selectable a in a low-profile design. It features 5 color temperatures at range of 27K,30K,35K,40K & 50K to select from. It is IC & airtight rated and allows installation in almost any location, even directly under a ceiling joist. This unit is well suited for indoor residential, hospitality, commercial and multifamily applications. It does not require a recessed housing for installation |
|

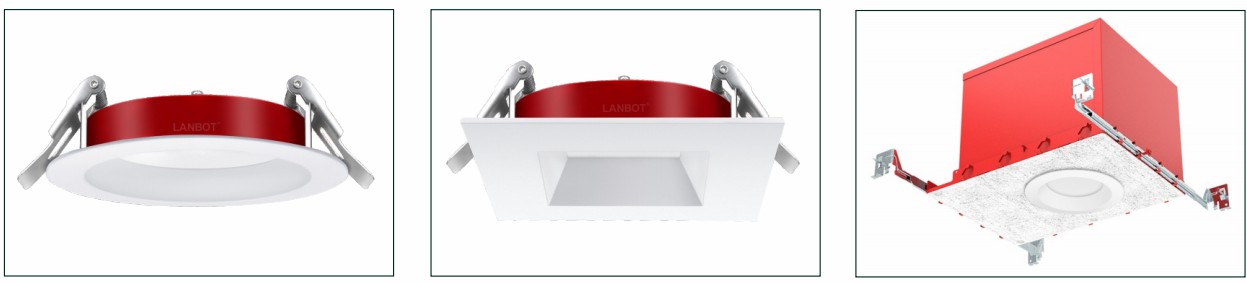

| Item No. | Mounting | Voltage | Wattage | CRI | Color Temp | Optics | Driver | Options | Size (mm) | Cutout (mm) | Trim Finish |
| LBT-4GDPL-F | Remodel；
New Construction | 120Vac 100-277Vac 100-347Vac 220-240Vac | 10W | 80Ra+
90Ra+ | 3CCT 5CCT DTW 2700K-6500K | 110° | Triac Dim. 0-10V Dim. Dali Dim. On/Off only | Standard
EM Backup | 123x13 | 105-110 | White Black Silver Brush Nickel |
| LBT-6GDPL-F | 12W | 180x13 | 155-170 |
| LBT-RFX-F | 15W | 136x26 | 100-125 |
| LBT-SFX-F |
| 128x128x26 | 100-118 |
