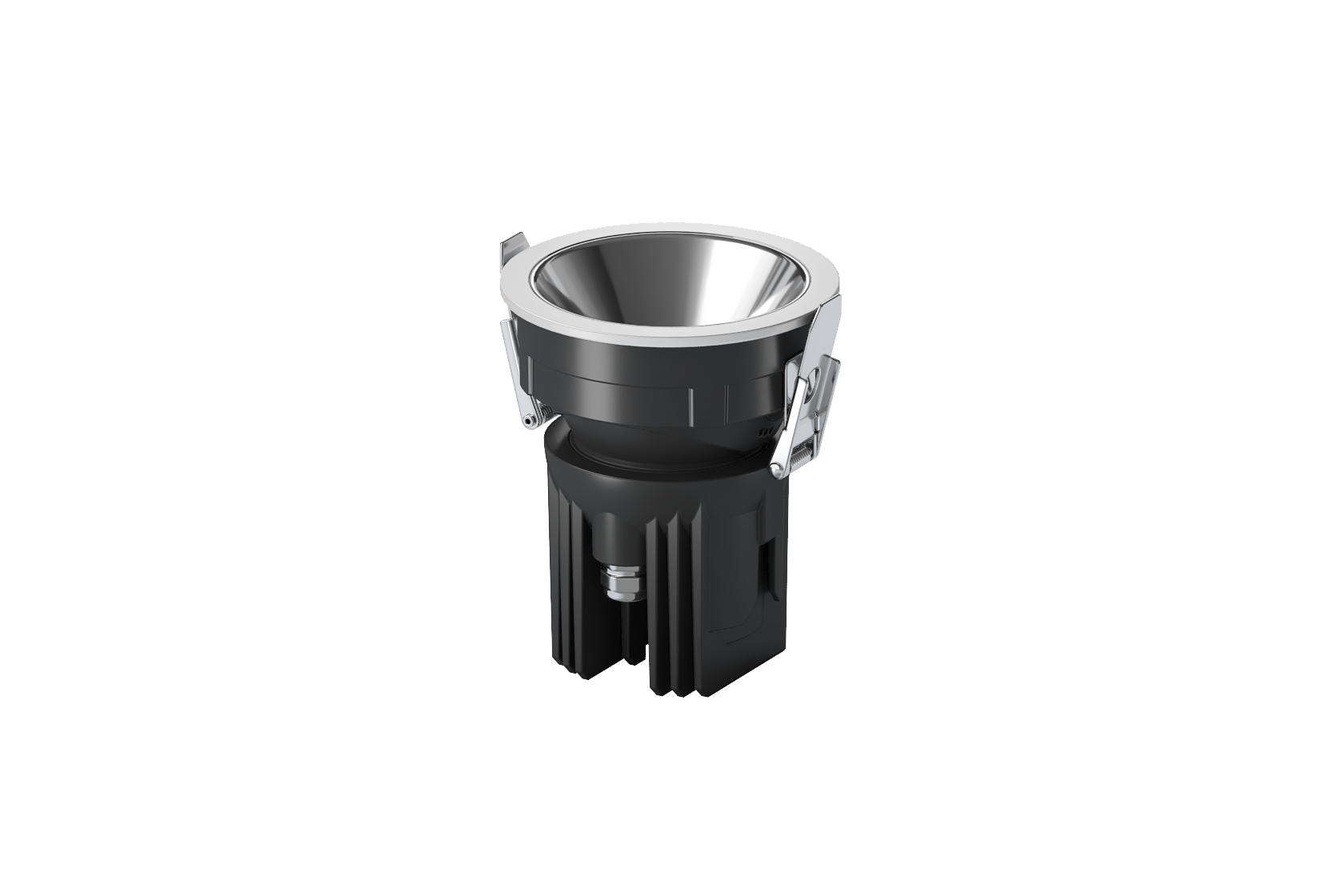

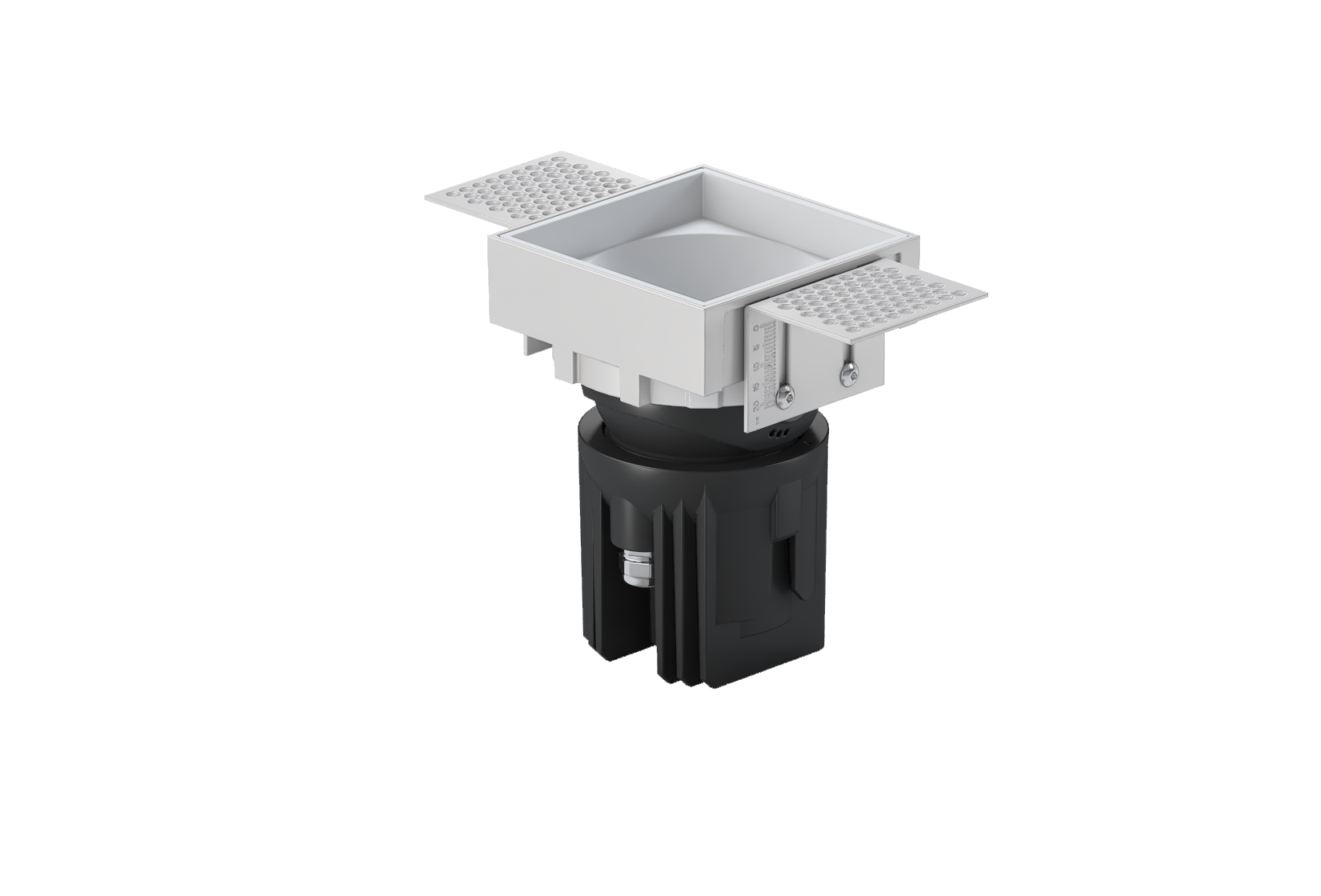

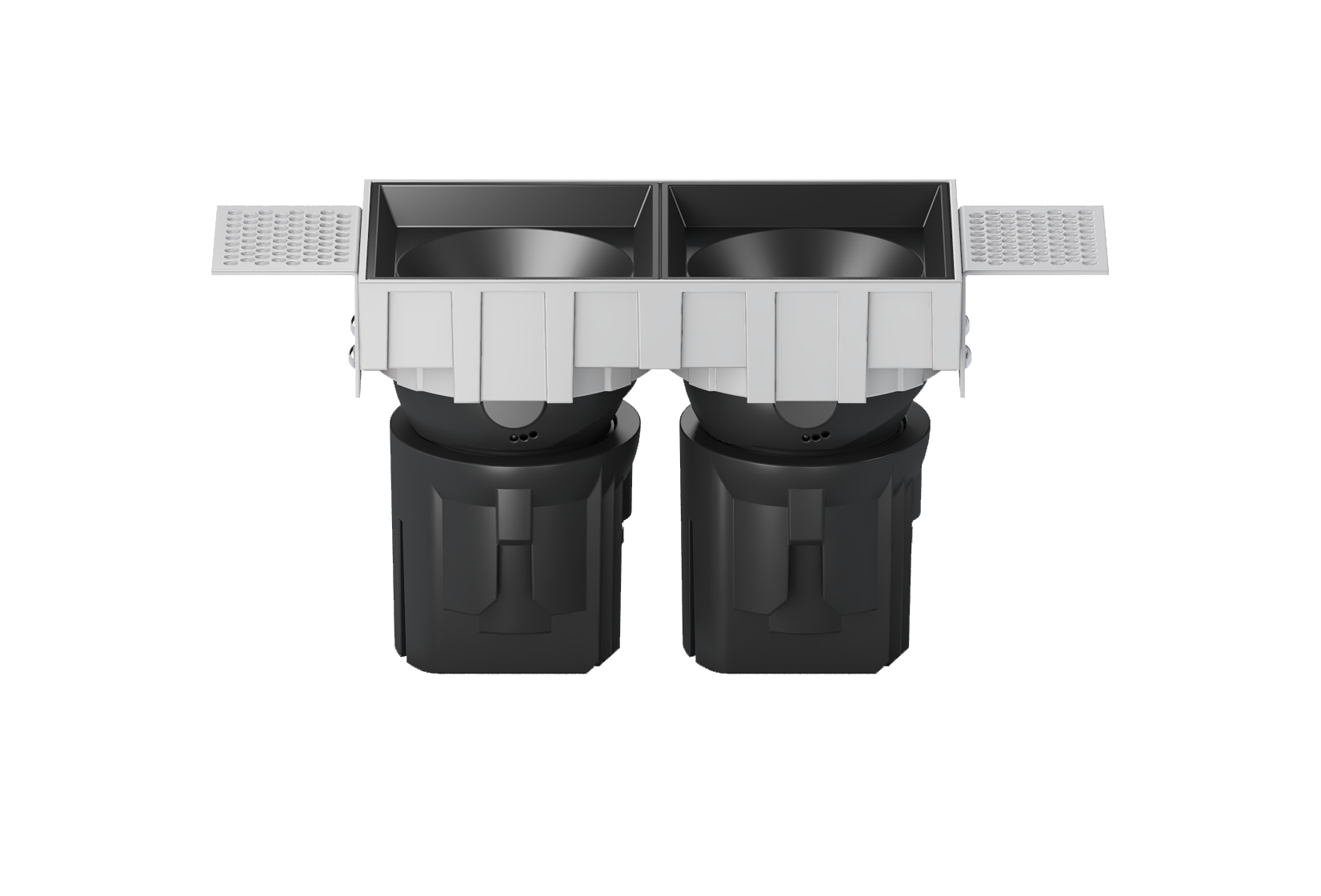

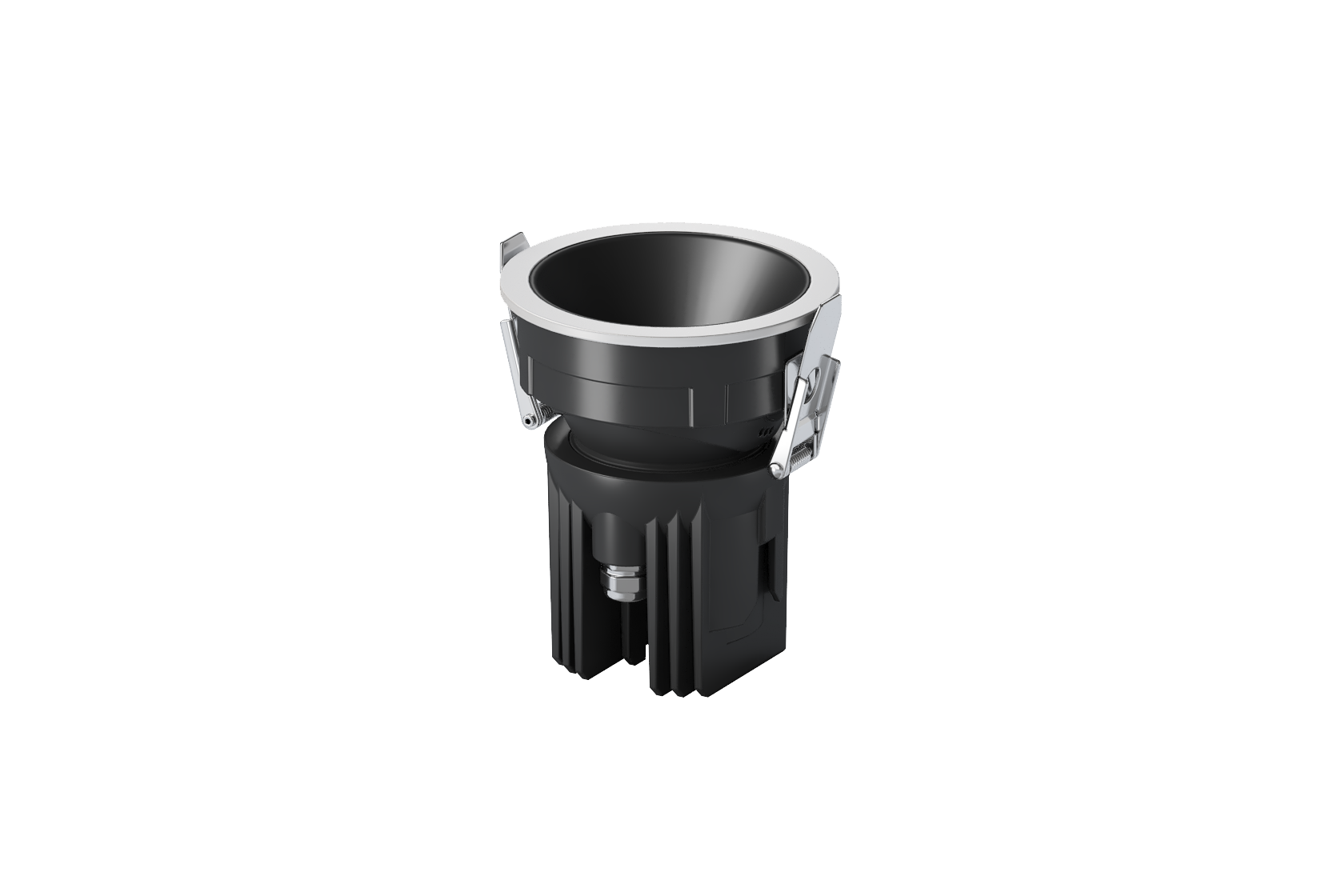

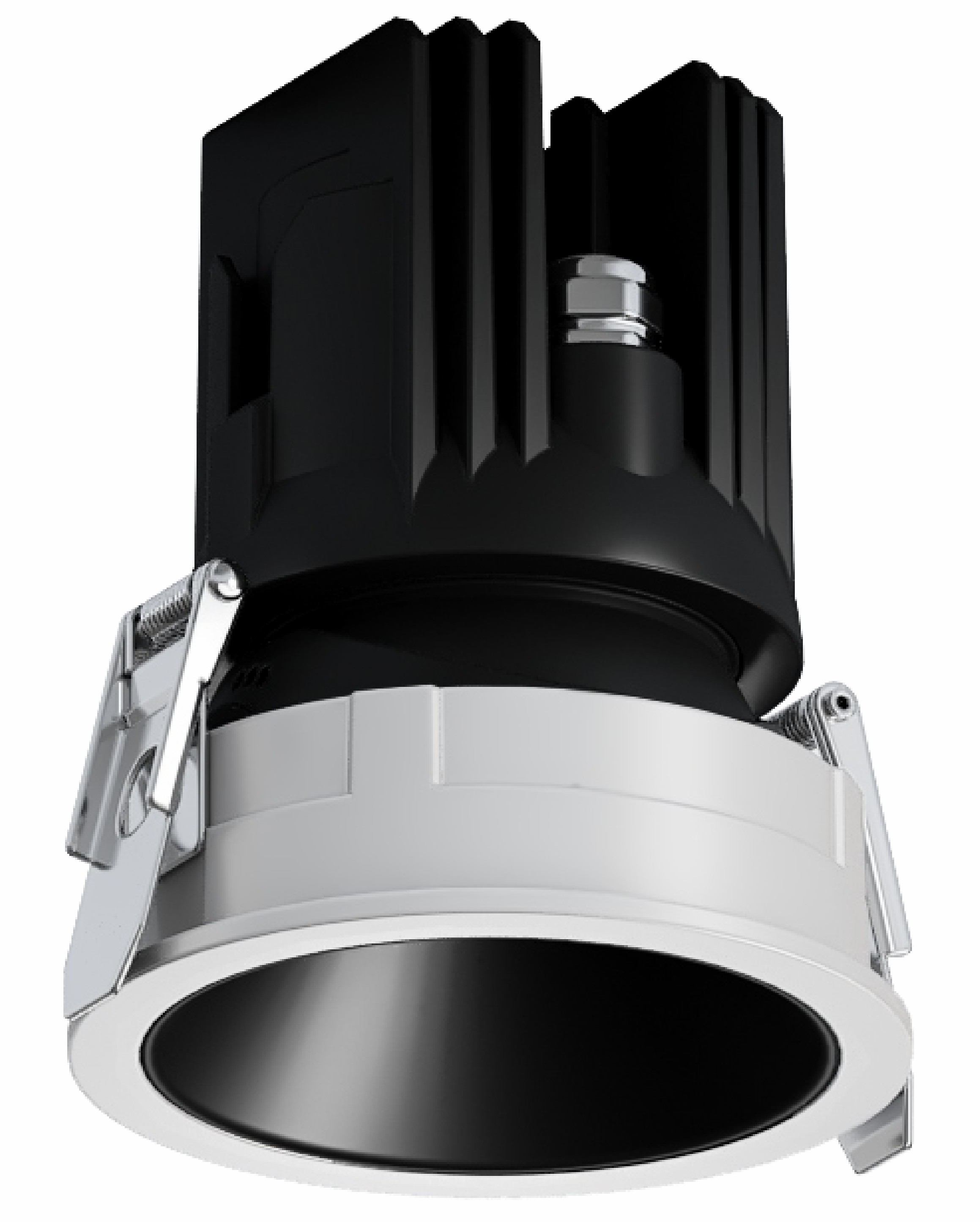

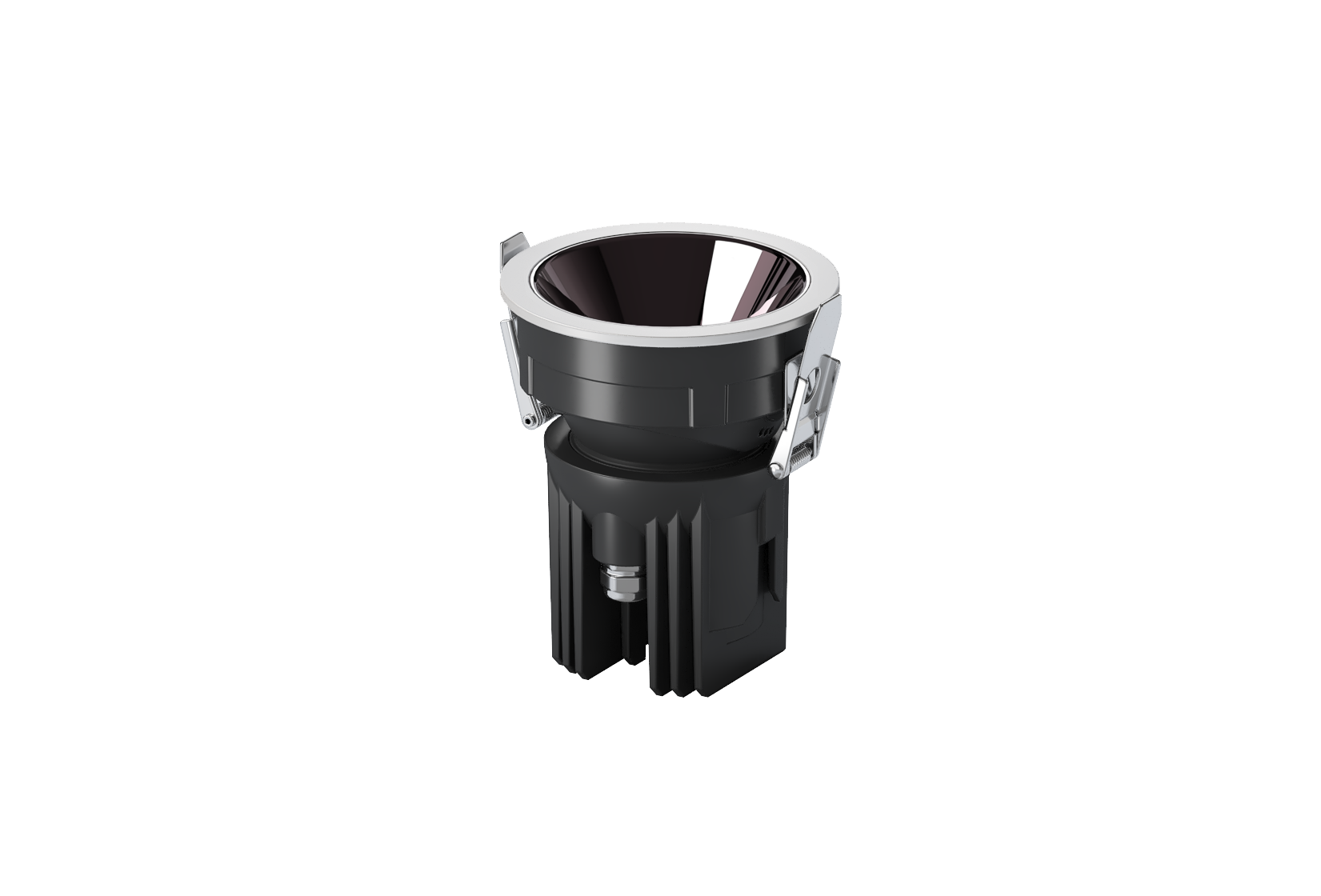

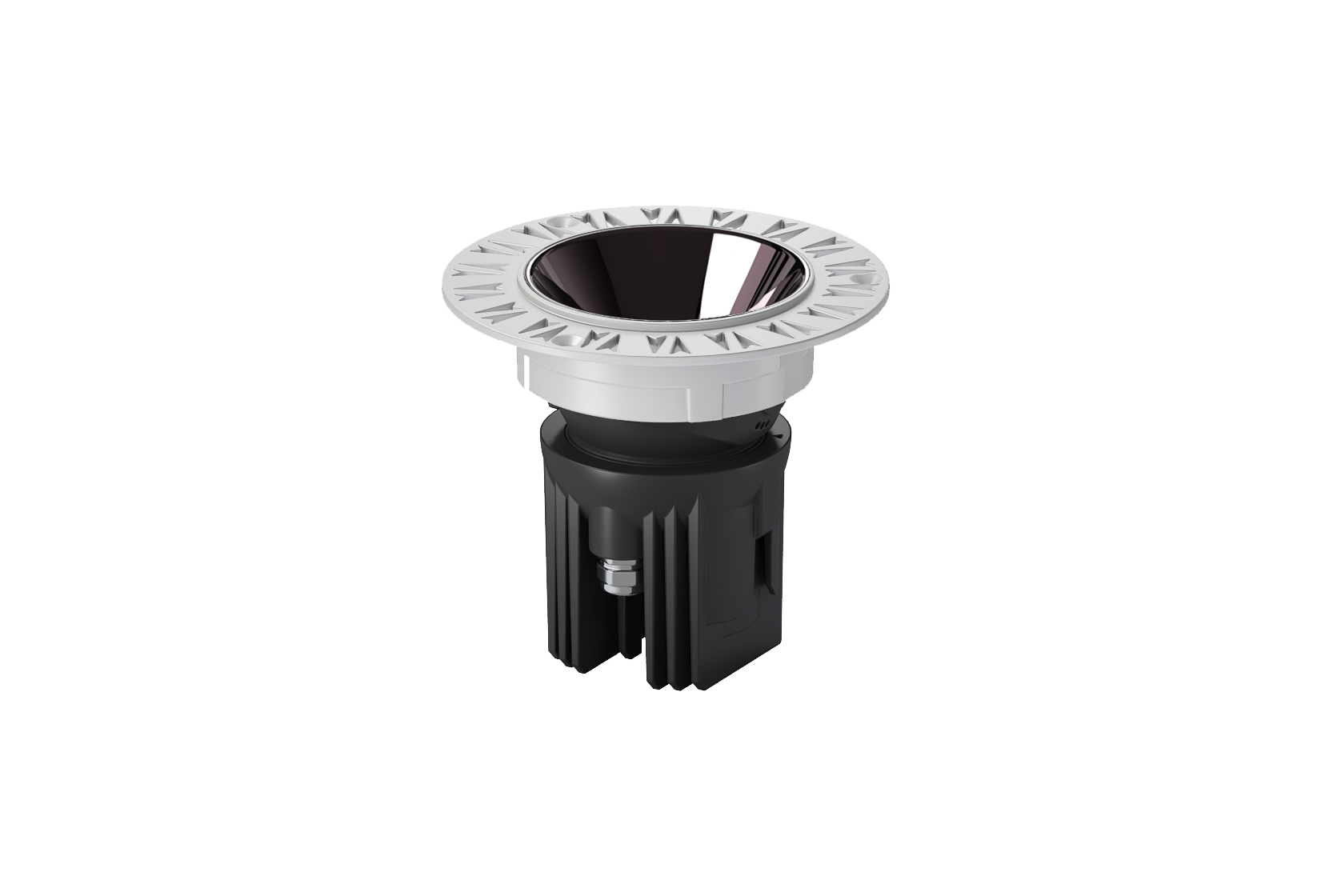

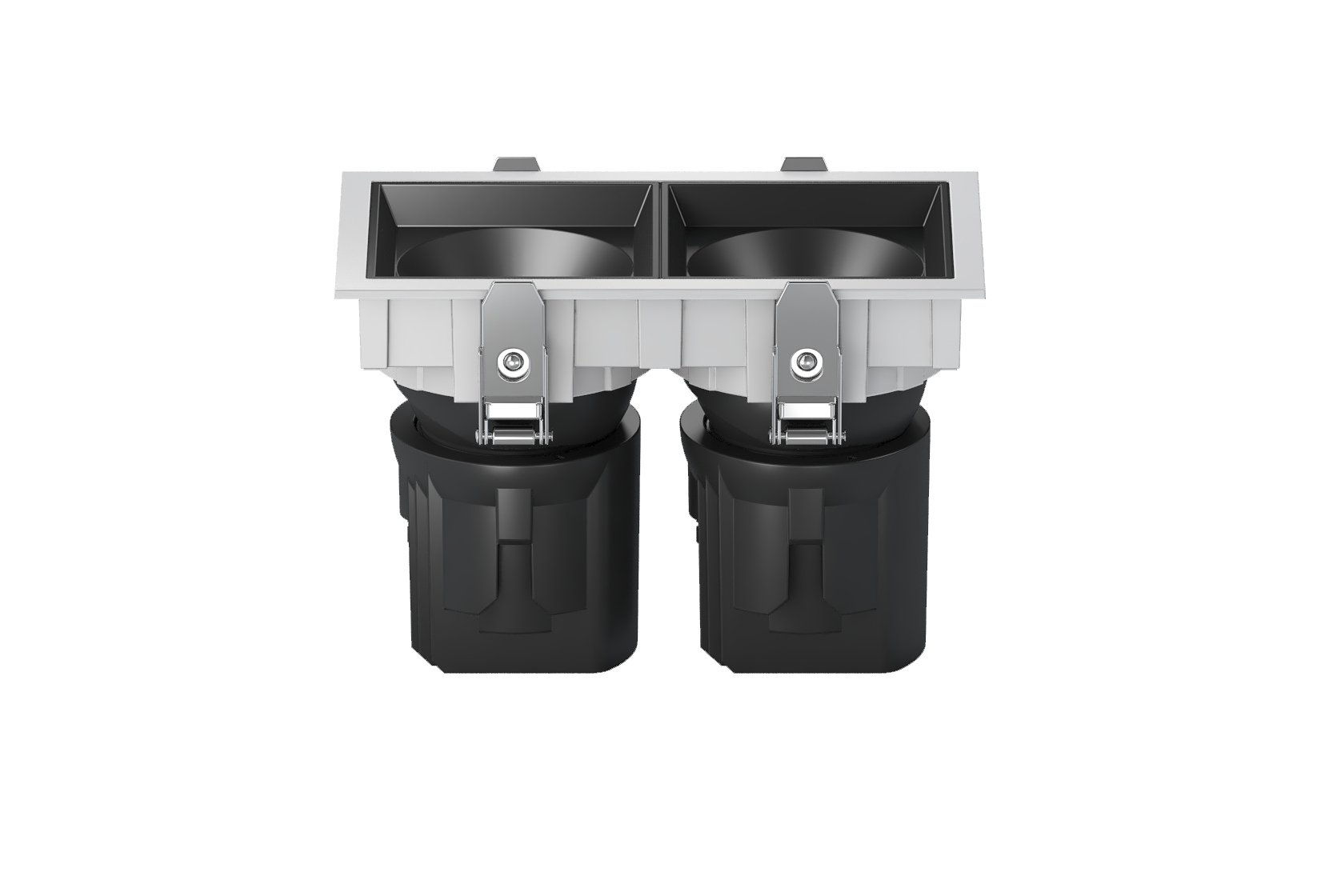

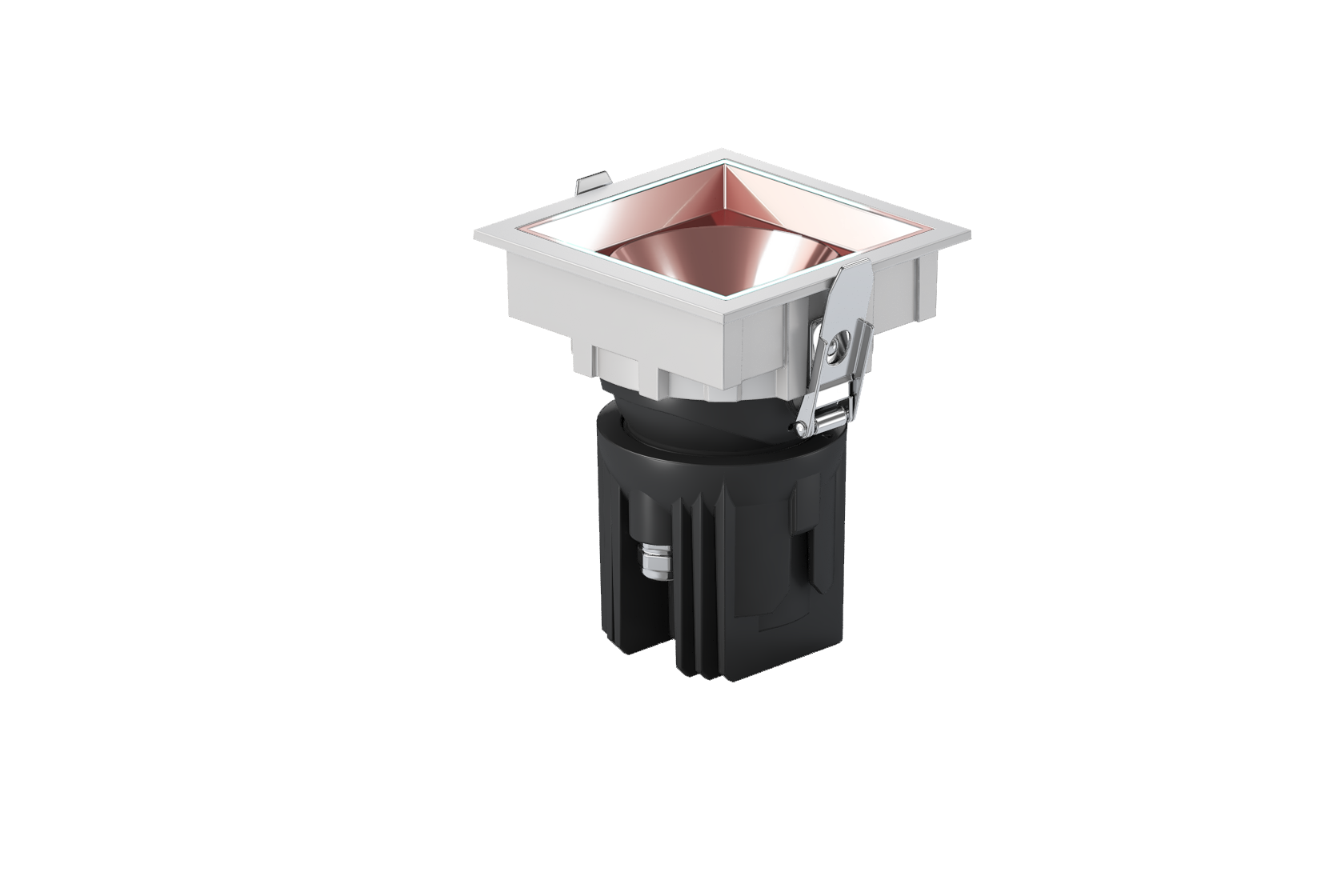

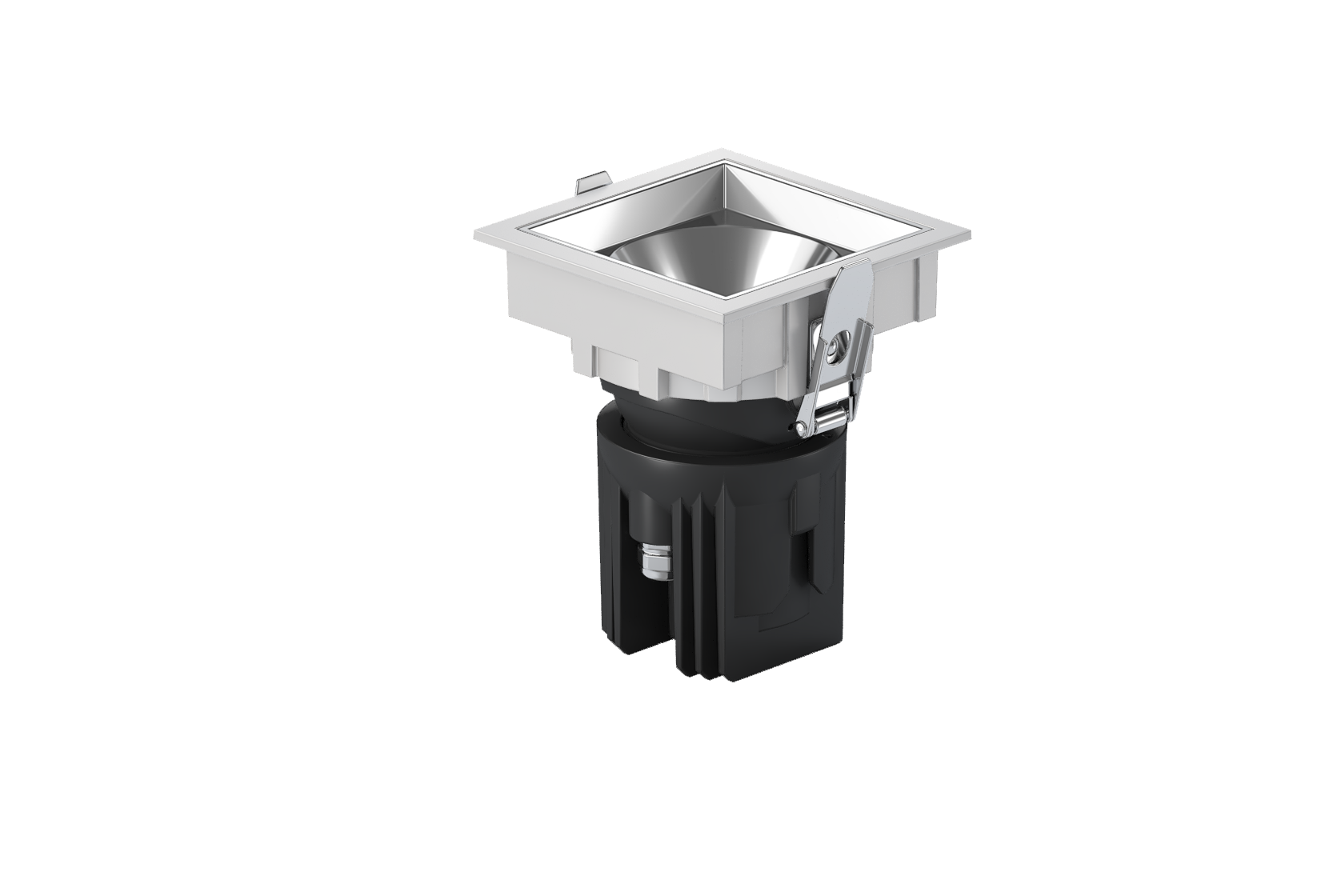

Skybat G2 Module Downlight-Wet Rated
ACCESSORIES
|
|
|
|
|
| |
|
|
PRODUCT DETAILS
|
|
|
|
| KEY FEATURES

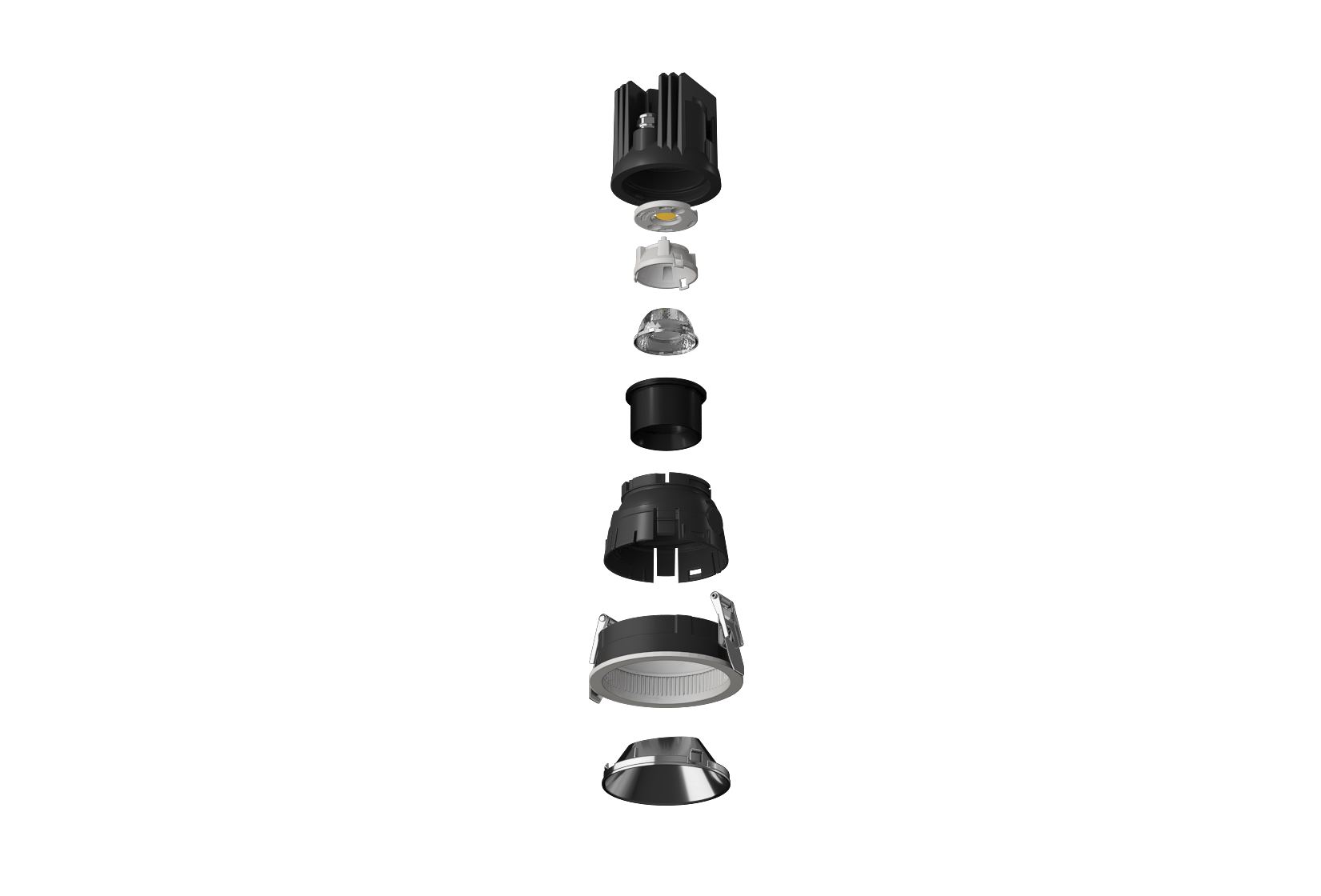

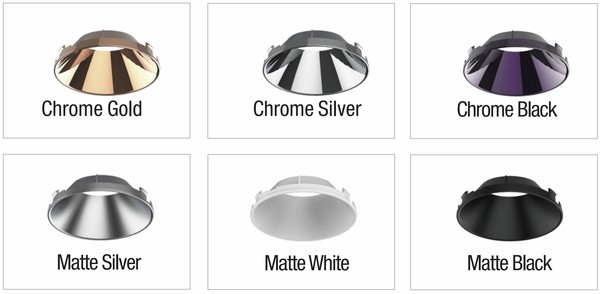

Module Cob Engine with various trims, reflectors, and optic lens It offers 1cct, 5cct, dim to warm and tunable white options Type IC Rated -Approved for Direct Contact with Insulation Air-Tight, Damp/Wet Location, Insulated and Non Insulated Ceilings 30°tilt with a 360° horizations External Driver Inside Connection Box -No Junction Box Needed Quick Installation for Remodel and New constructions Triac Dimmable with most CL dimmers 120V input 0-10V Dimmable Option with 100V to 277V/347V input.
|
Item No.
| Mounting | Voltage | Wattage | CRI | Color Temp | Optics | Driver | Options | Trim Finish |
| LBT-2"LJRES-G2-XX | Remodel；
New Construction | 120Vac 100-277Vac 100-347Vac 220-240Vac | 8W
| 80Ra+
90Ra+ | 3CCT 5CCT DTW 2700K-6500K | 15° 24° 36° 55° | Triac Dim. 0-10V Dim. Dali Dim. On/Off only | Standard
EM Backup | White Black Silver Brush Nickel |
| LBT-3"LJRES-G2-XX | 12/15W |
| LBT-4"LJRES-G2-XX | 20W |
| LBT-2"LJSES-G2-XX | 8W |
| LBT-3"LJSES-G2-XX | 12/15W |
| LBT-4"LJSES-G2-XX | 20W |
