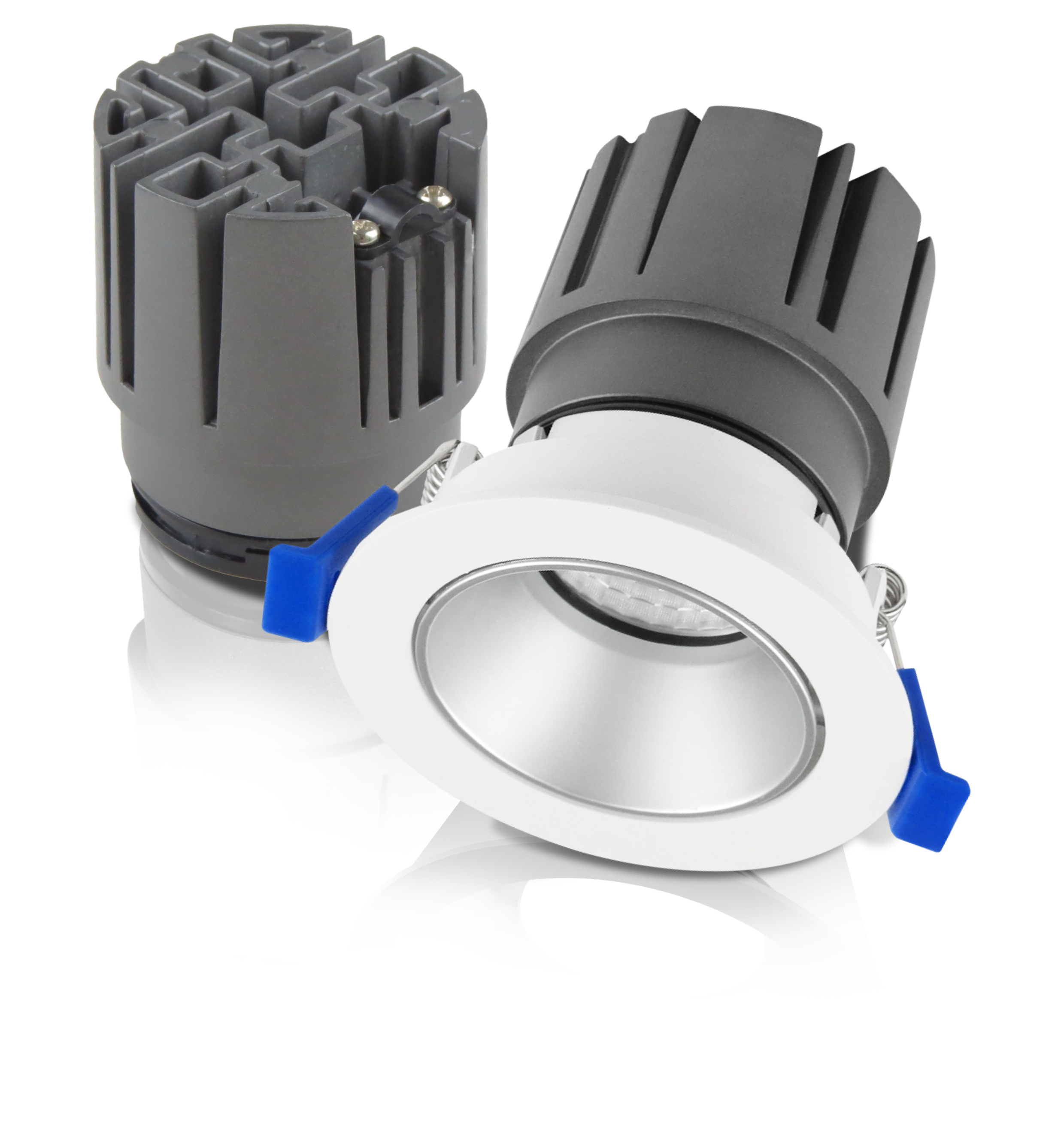

3" Modular Gimbal Downlight Family

              SIZE & MODELS

This collection has taken all the features of our   traditional Orbit series and combined it with deep   regressed design. The deep regressed design   puts the light unit even further back into the fixture   than our traditional Orbit series, thus eliminating   all possible light glare. Whether it be a remodel or   new construction application, the Orbit-R series   will bring a high-end look at an affordable price to.

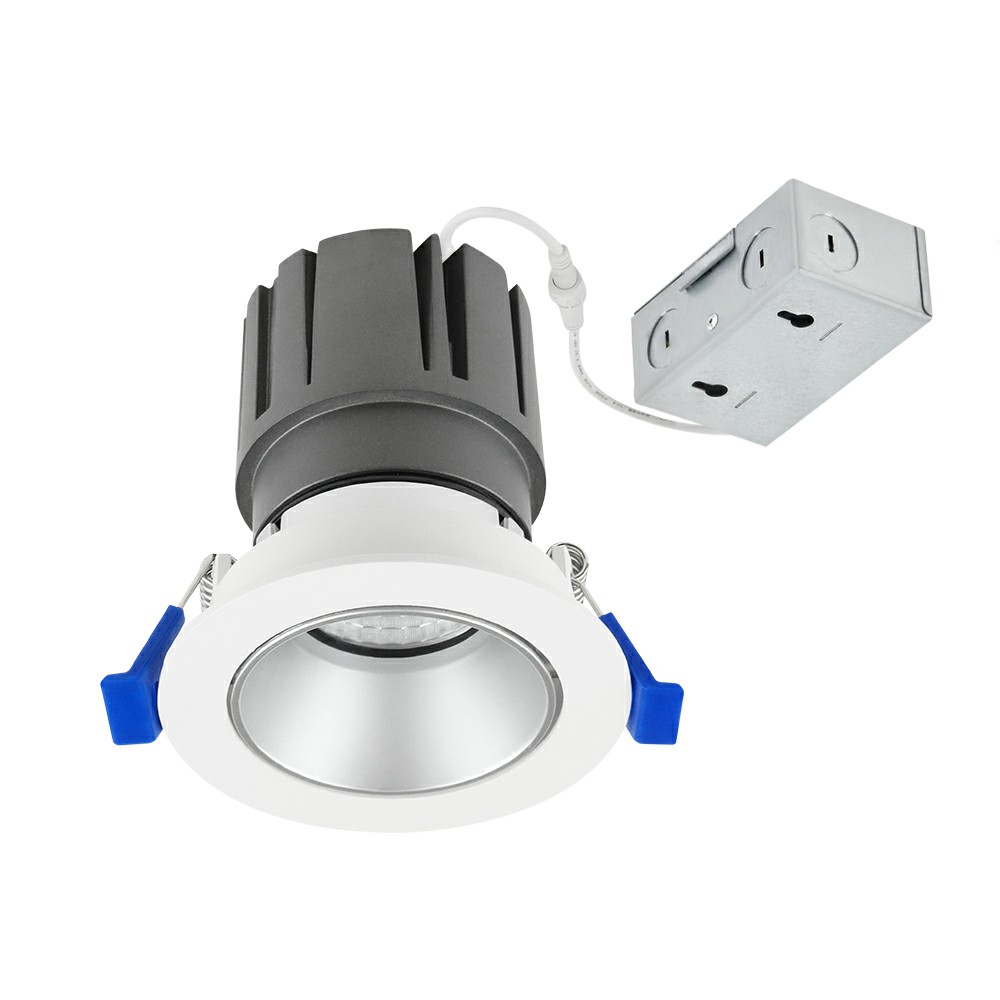

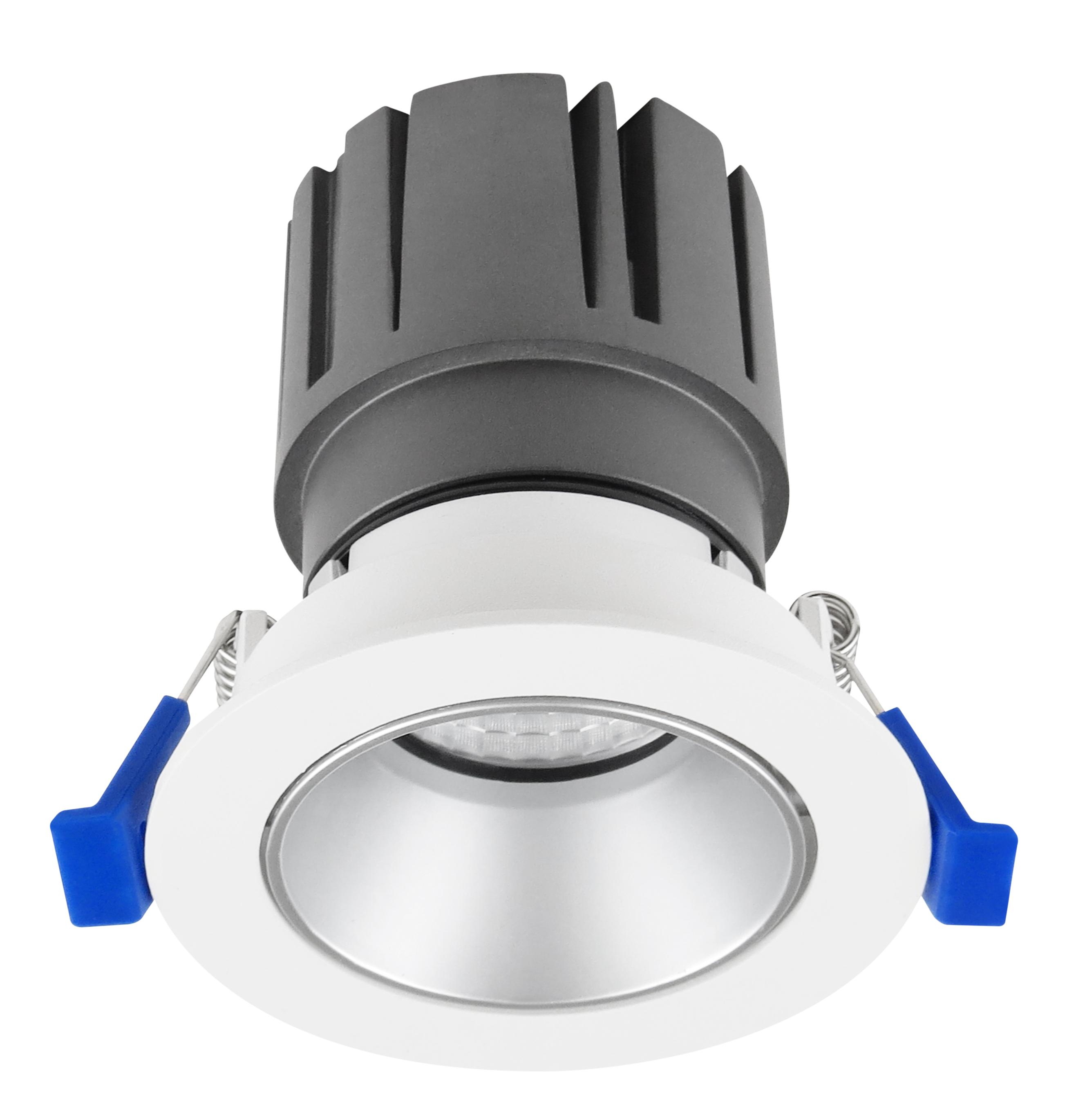

3'' Adjustable   LED Module Downlight

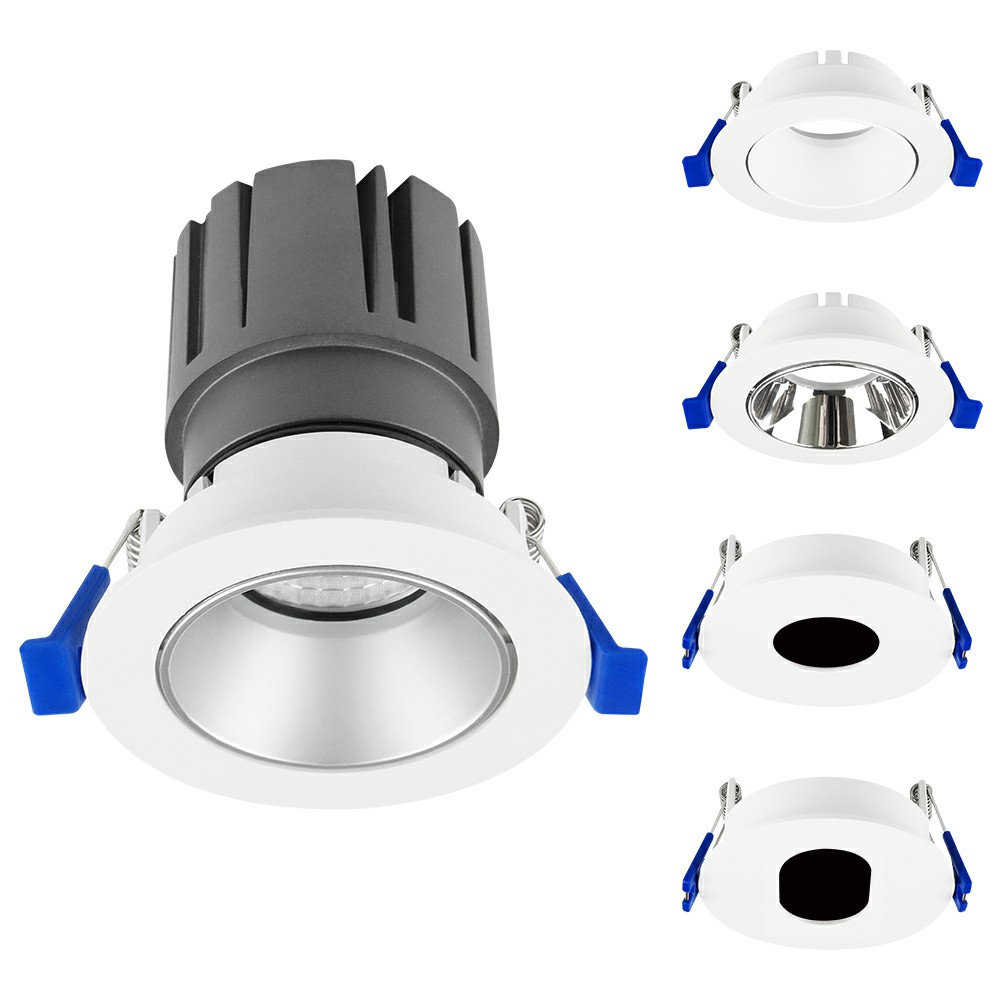

Trims replaceable solution to LED downlights

Type IC rated, Dimmable & Flicker Free

Multiple Colors and DTW available

Easy and quick twist-in installation

No Housing Required For Remodel or New construction

Suitable For Indoor Damp Locations

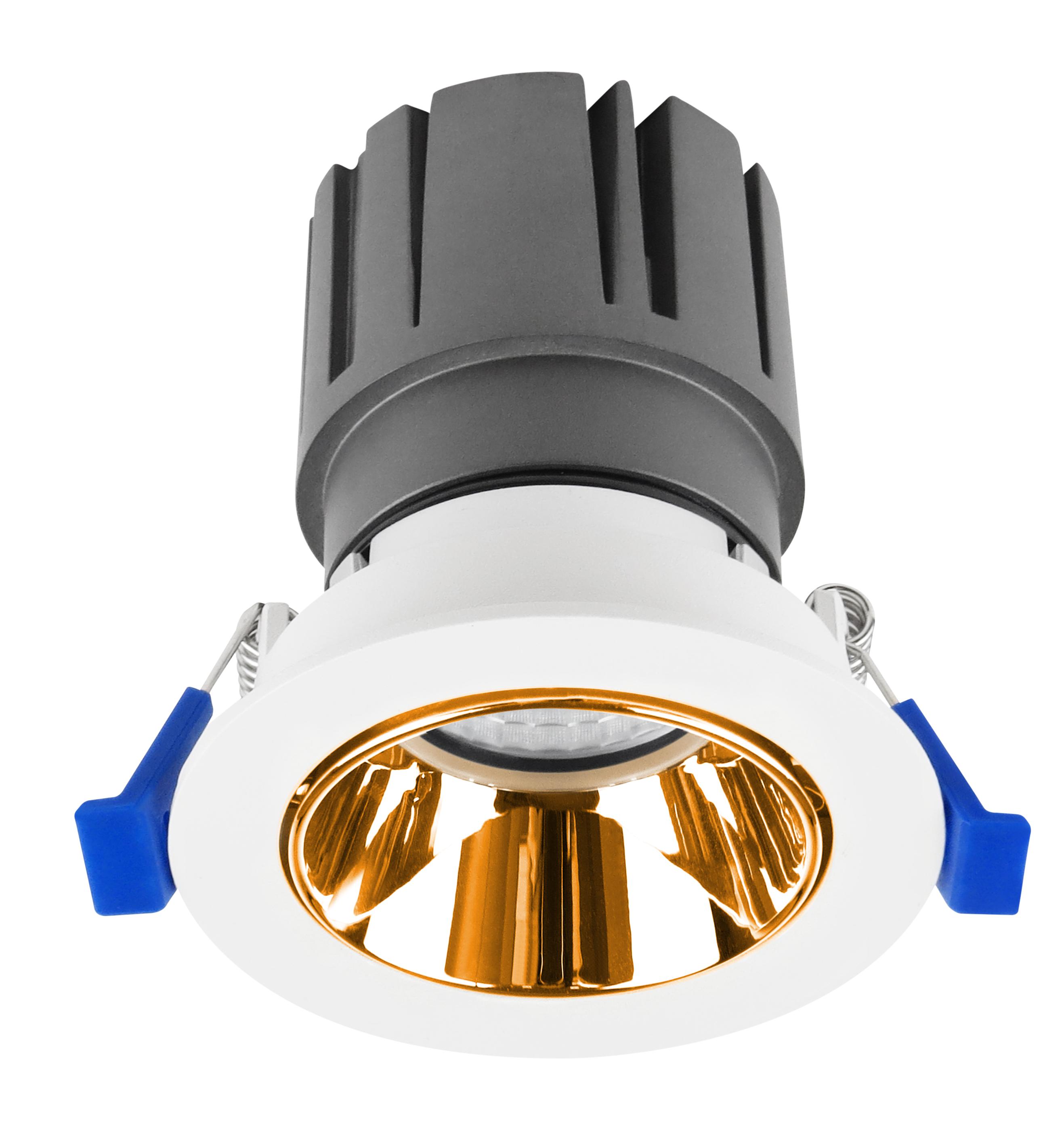

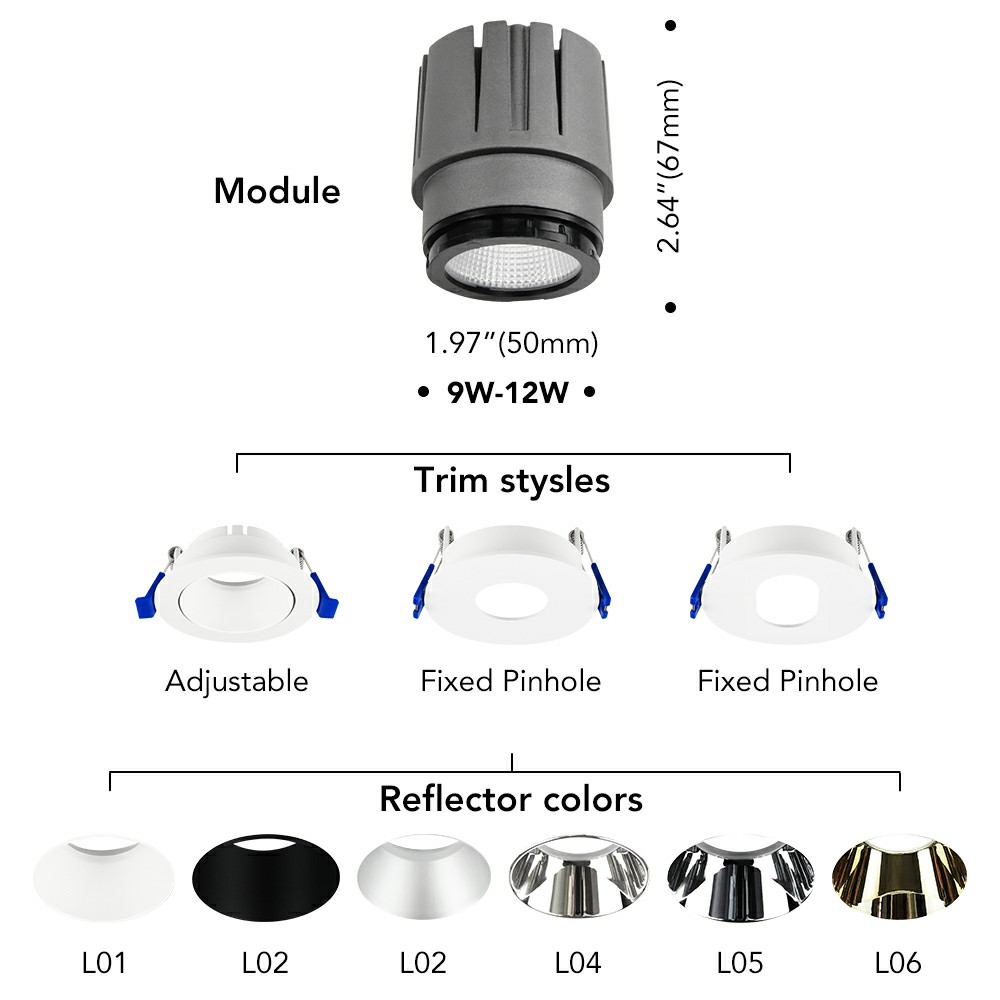

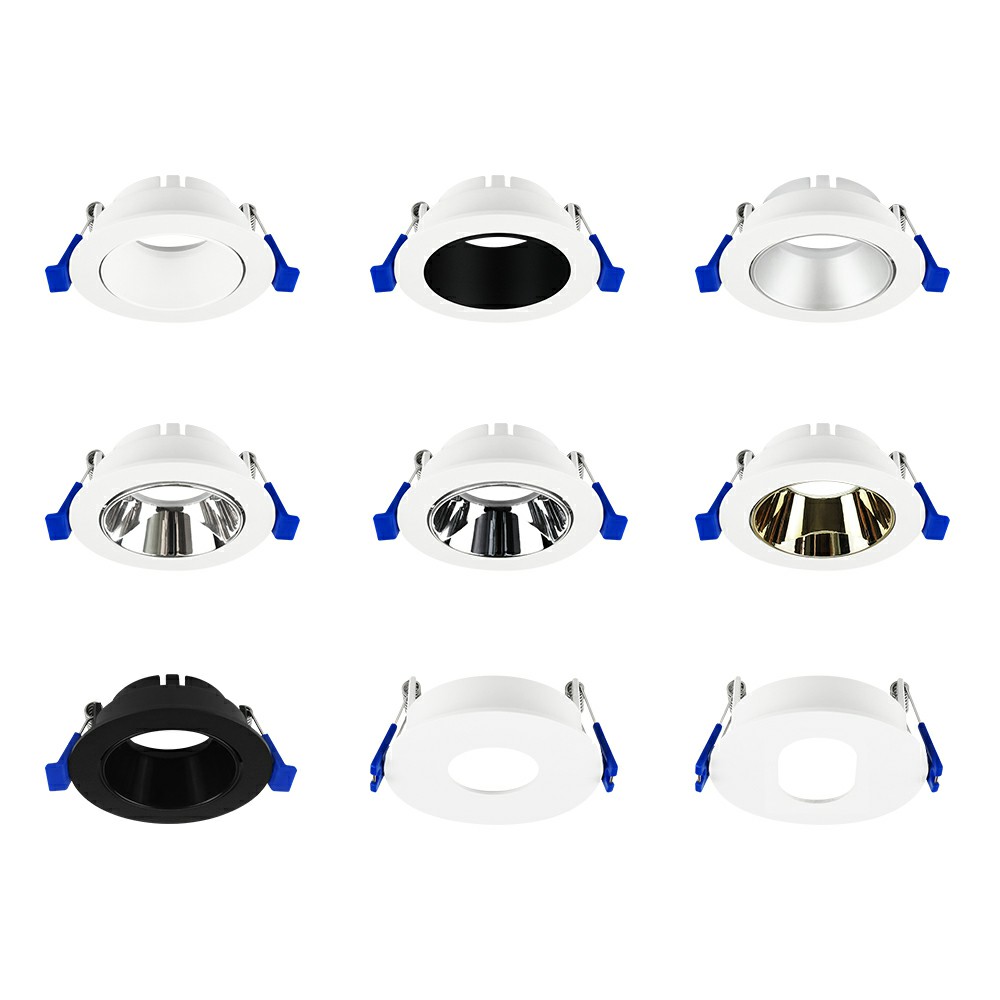

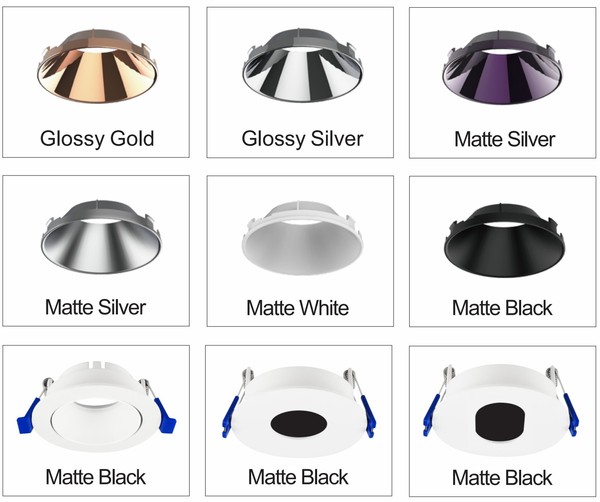

    Reflector colors

Light output up to 1700 LM

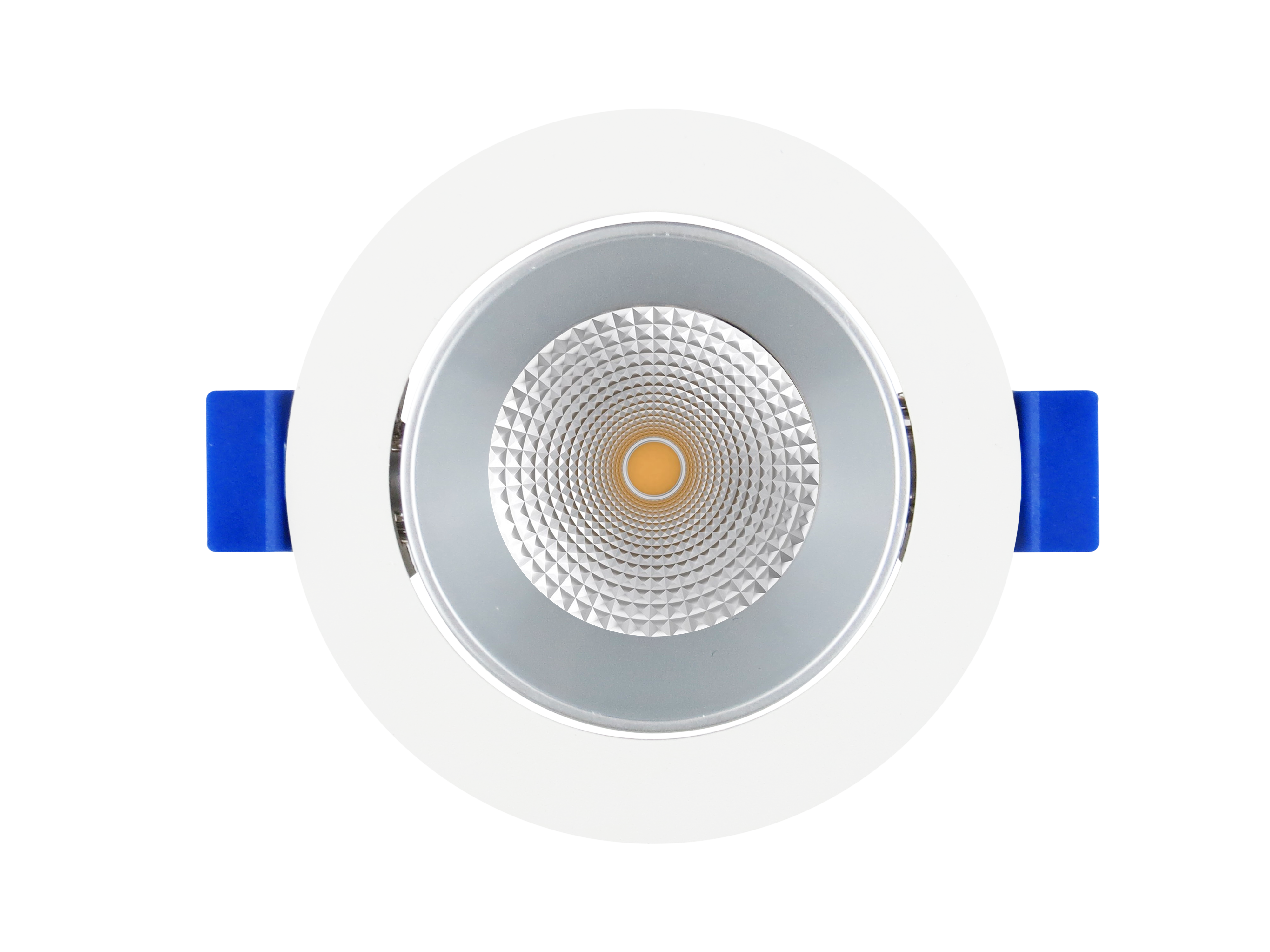

Deep regressed LED light source

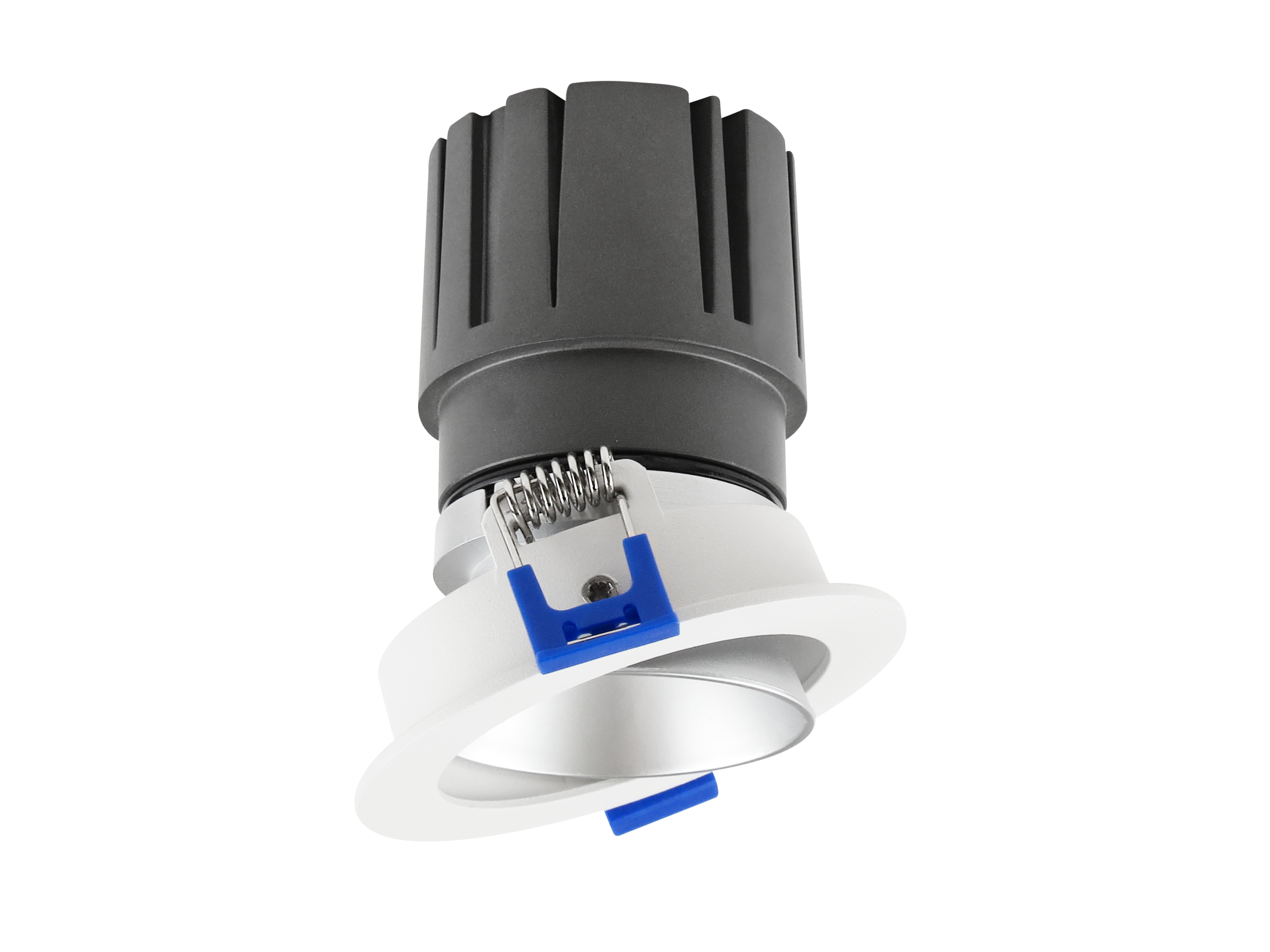

High-end design with glare control feature 36° focused spot with a 360° rotation

               SIZE & MODELS

    SIZE & MODELS

This collection has taken all the features of our   traditional Orbit series and combined it with deep   regressed design. The deep regressed design   puts the light unit even further back into the fixture   than our traditional Orbit series, thus eliminating   all possible light glare. Whether it be a remodel or   new construction application, the Orbit-R series.

    SIZE & MODELS

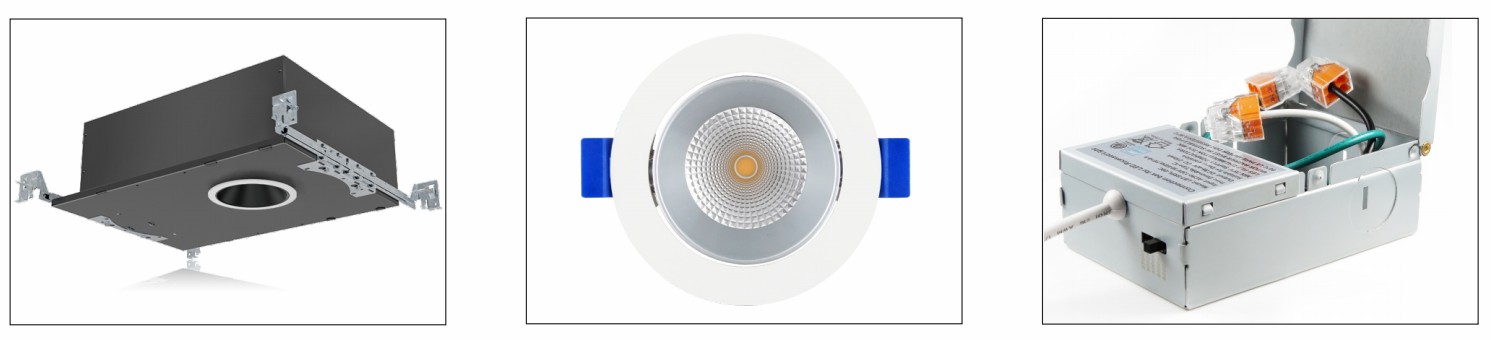

MOUNTING PLATES WITH HANGER BARS

SPRING CLIPS AND FLANGES JUNCTION BOX

Recommended for new

construction or suspended

ceiling applications.

Heavy duty mounting clips are

designed for sturdy installation

and prevent springs from falling

off during installation.

“Quick Connect” wire connectors

for a quick wire connection

Standard 120V dimmable driver;

optional 120-277V drivers

available.

New

Construction

100-277Vac

100-347Vac

220-240Vac

3CCT

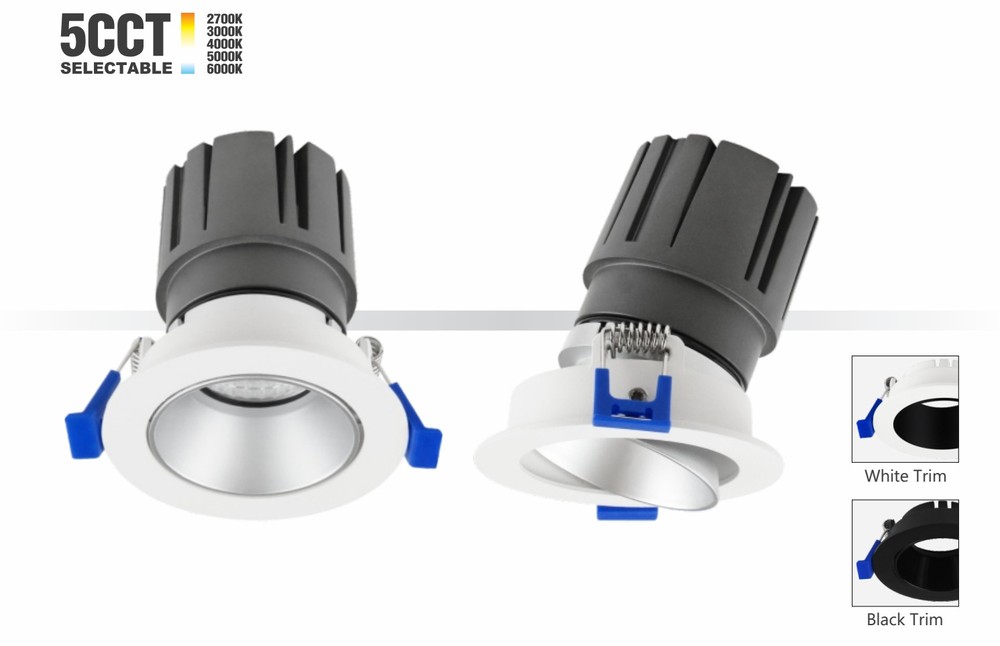

5CCT

DTW

15°

24°

36°

0-10V Dim.

Dali Dim.

On/Off only

EM Backup

Black

Silver

Brush Nickel
