Wall Light - Type3

DESCRIPTION



Download-Catalogue.png Download-Specification.png Download-Test-Report.png Download-Installation-Notes.png

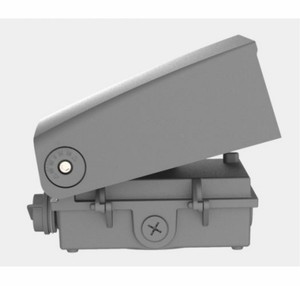

WALL LIGHT

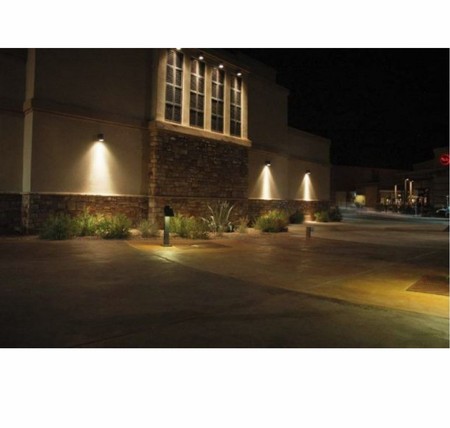

Application scenarios:

Suitable for warehouses, factories, villas,

and residential buildings.






    DETAIL






    PRODUCT   FEATURES






  • radiator : ADC12

  • Lens : UV stabilized polycarbonate lens

  • lens angle : 70°*130°

  • protection grade :IP65 WET LOCATIONS

  • All radiators have leakage holes to prevent water accumulation

  • Equipped with an IP68 respirator as standard, the interior of the lamp will

    not produce water vapor due to pressure differences

  • Available in high and low voltage (120-277V, 120-347V,

    277-480V) options to meet different customer needs

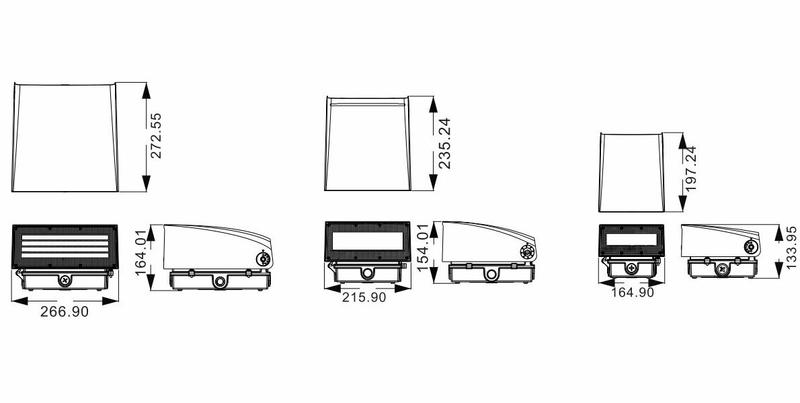

PRODUCT SIZE



Item No.MountingVoltage
WattageCRIColor TempOpticsDriverOptions

Size   (mm)

Cutout   (mm)Trim Finish
LBT-HWBD-40W

Wall Mount

100-277Vac

100-347Vac

20W/30W/40W80Ra+
90Ra+

2700K

3000K

3500K

4000K

5000K

65°

95°

0-10V Dim.Standard

EM Backup

266x272x164/White

Black

LBT-HWBD-80W

40W/60W/80W

215x235x154/
LBT-HWBD-120W80W/100W/120W164x197x133/
