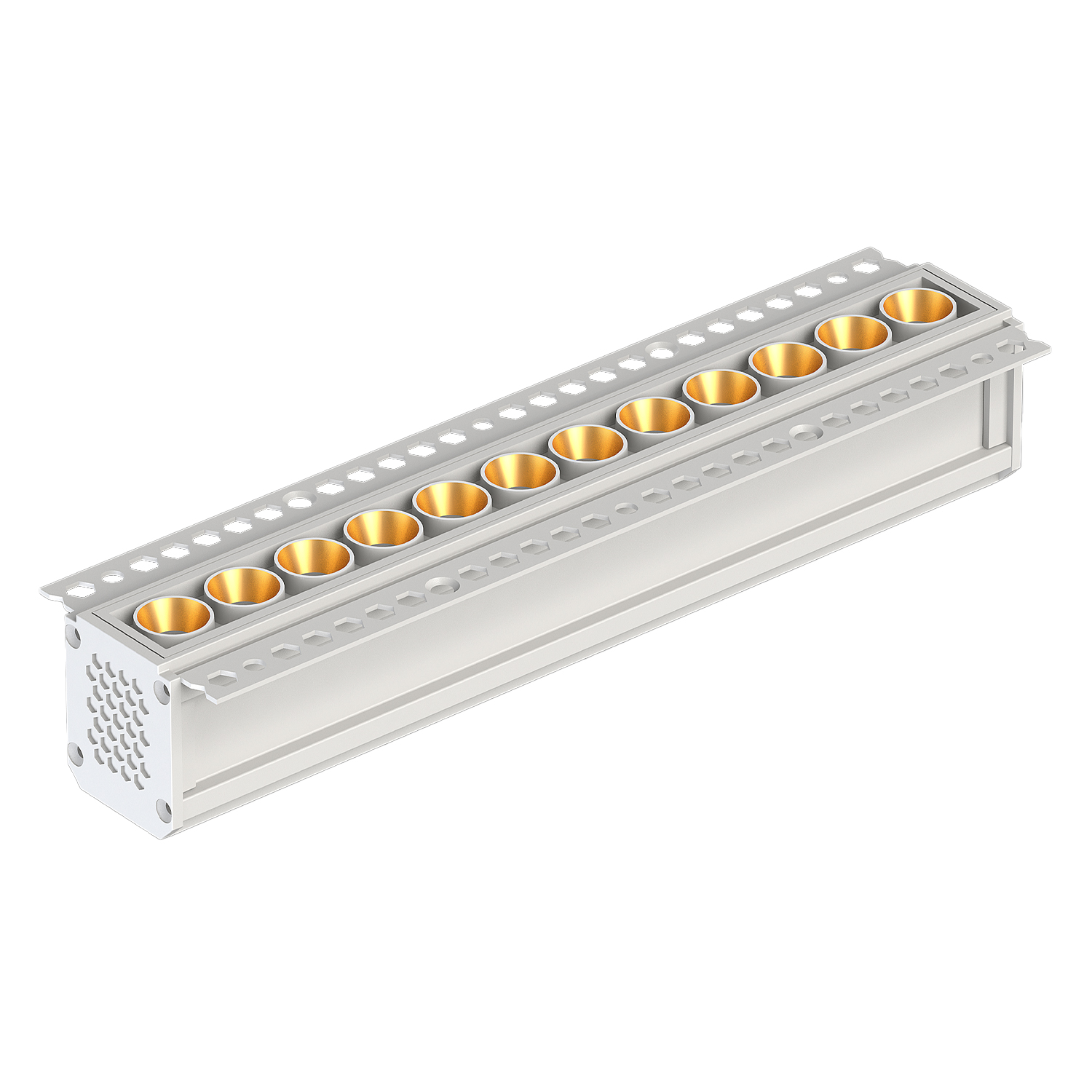

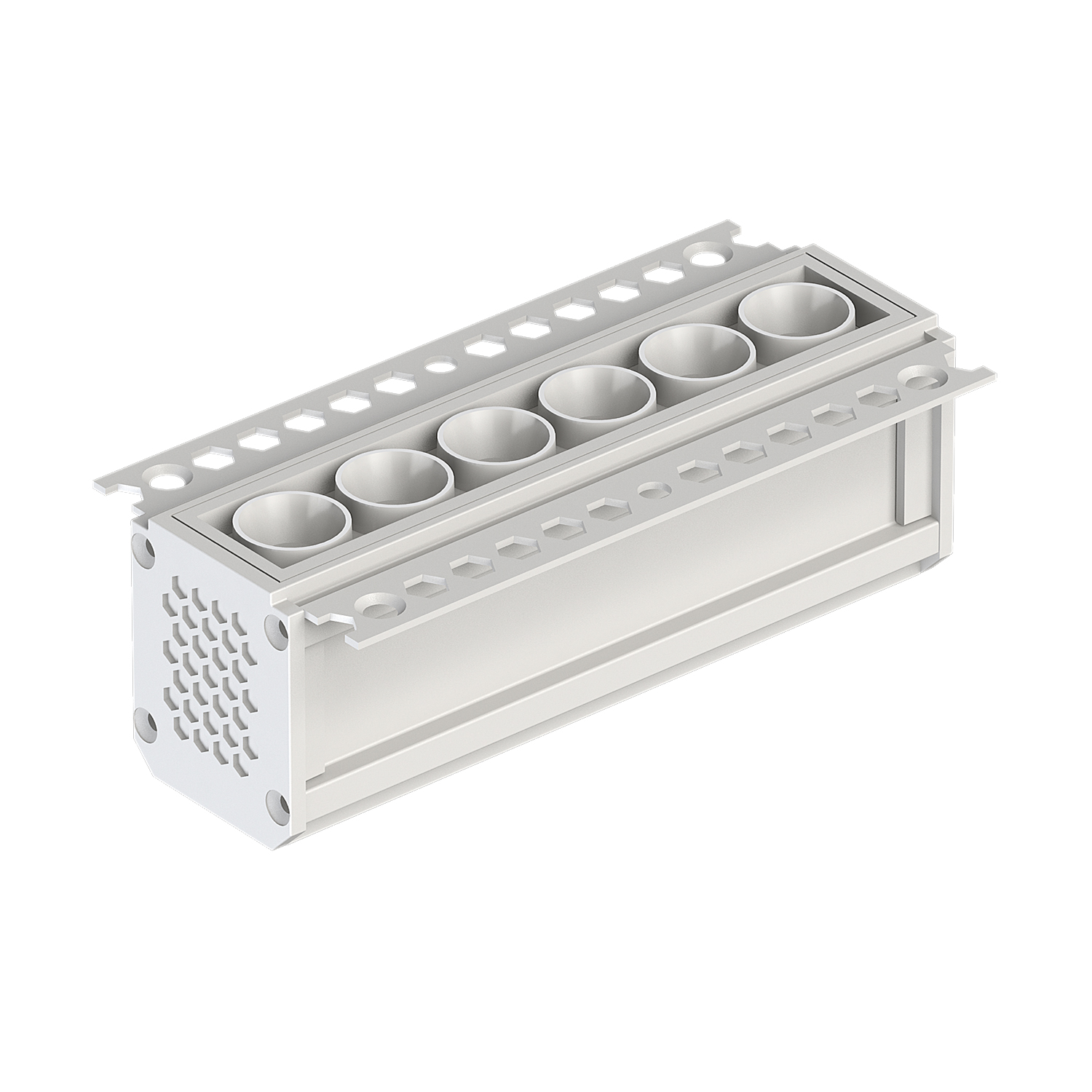

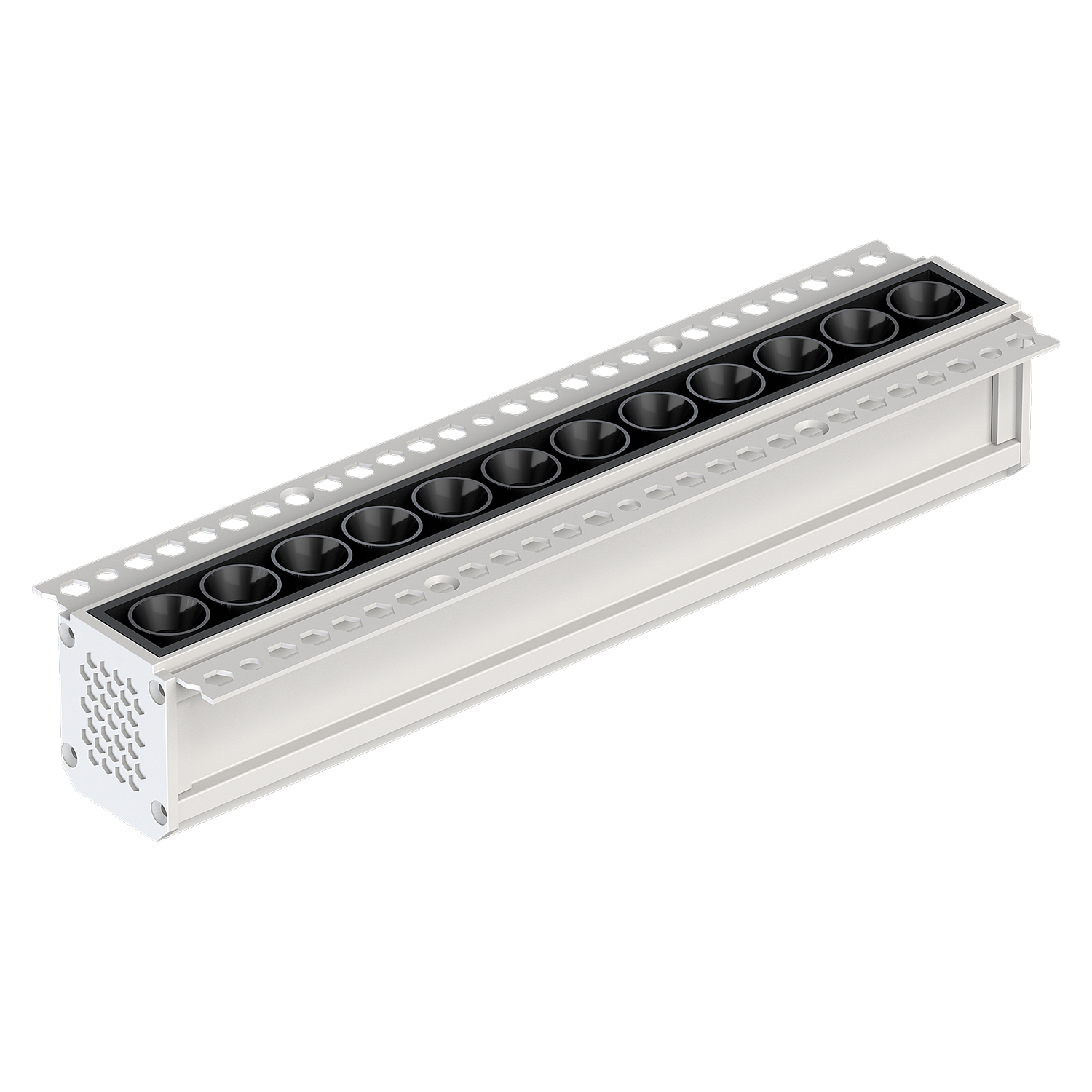

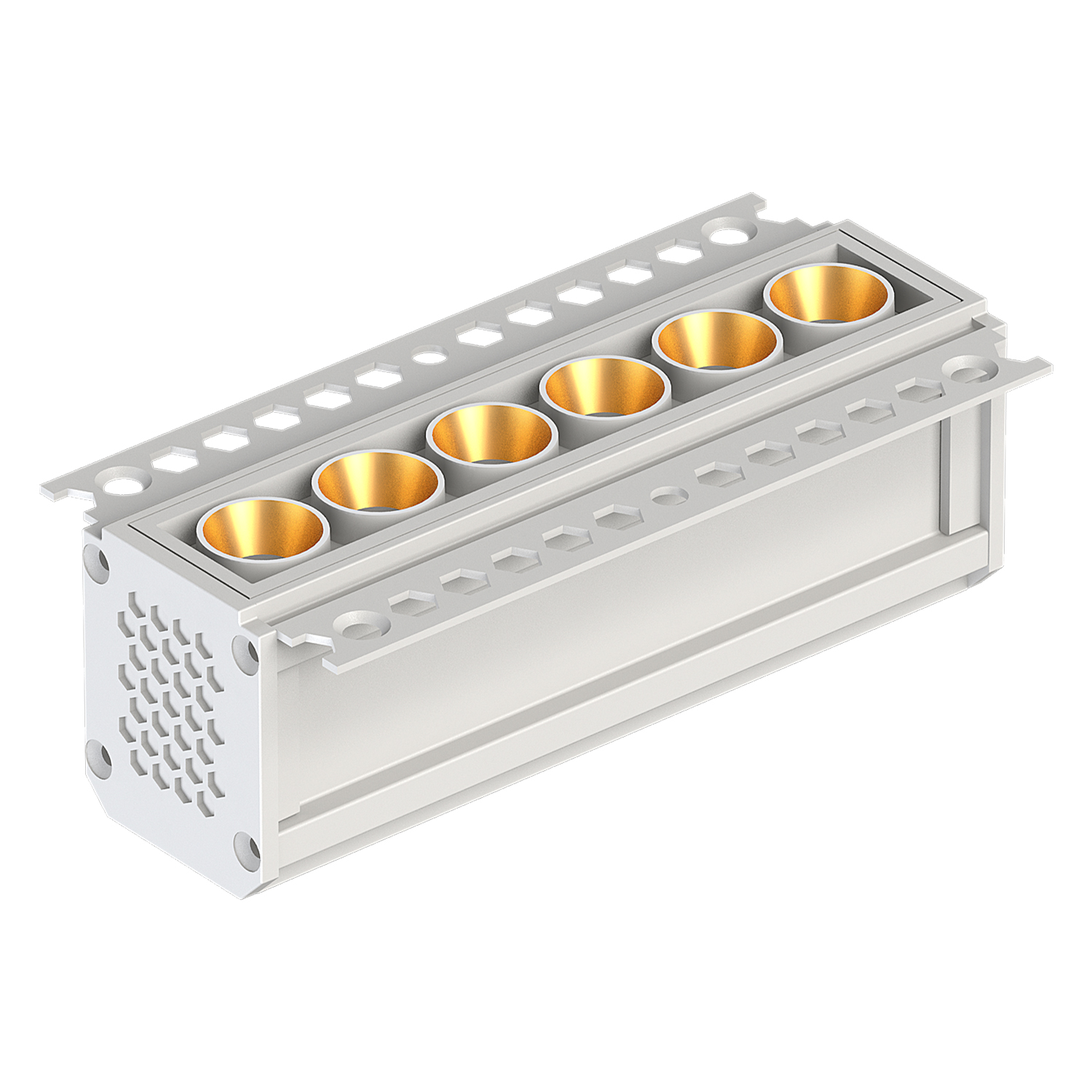

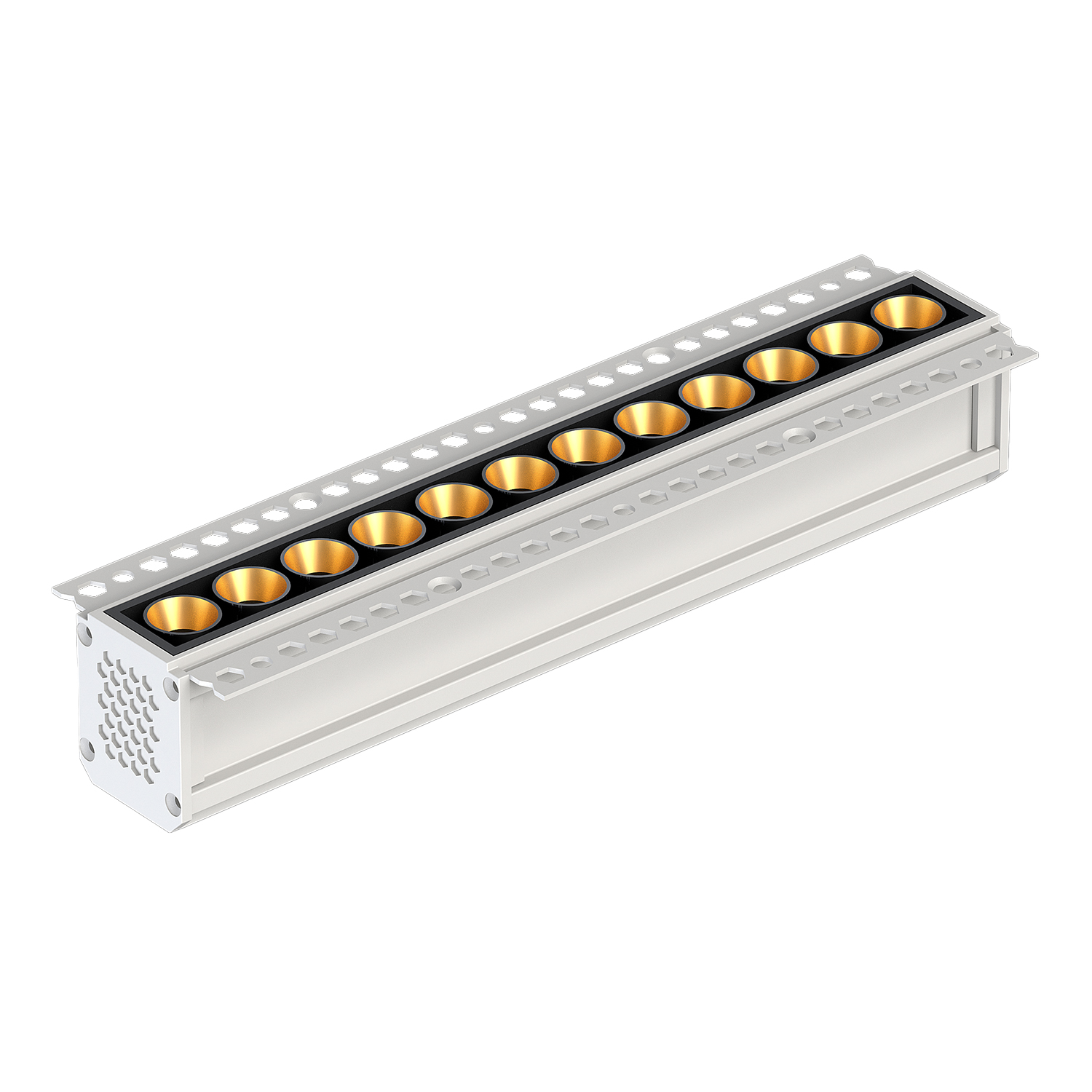

LED Recessed Anti-Glare Seamless Linear Light
| APPLICATION AREA
It could be widely used in
Residential: Home decoration, dining room, hallway; Architectural: Exhibition center, museum, concert hall, art gallery; Commercial: Shopping mall, jewelry shop, showcase, restaurant, hotel,Extensively applied in backlighting, concealed lighting, channel letter lighting. |  |

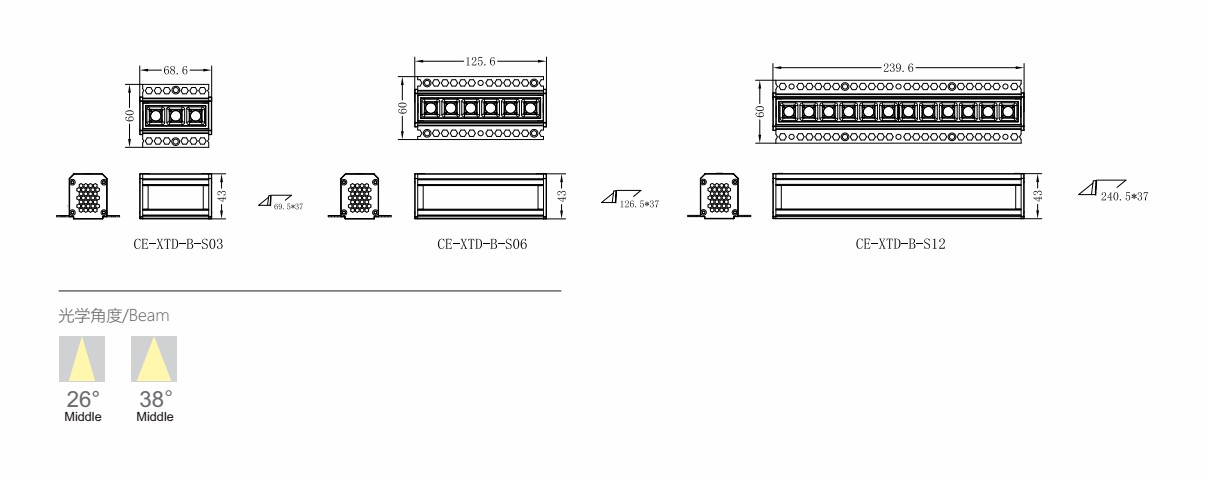

SIZE
Full Spectrum Lighting System Multiple Linear Light Modular Family
|
The lower the CRI, the more distorted of color will be. The higher the CRI, the stronger the color reduction. Our led lamp adopt world top class LED chip, CRI can be Ra≥80 or Ra≥90(also can custom made Ra≥97).
Application: 1. CRI 90-100 Accurate requirements for color places. 2. CRI 80-89 Correct judgements for color places. 3. CRI 60-79 Medium requirements for color places. 4. CRI 40-59 Lower requirements for color places.
|
|
| Our lamp have more kinds of beam angles and Color temperature, meeting the different demands for lighting. | Lens options for different light output. |
|
|
|
|
|
 |  |
| 15° | 30° | 45° |  |
 |
| 3000K | 4000K | 5000K | power box |

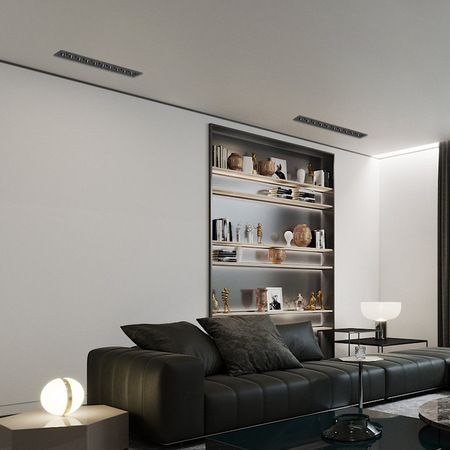

SCENARIO
| Item No. | Mounting | Voltage
| Wattage | CRI | Color Temp | Optics | Driver | Options | Size (mm) | Cutout (mm) | Trim Finish |

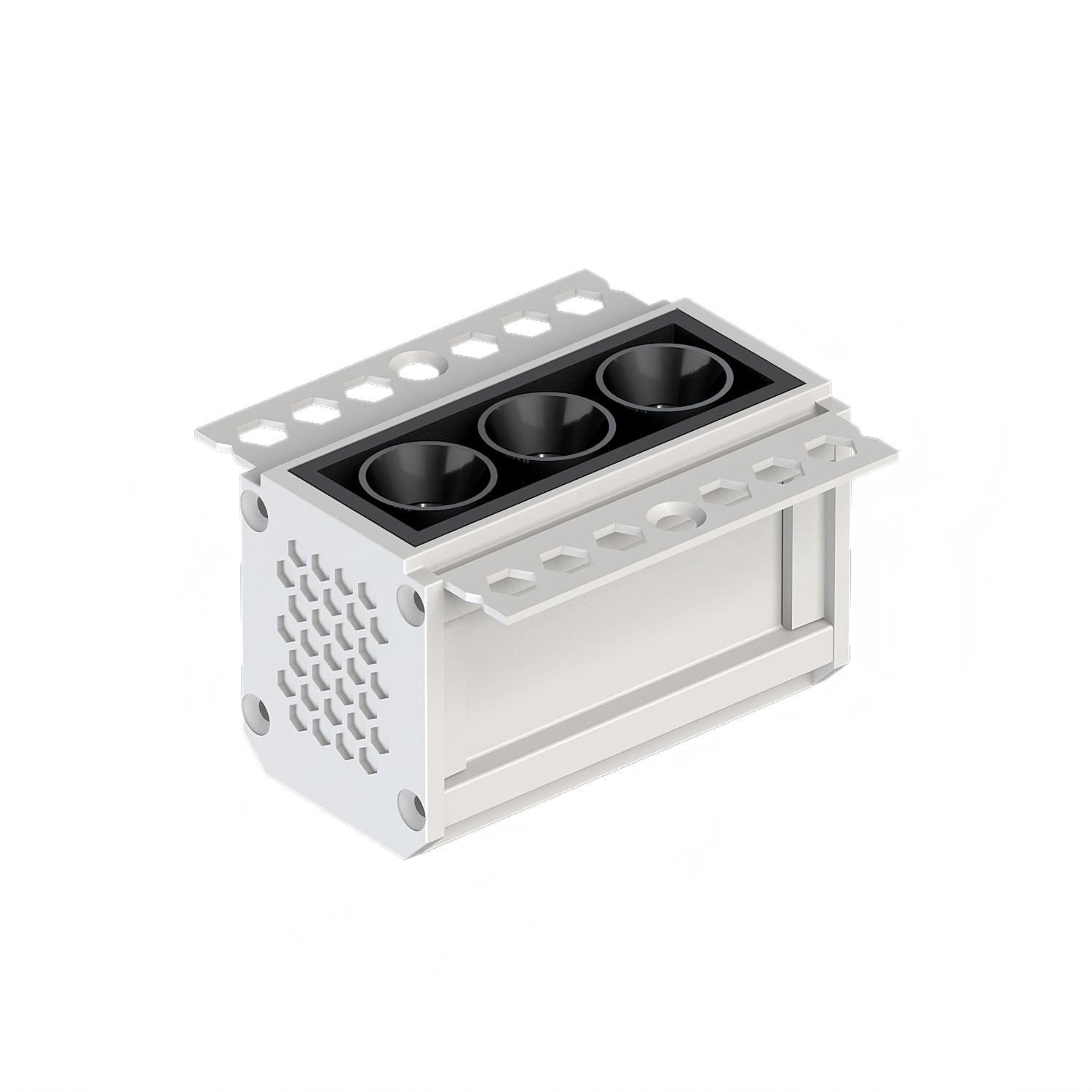

| CE-XTD-B-S03 |

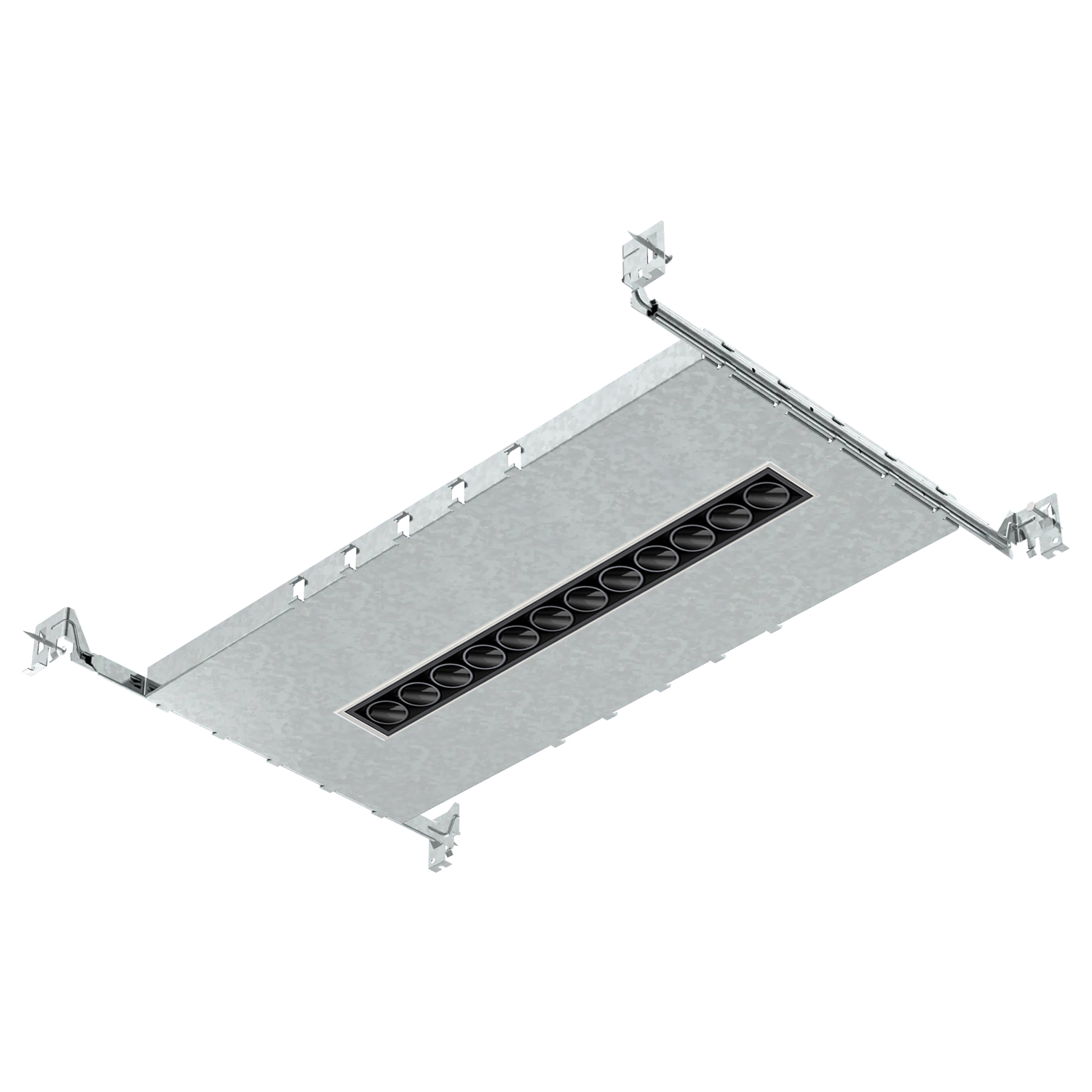

Remodel；
New Construction | 10120Vac 100-277Vac 100-347Vac 220-240Vac | 6W | 80Ra+
90Ra+ | 3CCT 5CCT DTW 2700K-6500K
| 26° 38° | Triac Dim. 0-10V Dim. Dali Dim. On/Off only | Standard
EM Backup | 68.6*60*43
| 69.5*37
| White Black Silver Brush Nickel |
| CE-XTD-B-S06 | 10W | 125.6*60*43 | 126.5*37
|
| CE-XTD-B-S12 | 20W | 239.6*60*43 | 240.5*37 |
