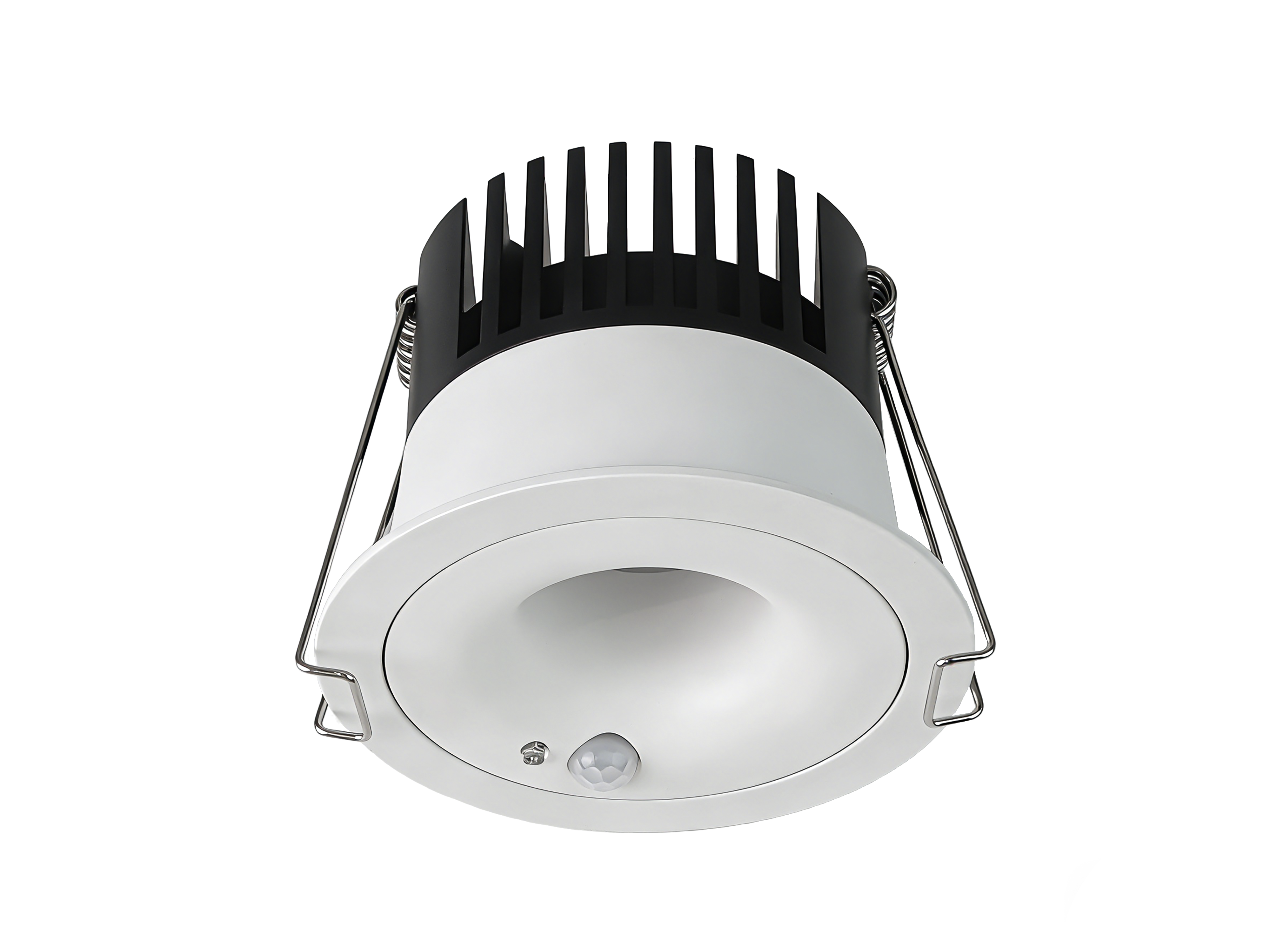

Motion Sensor Recessed LED Downlight
| DETAILS |
|
|
|
 |

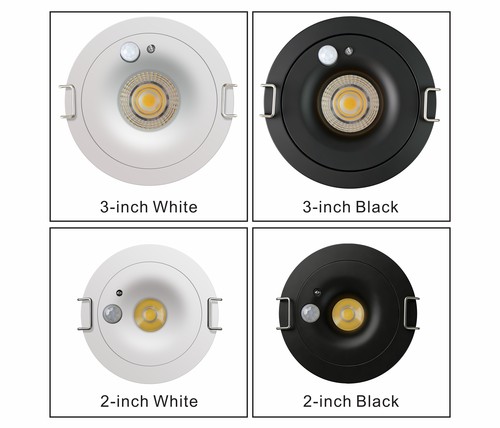

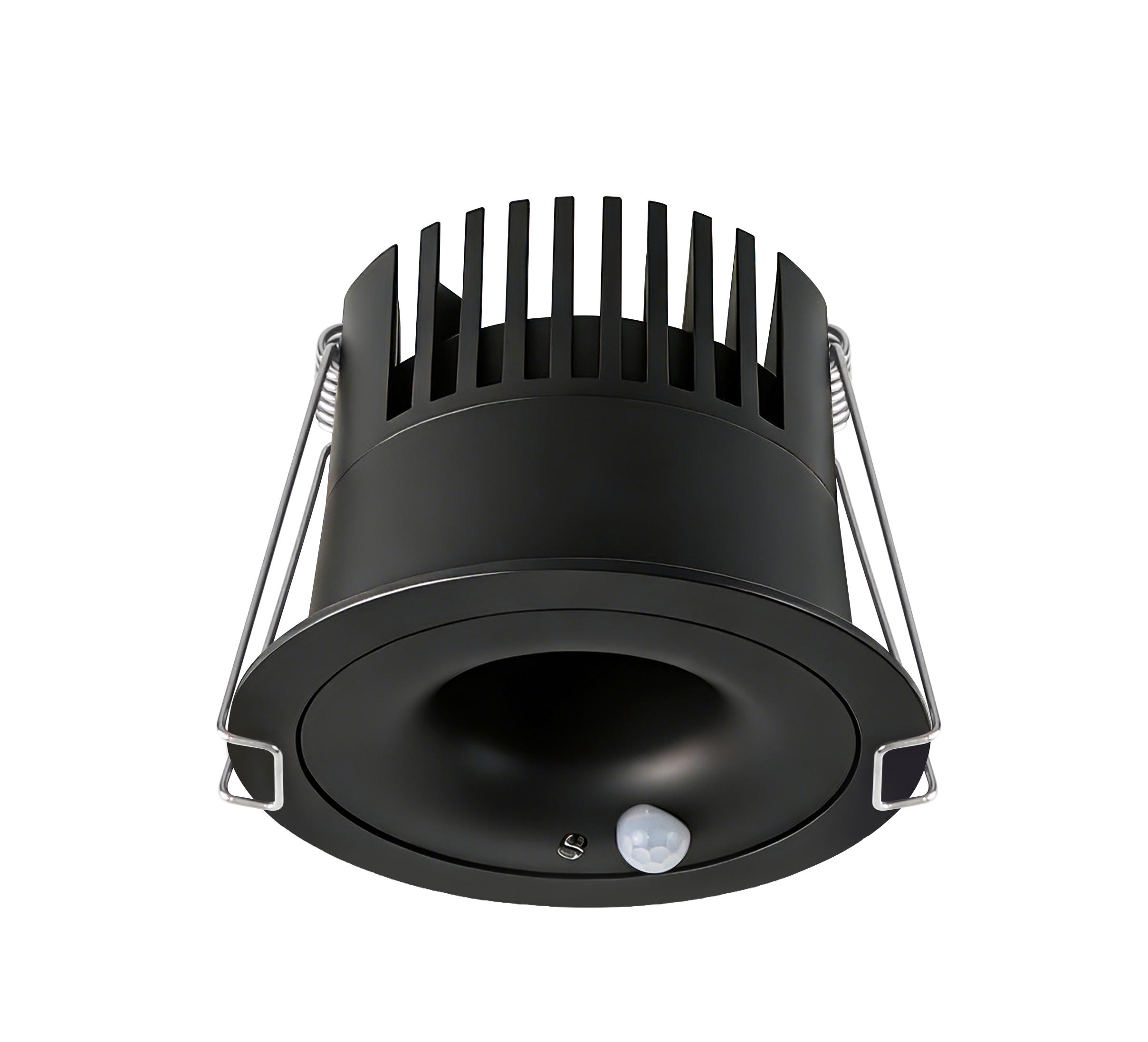

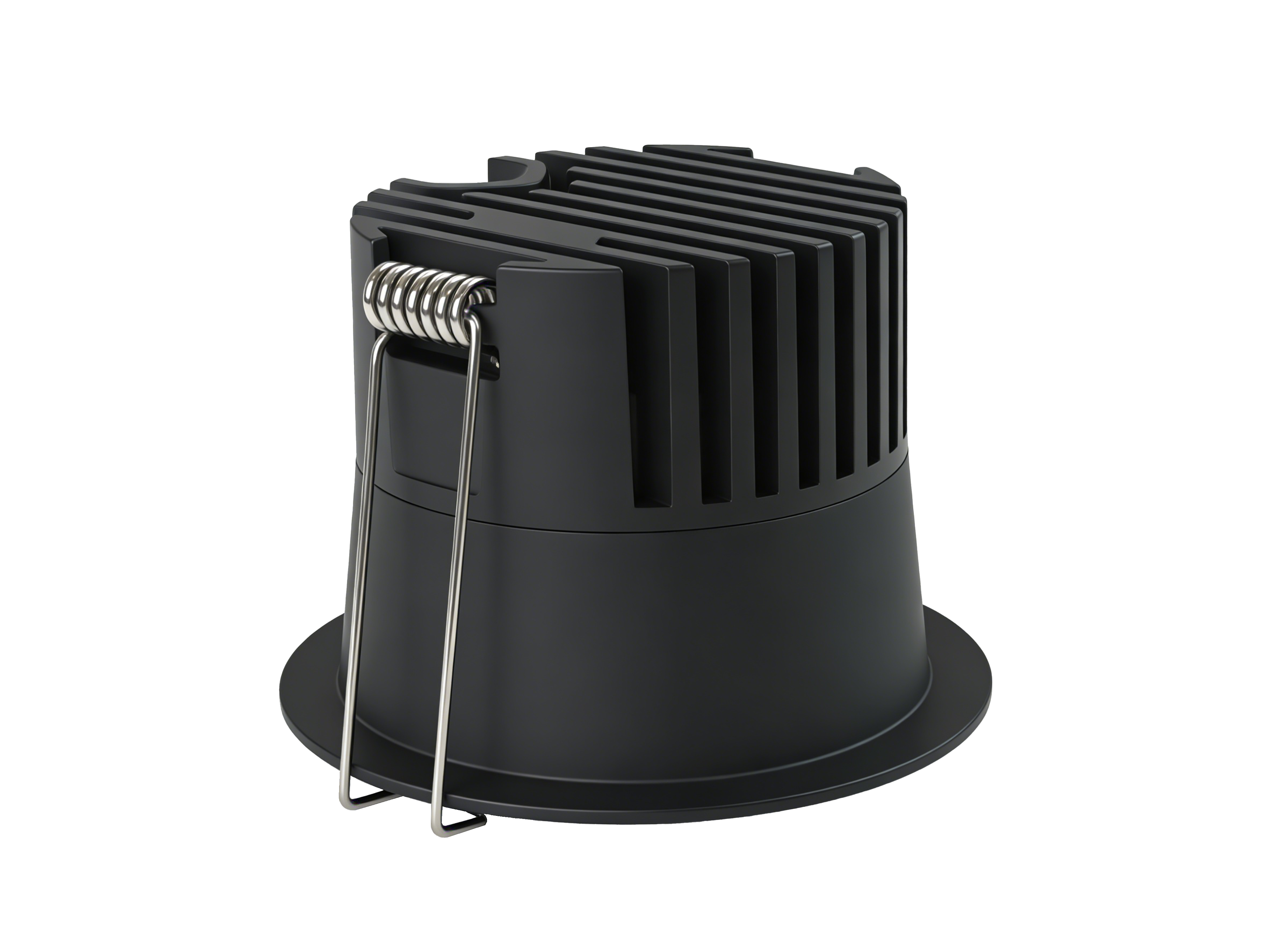

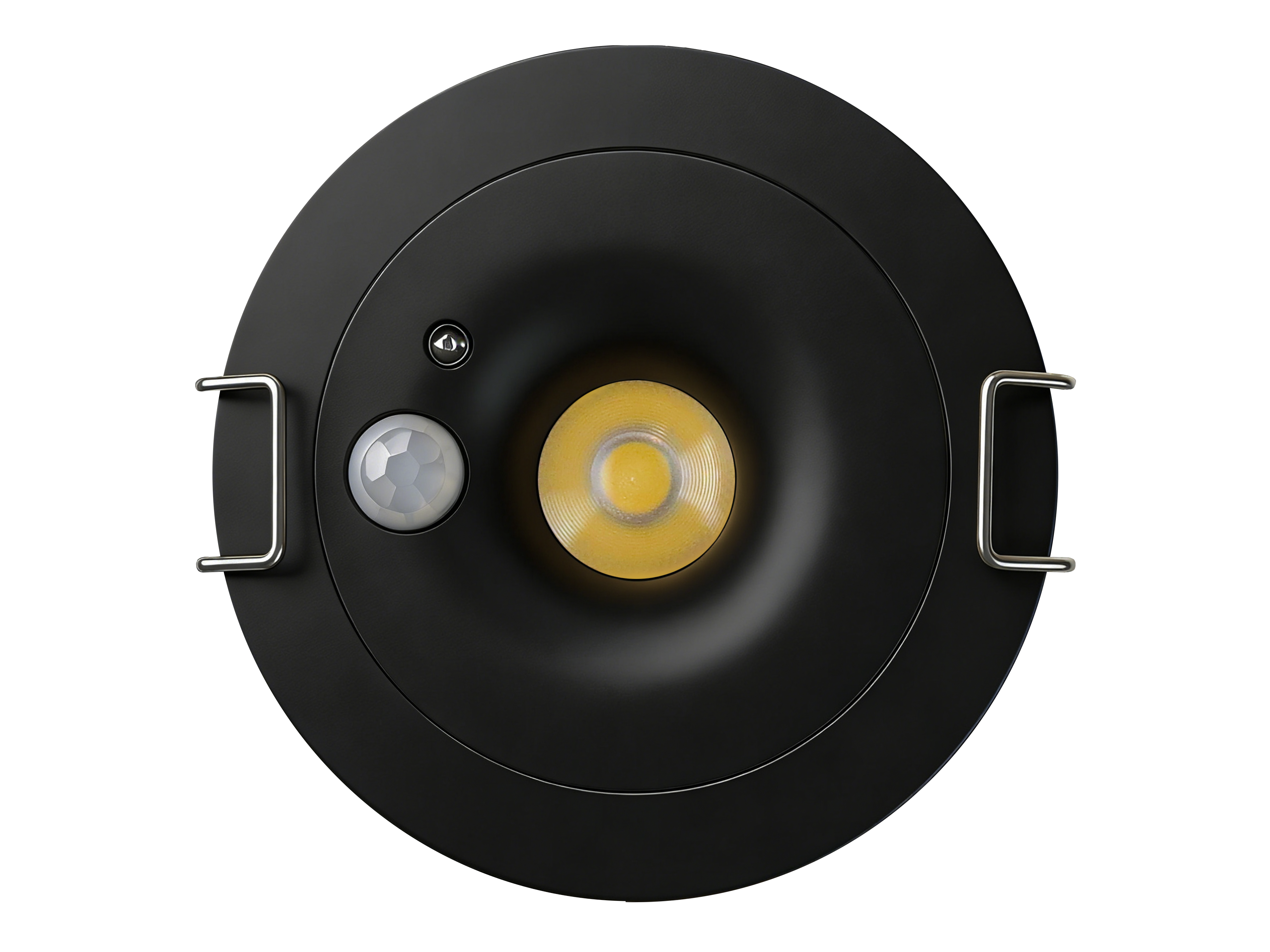

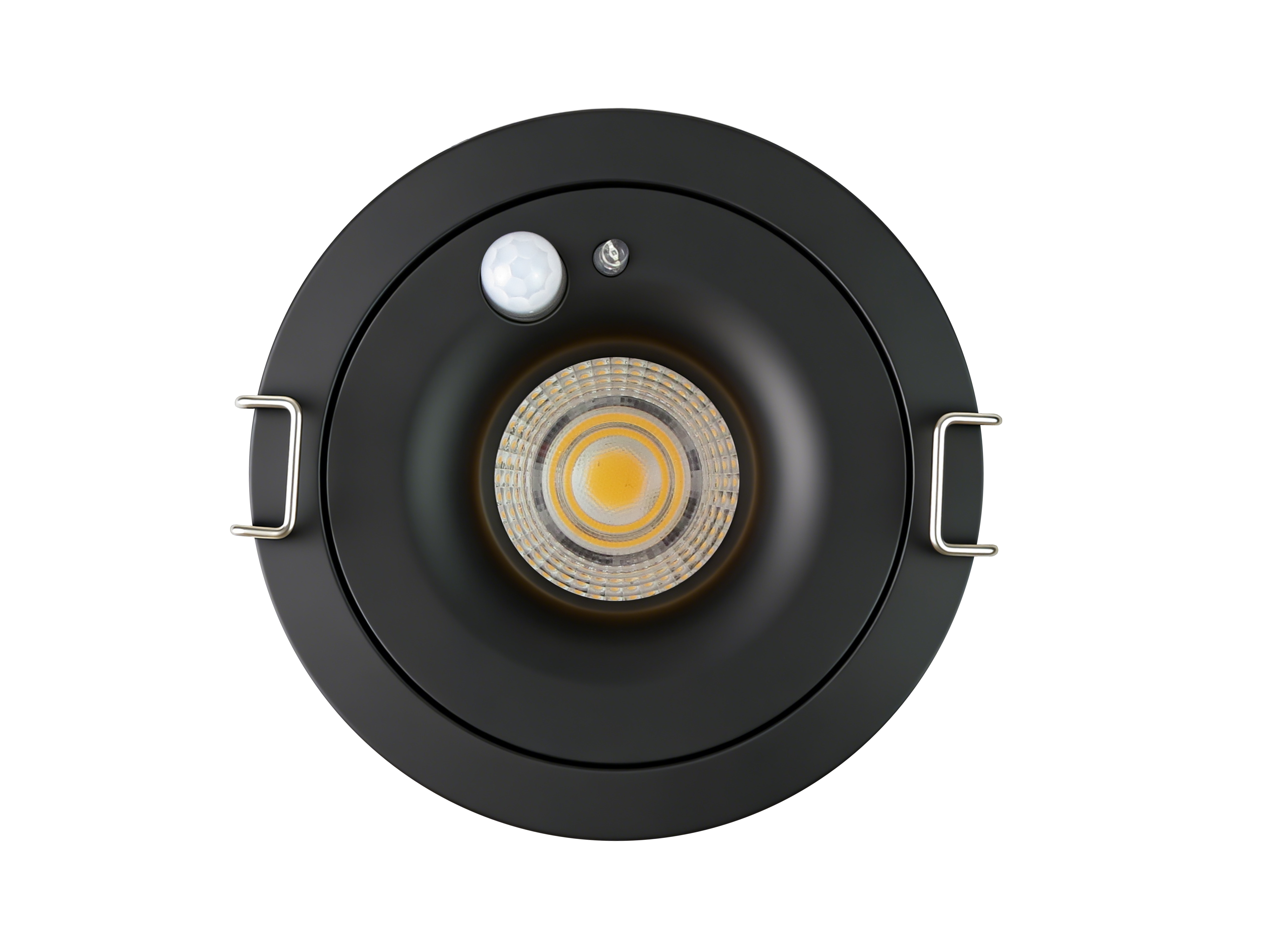

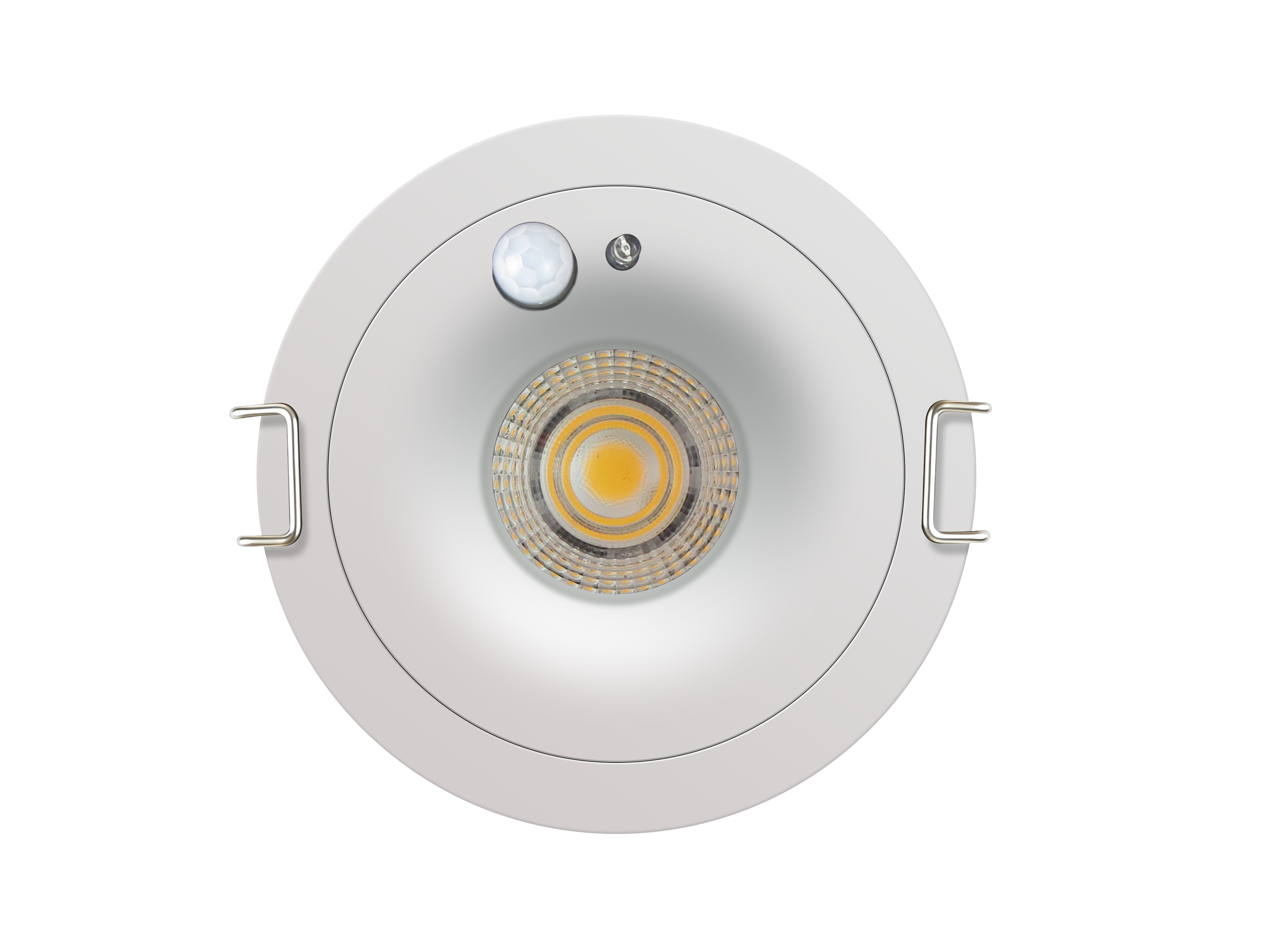

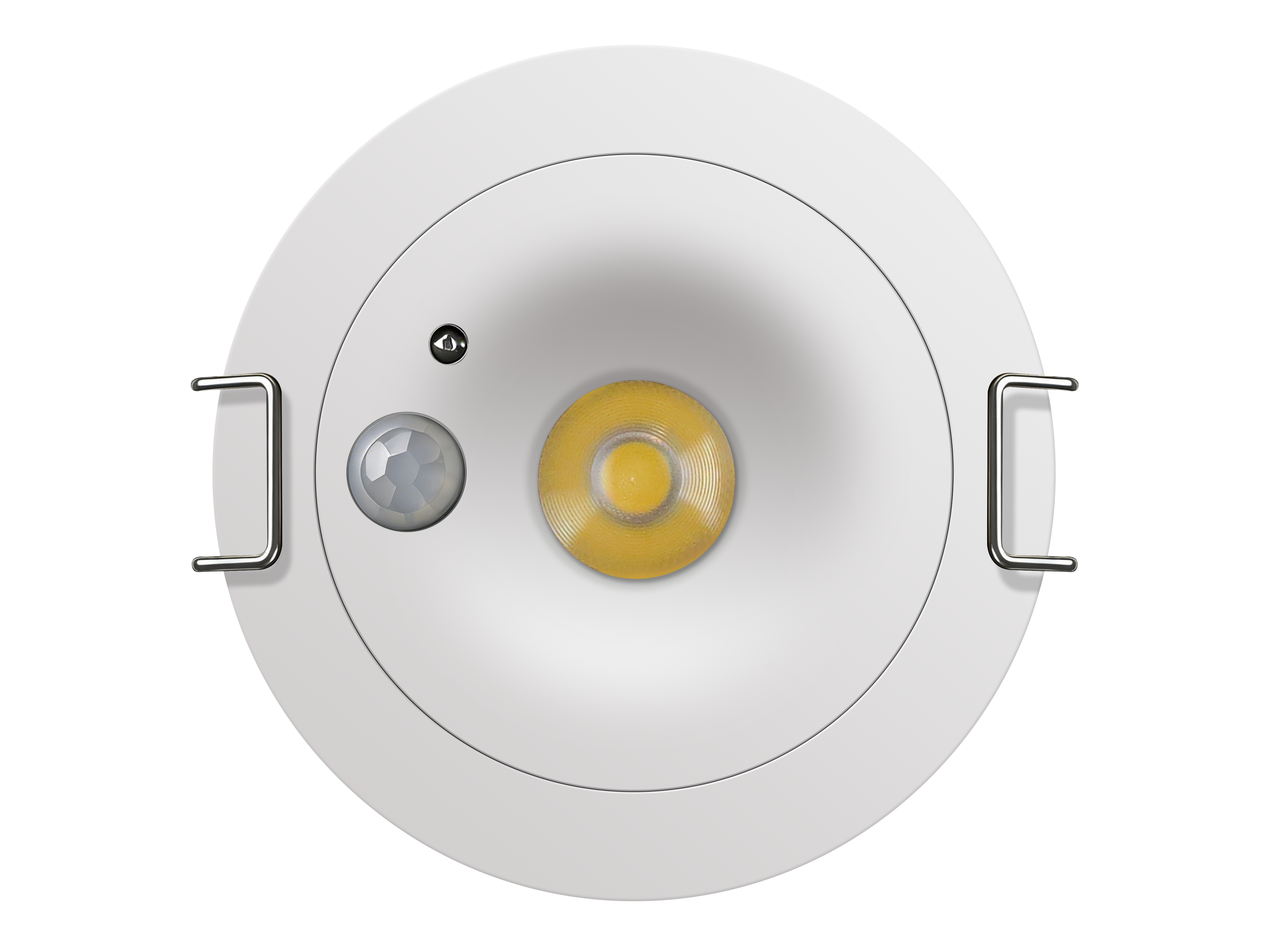

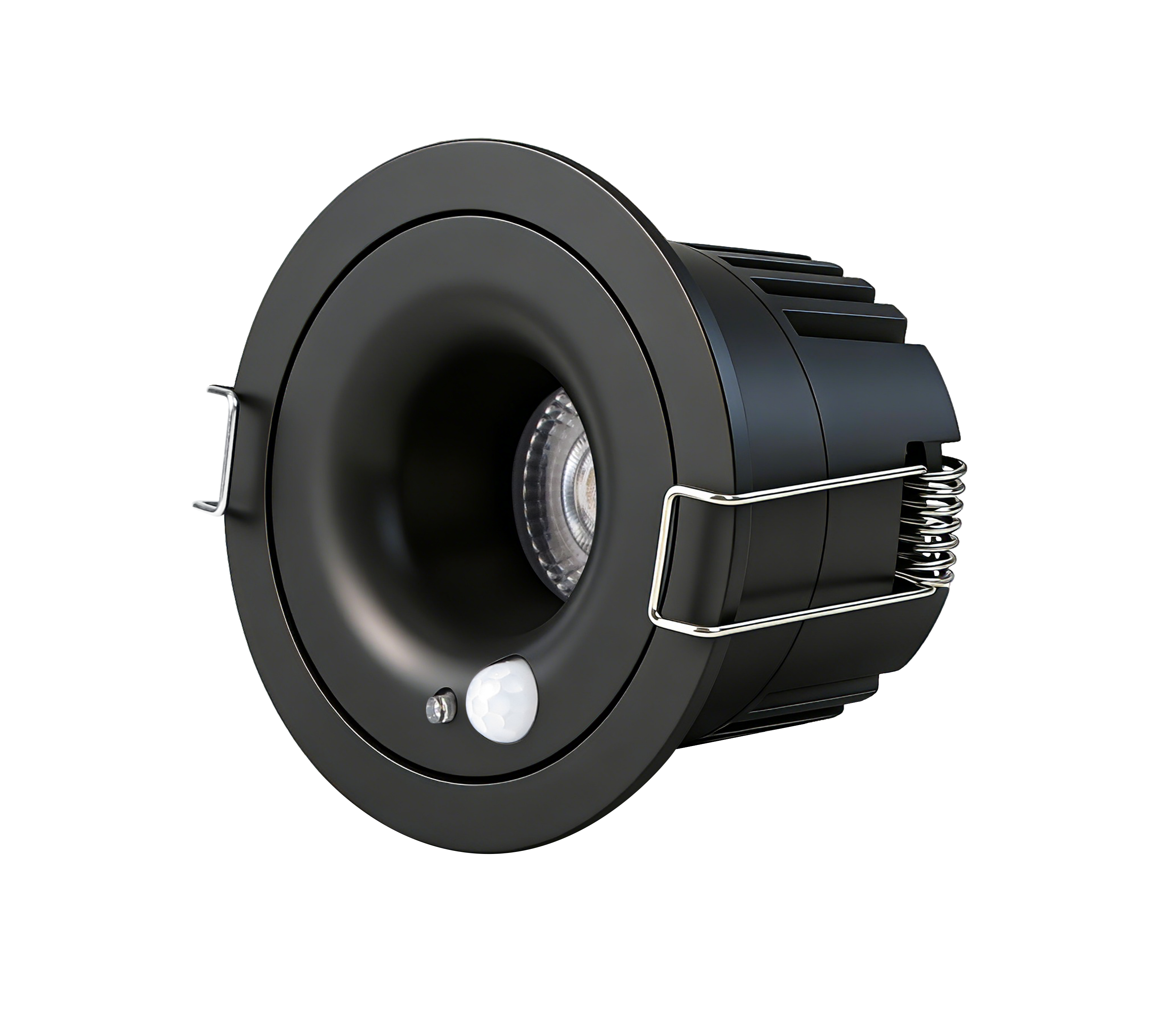

2" 3" Motion Sensor Recessed LED Downlight
Wattage and CCT Adjustable120V/277V AC power supply for standard Triac or0-10v dimmable performanceNIC rated housing must be kept 3” from insulation.Suitable for damp location.Remodel and new construction applications.cETLus listed conforming to UL1598 $ CSA250.0 std |
| Item NO. | Mounting | Voitage | Wattage | CRI | Color Temp | Optics | Driver | Options | Size(mm) | Cutout(mm) | Trim Finish |
| 2inch | Remodel；
New Construction | 120Vac 100-277Vac 100-347Vac 220-240Vac | 7W | 80Ra+
90Ra+ | 3CCT 5CCT DTW 2700K-6500K | 15° 24° 36° 60° | Triac Dim. 0-10V Dim. Dali Dim. On/Off only | Standard
EM Backup | φ70xH50 | φ55 | White Black Silver Brush Nickel |
| 3inch | 11W | φ85xH60 | φ75 |
|
|
|
|
| KEY FEATURES |
|
|
 |
LED SOURCE COLORS Power selectable4inch 15W-24W ; 6inch 20W-40W ; 8inch 30W-50W ; CCT adjustable:2700K-3000K-3500K-4000K-5000K DIMMABLE 0-10V Dimmable Option with 120V to 277V/347V input TRIM FINISH WH BK
|
RATINGS AND CERTIFICATIONS Non-IC rated & Air-tight Damp location rated ETL certified for USA and Canada LED LIFE 50,000-hour LED life EASY INSTALLATION Each unit includes a junction box with driver, pressure-fit spring clips and Quick Connect wire connectors for fast and easy installation
|
SCENARIO APPLICATION

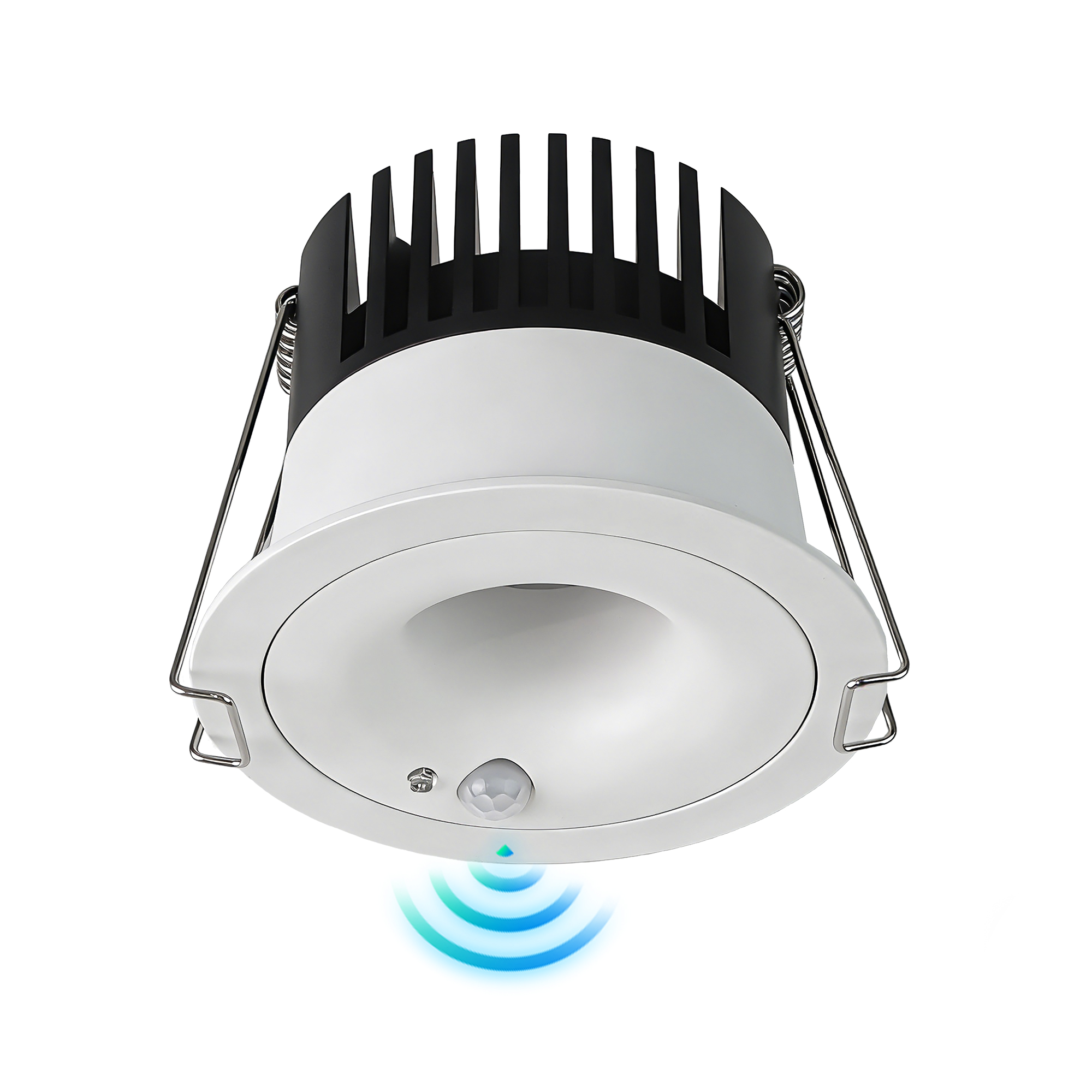

Motion Sensor + Photocell Sensor Recessed Led Downlight
· Photocell Sensor: The lamps starts to light up automatically after the induction of the ambient lux<30. · Motion Sensor: The lamps works if the motion happens at the range of the motion sensor inductio.
|
|  |
