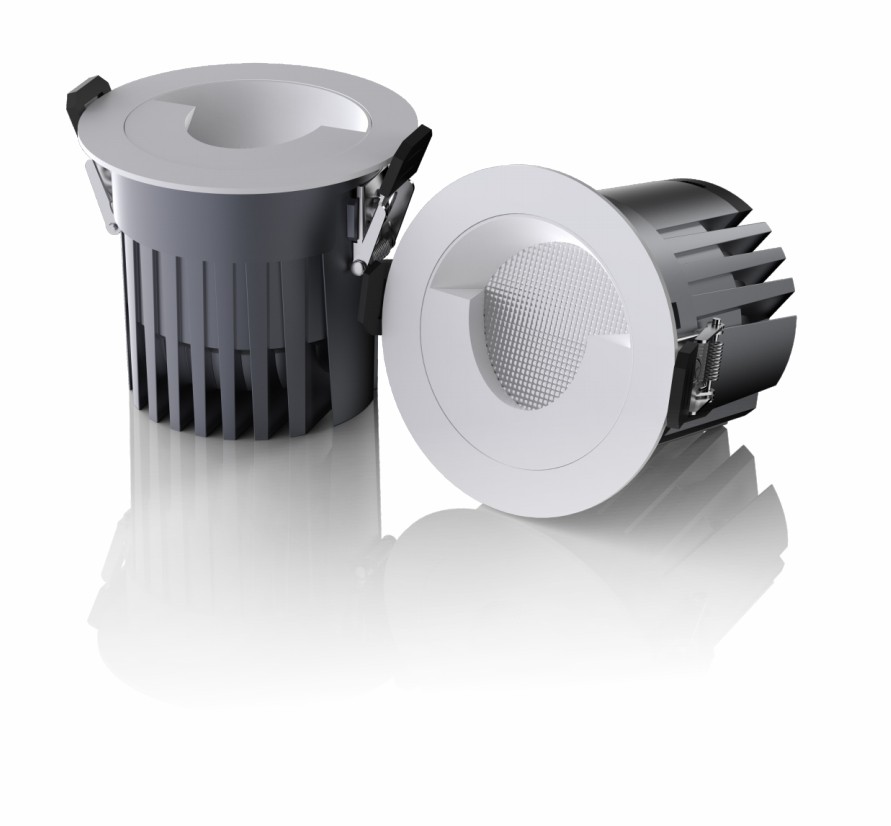

Polarized Spotlight Series
| DETAILS |
|
|
|
|

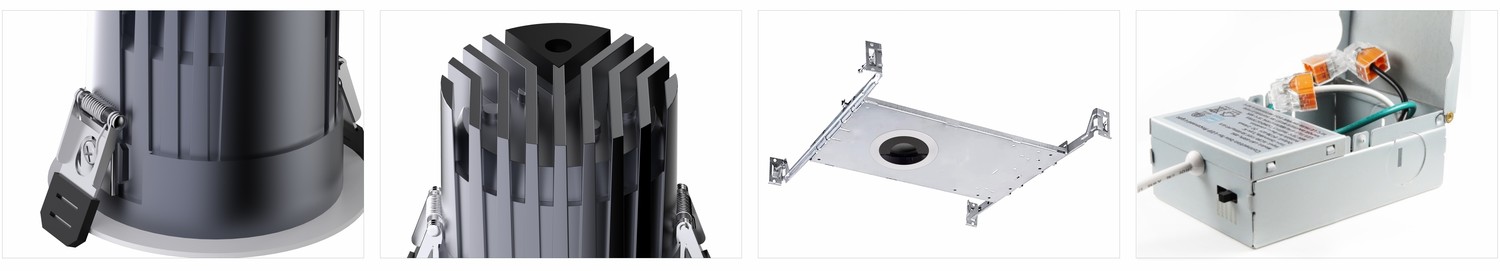

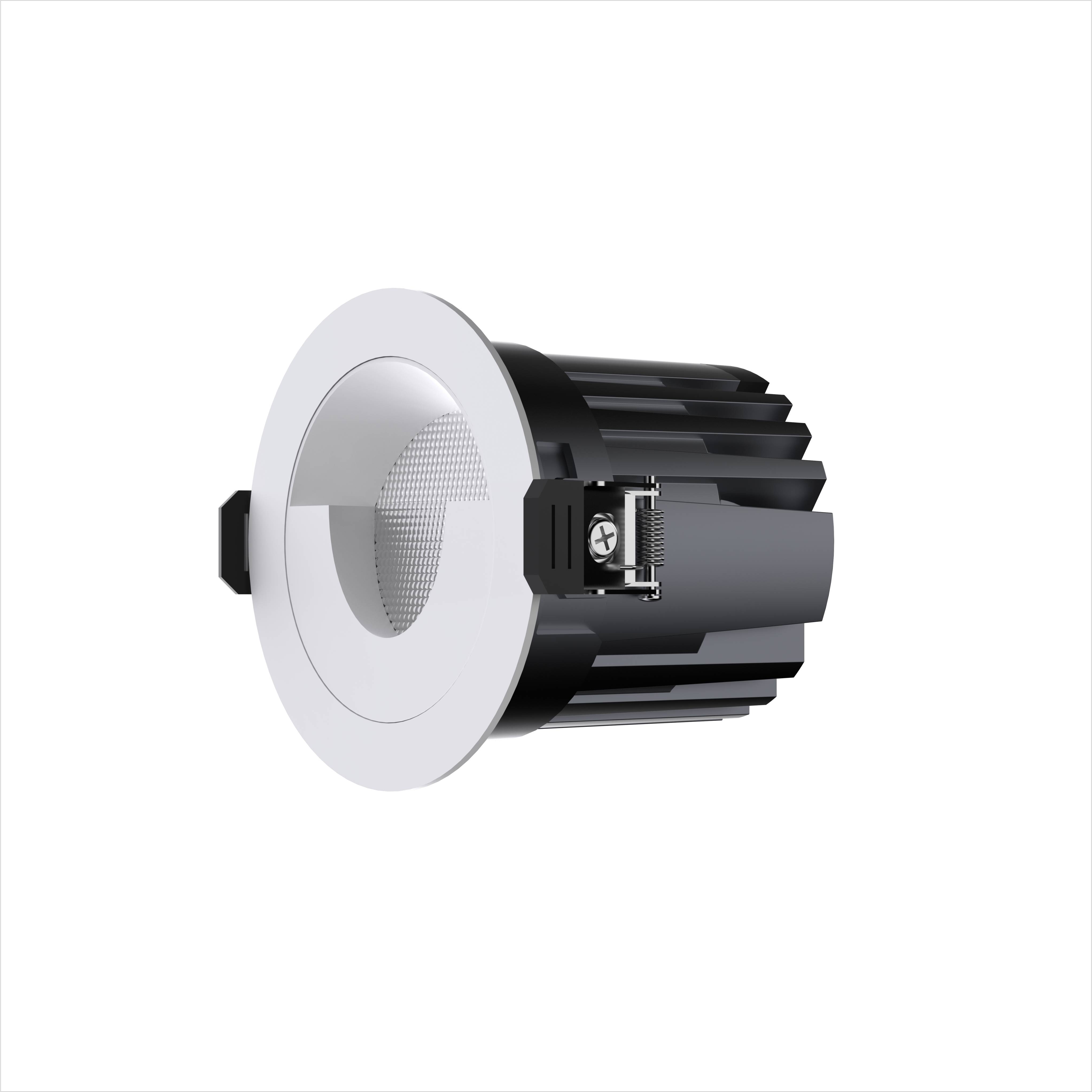

| WARRANTY AND LED LIFE 50,000-hour LED life LED SOURCE COLORS Warm Dim: 3000K-1800K Tunable White: 2700K-6500K 1-CCT : 2700K,3000K, 3500K,4000K,6000K 5-CCT : 2700K-3000K-3500K-4000K-6000K DIMMABLE Triac/ELV Dimmable with most CL dimmers 120V input 0-10V Dimmable Option with 120V to 277V/347V input EASY INSTALLATION Each unit includes a junction box with driver, pressure-fit spring clips and Quick Connect wire connectors for fast and easy installation
|
|
|
|
|
|

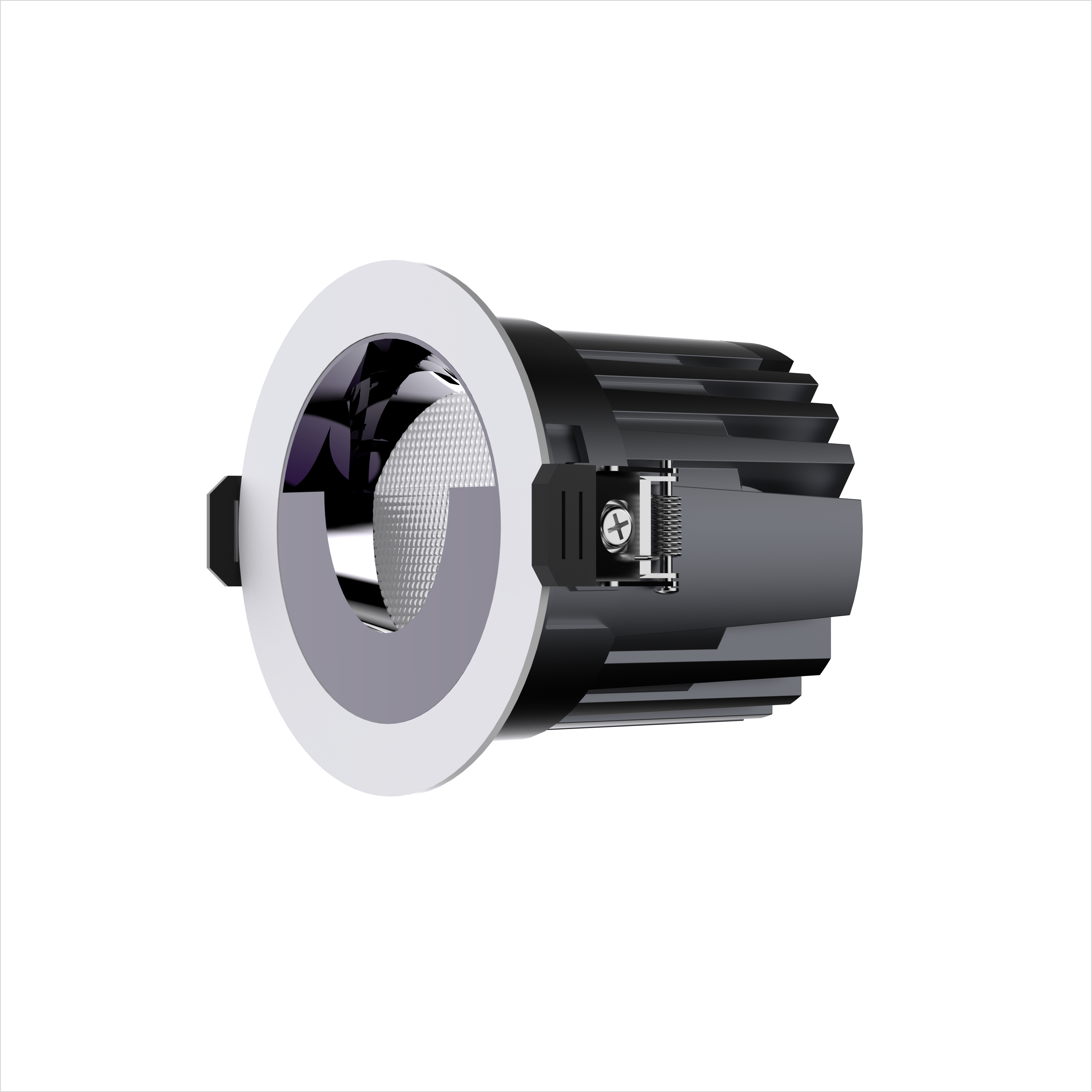

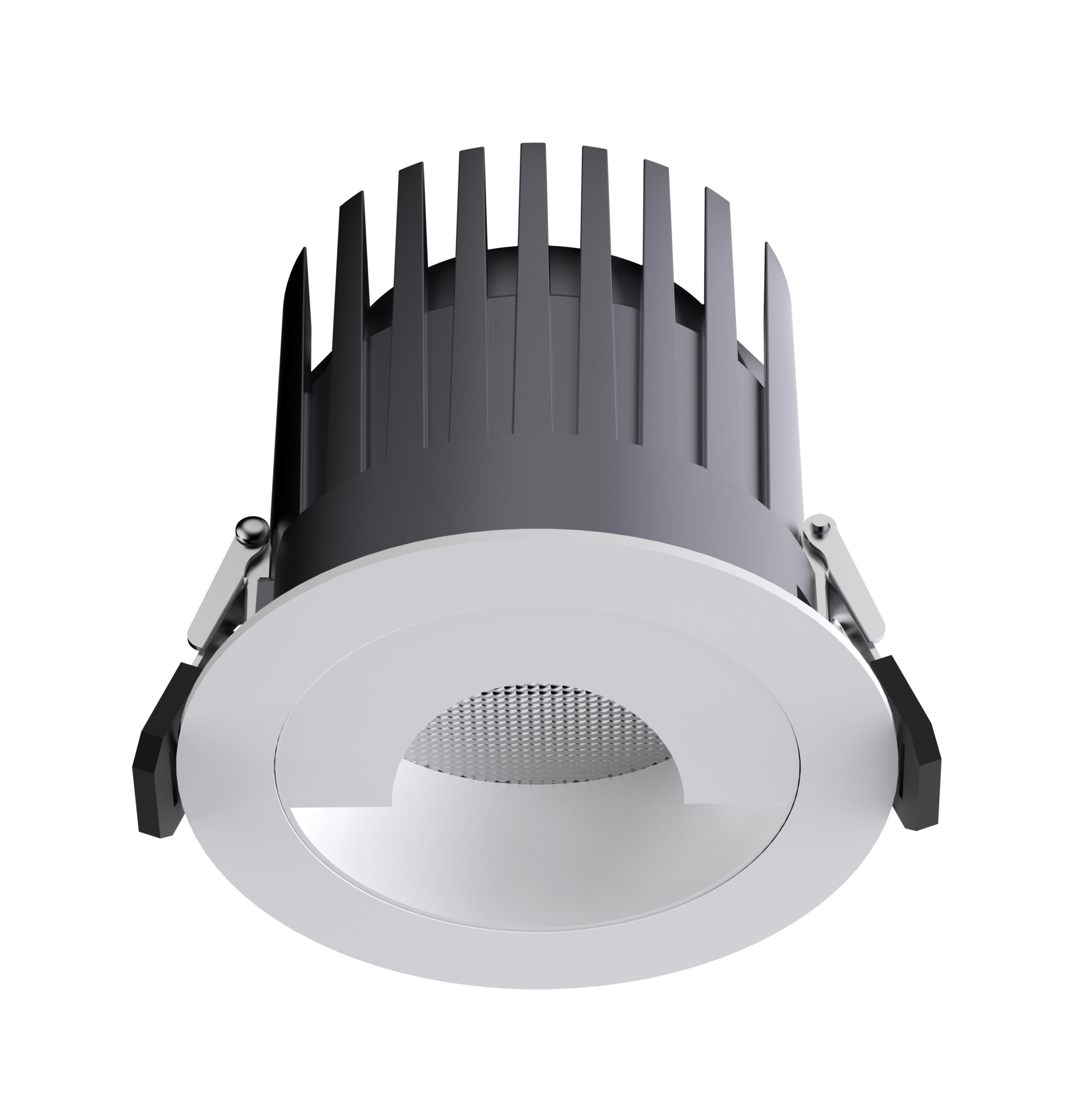

| Glare-free even when looking up. A semicircular hole is cut in the center of the aluminum panel following the golden ratio, paired with a remote light source design to keep the light source hidden and unexposed—you see the light but not the fixture under normal viewing angles. |
| CATEGORY |
|
|
|
|
 |  | | |

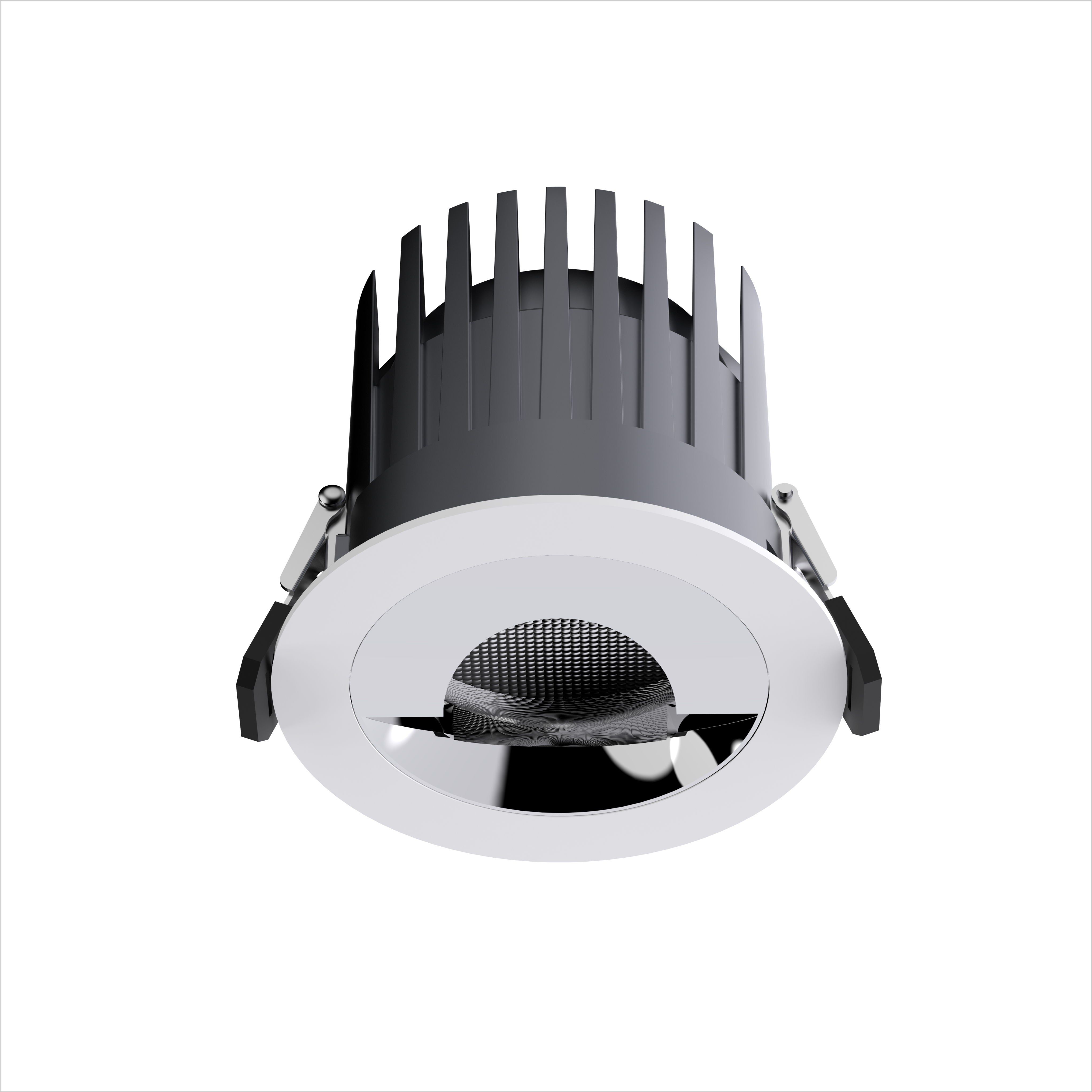

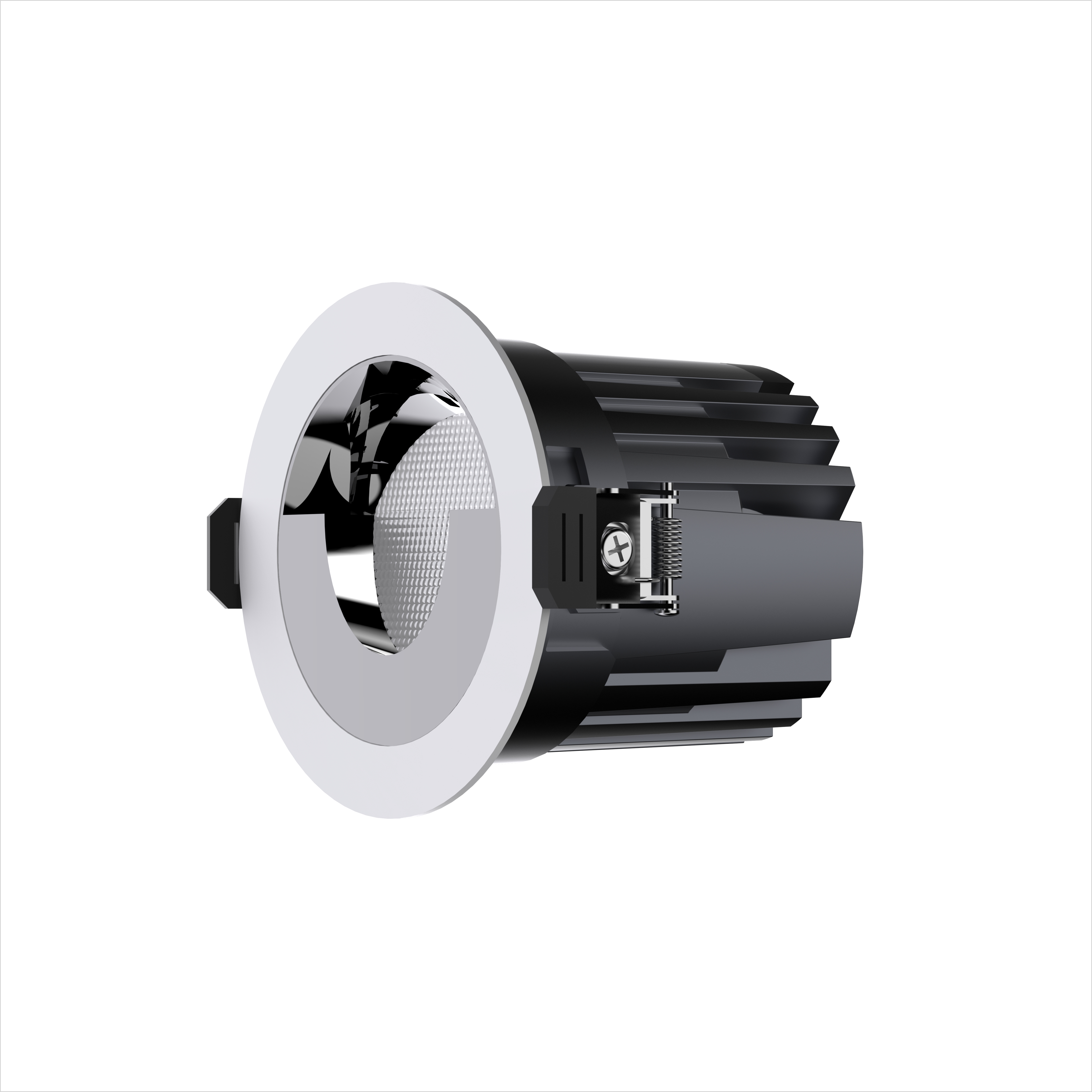

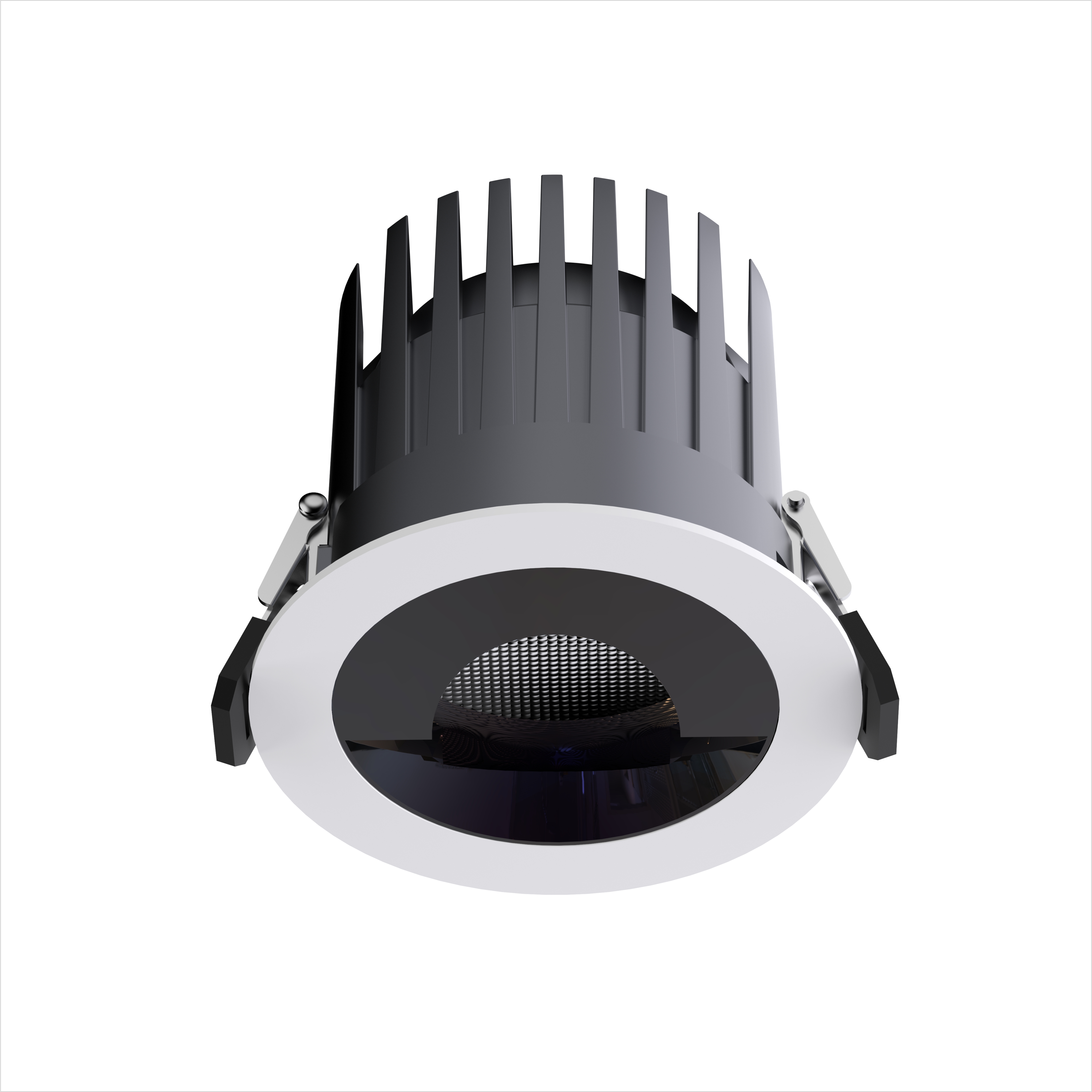

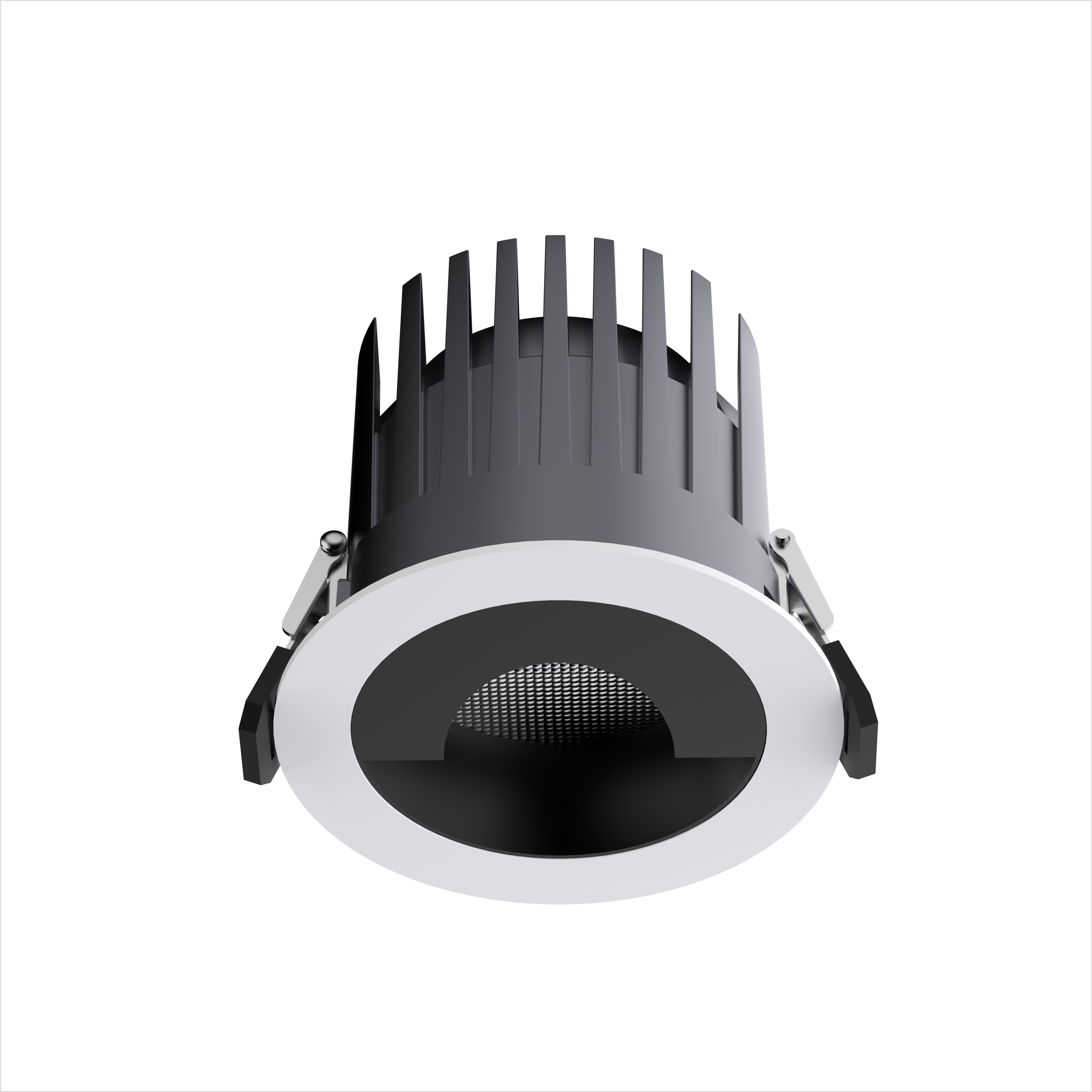

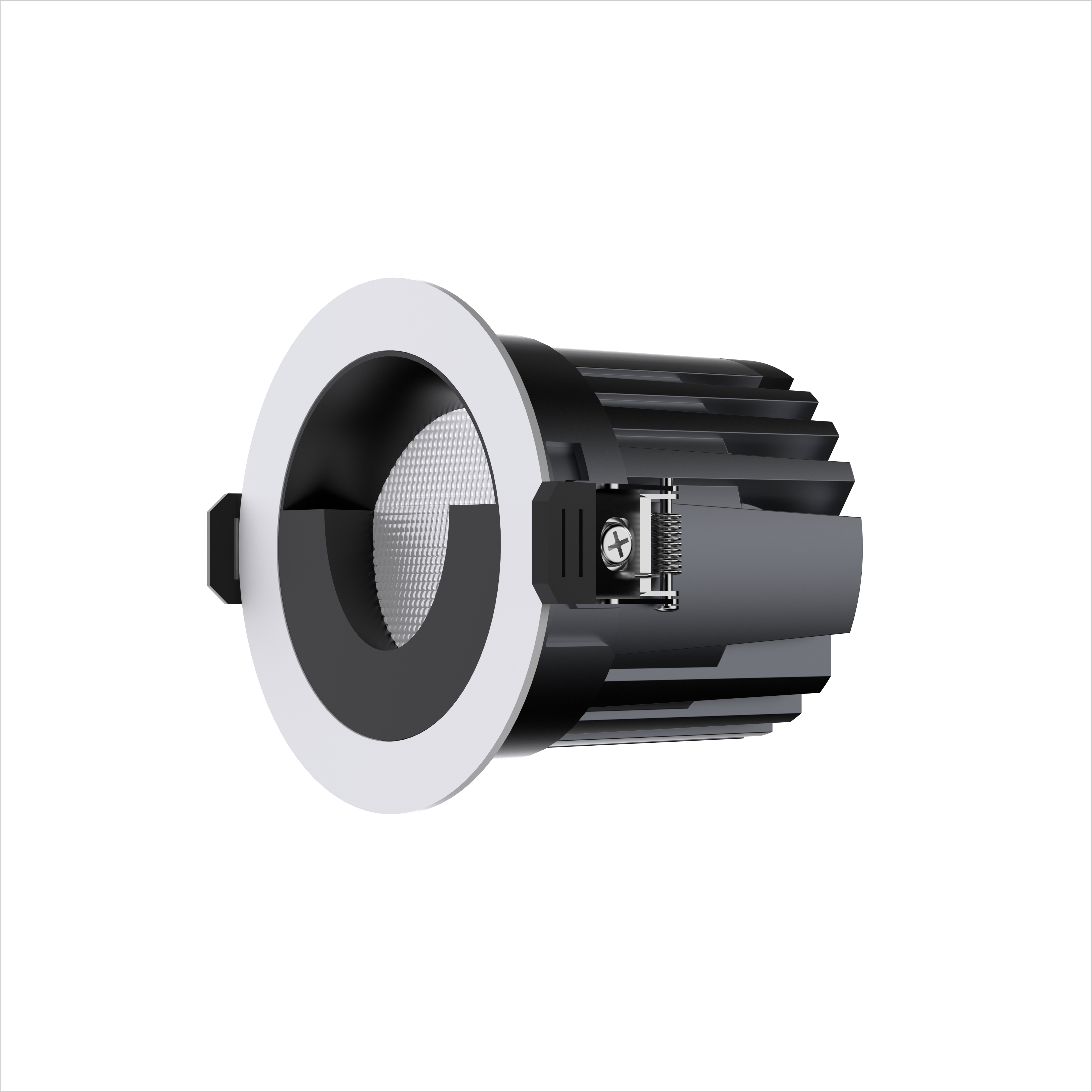

| Matte White | Matte Black | Glossy Silver | Glossy Black |
|
High color rendering index (CRI>98) delivers stunningly realistic color rendition of objects under light. Whether it is a decorative painting in a cozy corner of your home, where the delicate brushstrokes and subtle color transitions are clearly visible; or fashionable apparel displayed in commercial spaces, the fabric texture and vivid hues are perfectly enhanced, as if endowed with captivating charm. |
Item No.
| Mounting | Voltage | Wattage | CRI | Color Temp | Optics | Driver | Options | Size (mm) | Cutout (mm) | Trim Finish |
| 2 inch | Remodel；
New Construction | 120Vac 100-277Vac 100-347Vac 220-240Vac | 8W | 80Ra+
90Ra+ | 3000K 4000K 6000K | 30°-45° | Triac Dim. 0-10V Dim. Dali Dim. On/Off only | Standard
EM Backup | φ62xH60 | φ55 | White； Black ； Glossy Silver； Glossy Black |
| 2.5 inch | 12W | φ80xH72 | φ75 |
| 2.5 inch | 15W | φ80xH85 | φ75 |
| 3.5 inch | 24W | φ105xH85 | φ90-95 |
