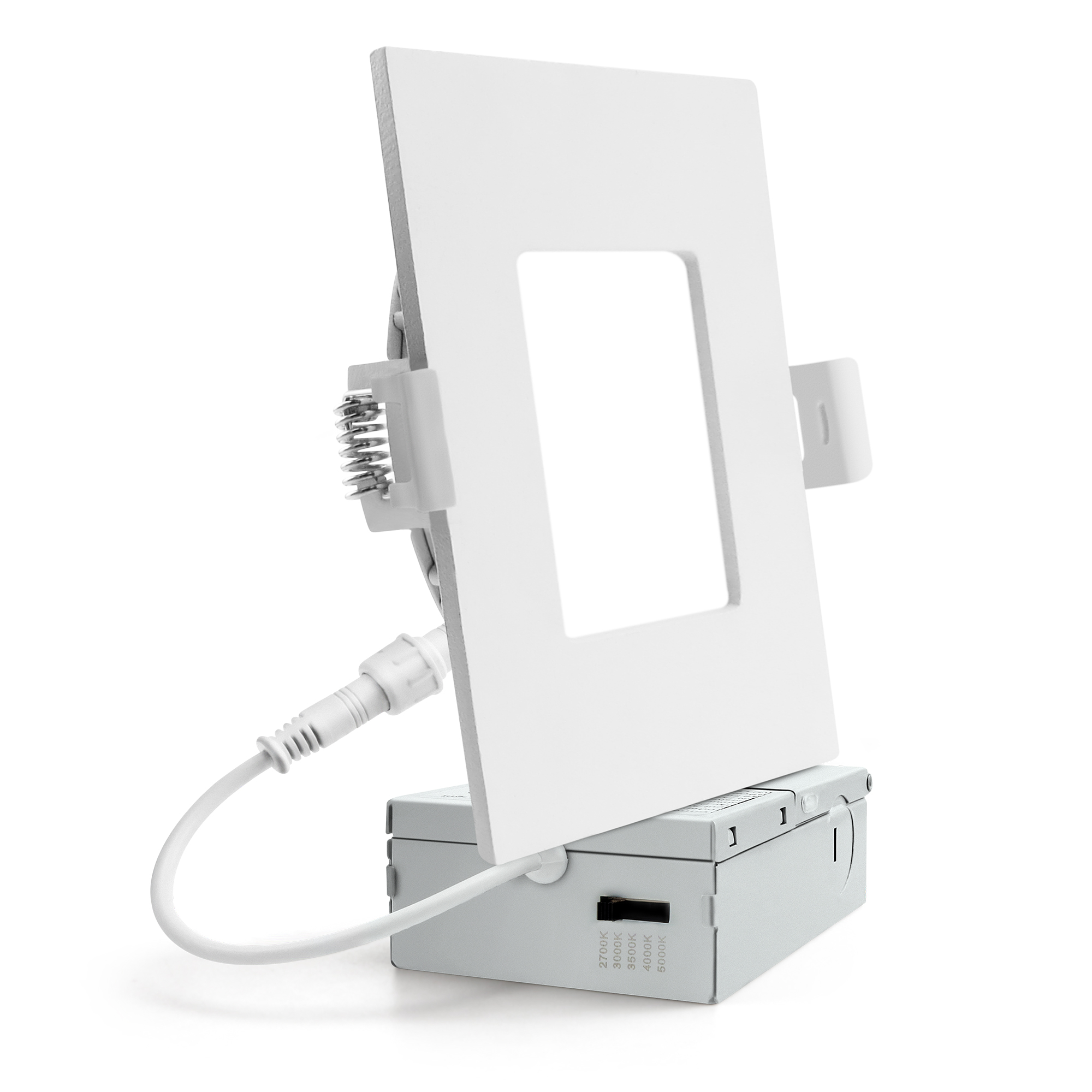

Square Shape,Square Cut ETL Led Panel Light

Input voltage AC120V / AC220V(50~60Hz)
LED Chip SMD2835
COL.TEMP 2700K l 3000K l 4000K l 5000K
CRI 80Ra l 90Ra  PF>0.9
Material Aluminum
Warranty 5 Years
Installation Recessed
Trim Color White l Black l Silver Trim
Certification cETLus l Energy Star l FCC l SAA l CE
DESCRIPTION


Download-Catalogue.png Download-Specification.png Download-Test-Report.png Download-Installation-Notes.png

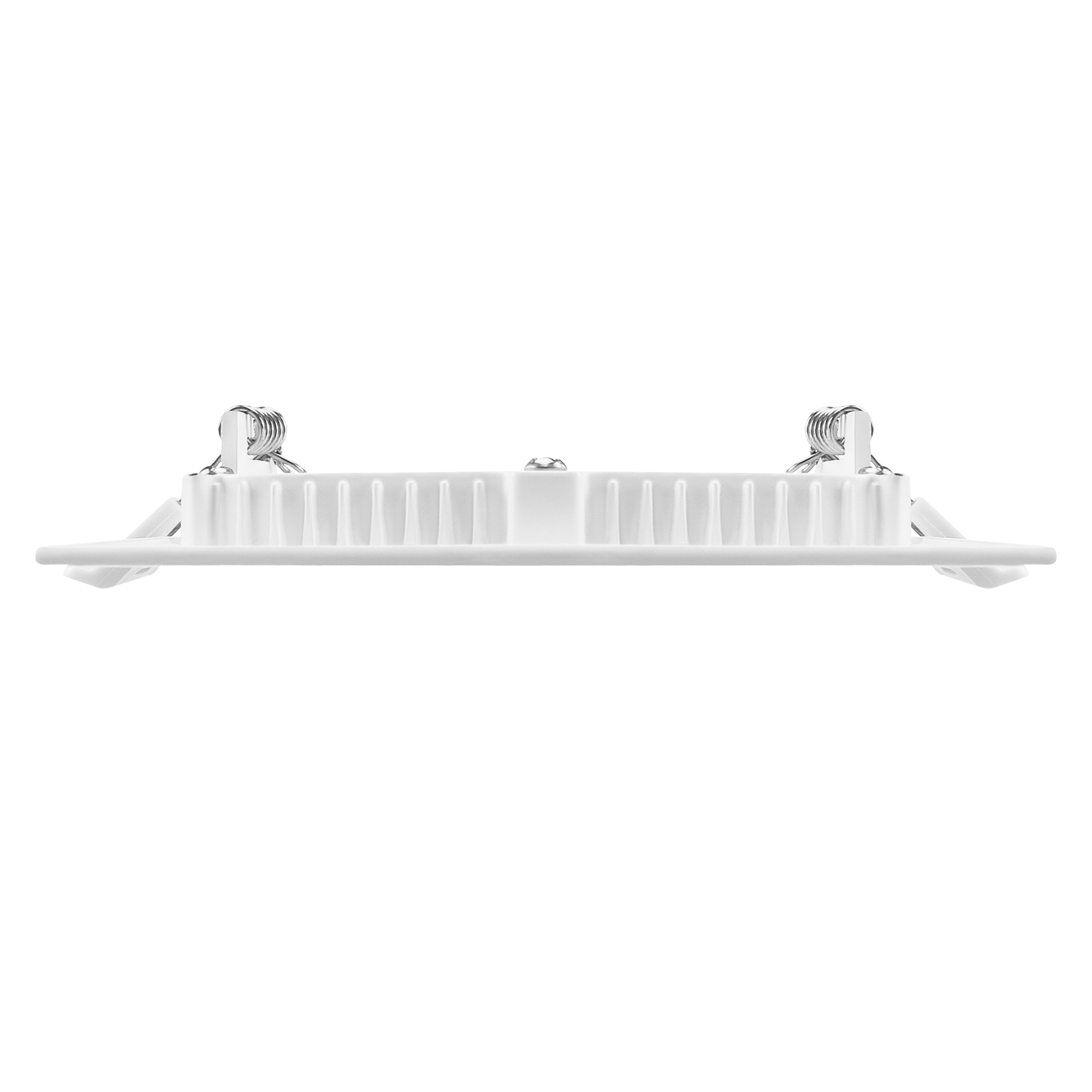

Body

Durable airtight aluminum body with etched white

PMMA diffuser lens for low glare.

Mounting

Includes two spring loaded clips to attached to

any ceiling material.

Environment

• Suitable for wet locations.

• Suitable for insulated ceiling applications

LED Characteristics

This general application light fixture features more watt LED module that

maintains uniform intensity producing up to 800 lumens; with a typical CRI of 80.Available in 3000K, 4000K or 5000K colour temperature.

LED Driver

Extruded aluminum hardwire box with 300mA dimmable class II electronic LEDdriver with 100-135V AC input. Includes an 18" plenum rated FT6 wire with DC 2.1 connector from driver to fixture.



Description

The Super thin led panel light is for recess retrofit application as well.It is a high-performance,easy to install residential and commercial grade downlight solution that offers super high output,energy-efficiency and streamlined design. Suitable for wet locations.

Dimming

100%-5% dimming capability. This fixture is compatible with industry

standard TRIAC/ELV dimmers (contact factory for listing of compatible dimmers).

Quick Connect push-in terminals

Three“Quick connect” push-in terminals for fast and easy wiring.

Beam Spread

The fixture lens provides 100° beam spread.

Operating Temperature

-20°C~40°C (-4°F~104°F)



PARAMETER



Type

Model

LED

Watt (W)

Input Voltage

Efficacy lm/w

Beam Angle

CRI

Finshed

Size (MM)

Cutout(MM)

Dimming

Warranty

Certification
4 inch

LBT-SRPL-09D

SMD2835
6/9

AC120V/AC220V

90-100

100°

80Ra/90Ra

WH/BK/SL

L120*W120*H20106*106
Yes5 Years

cETLus

Energy Star

FCC

SAA

CE

4.5 inchLBT-PL-10DSMD28357/10AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L135*W135*H20120*120Yes5 Years
5 inchLBT-PL-12DSMD28359/12AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L146*W146*H20133*133Yes5 Years
6 inchLBT-PL-15DSMD283512/15AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L172*W172*H20155*155Yes5 Years
6.5 inchLBT-PL-15ESMD283512/15AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L180*W180*H20160*160Yes5 Years
7 inchLBT-PL-18DSMD283515/18AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L190*W190*H20175*175Yes5 Years
7.5 inchLBT-PL-18ESMD283515/18AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L200*W200*H20185*185Yes5 Years
8 inchLBT-PL-20DSMD283518/20AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L225*W225*H20205*205Yes5 Years
9 inchLBT-PL-22DSMD283520/22AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L237*W237*H20220*220Yes5 Years

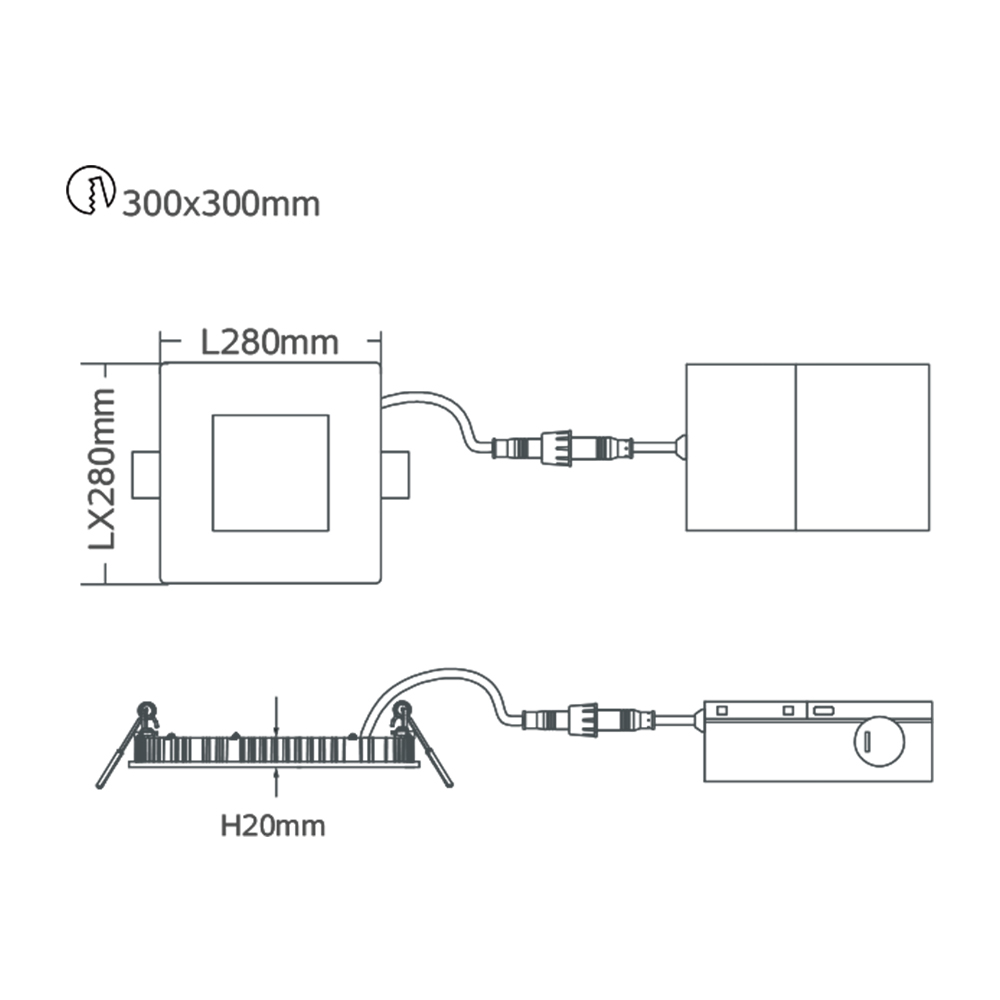

11 inchLBT-PL-26DSMD283524/26AC120V/AC220V90-100

100°

80Ra/90Ra

WH/BK/SL

L300*W300*H20280*280Yes5 Years
