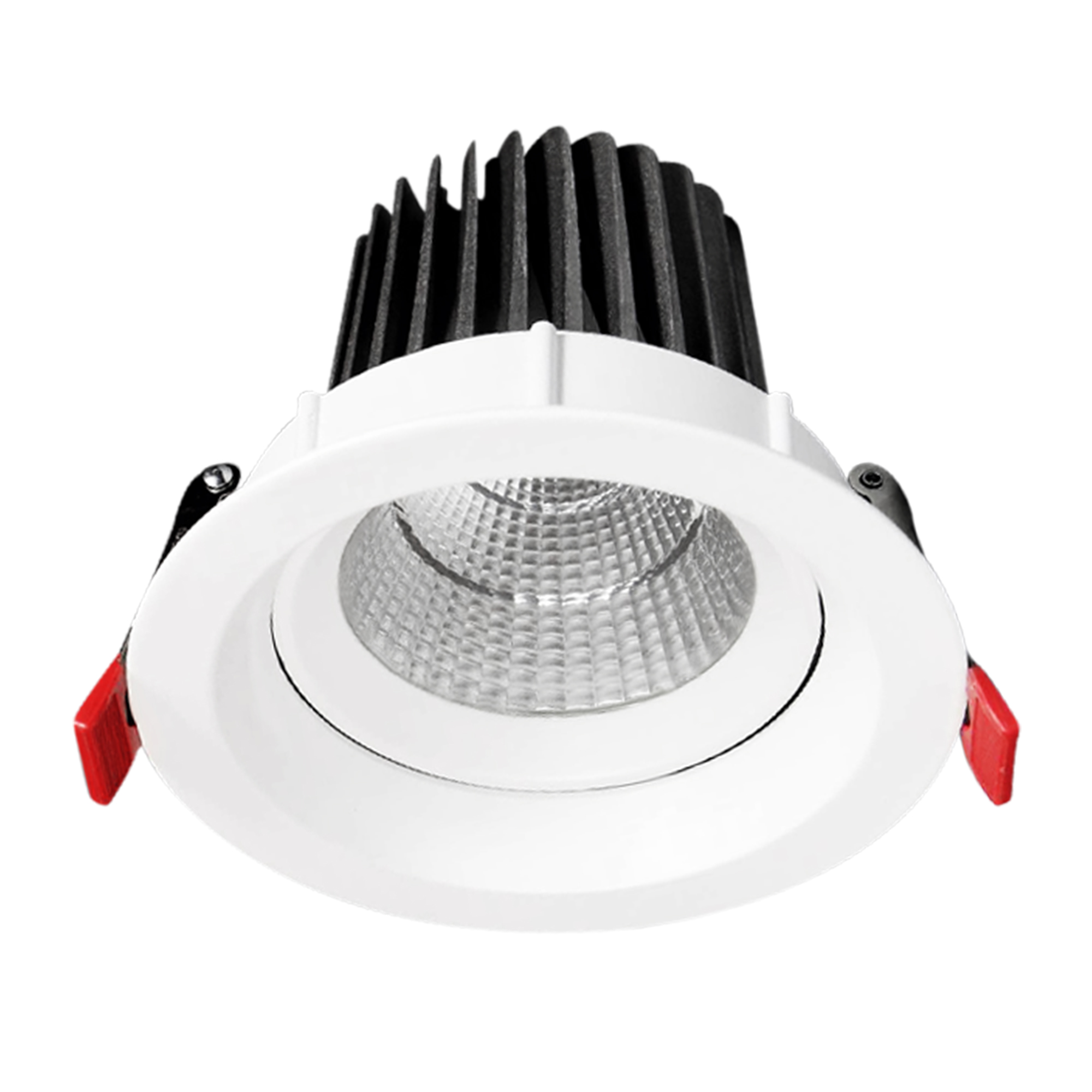

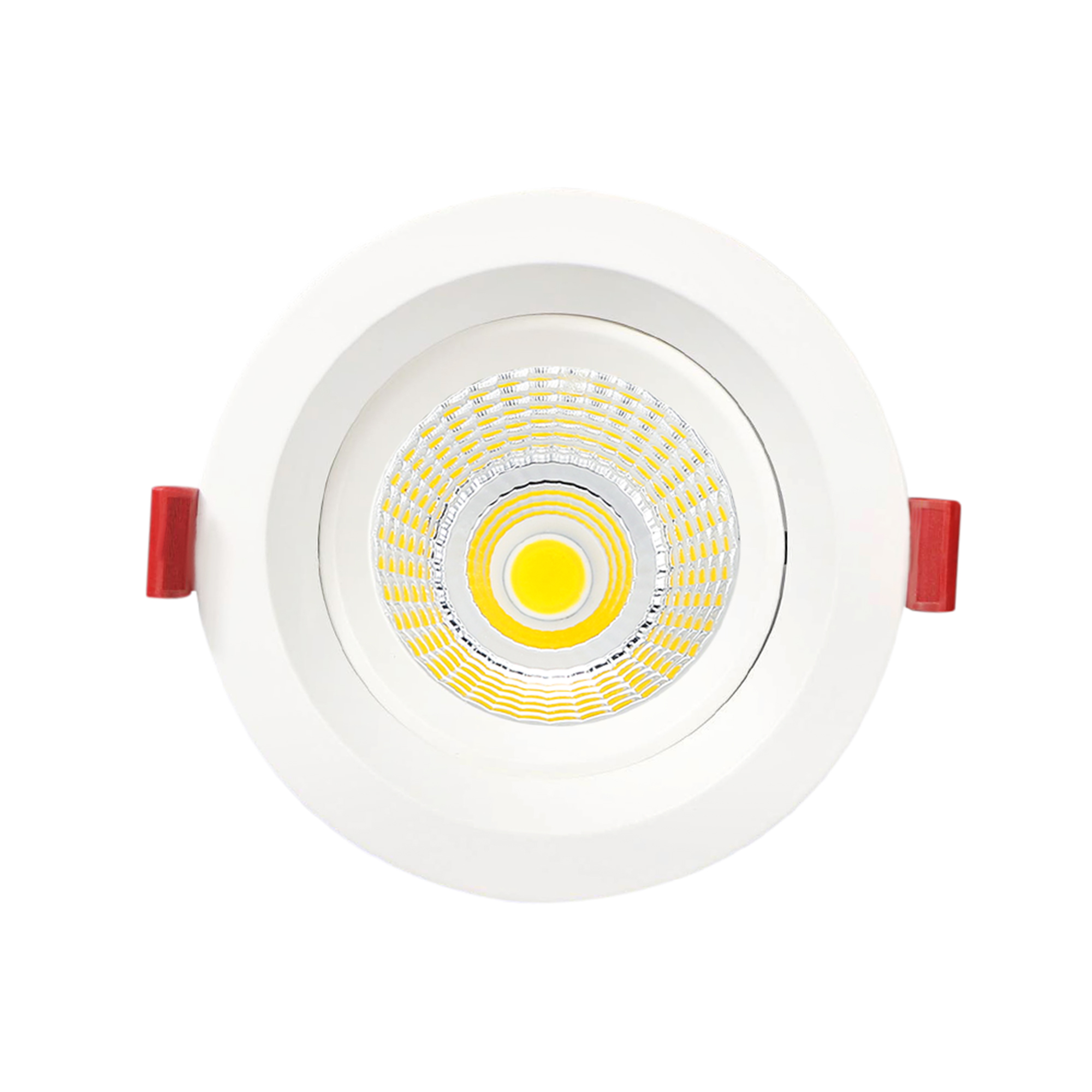

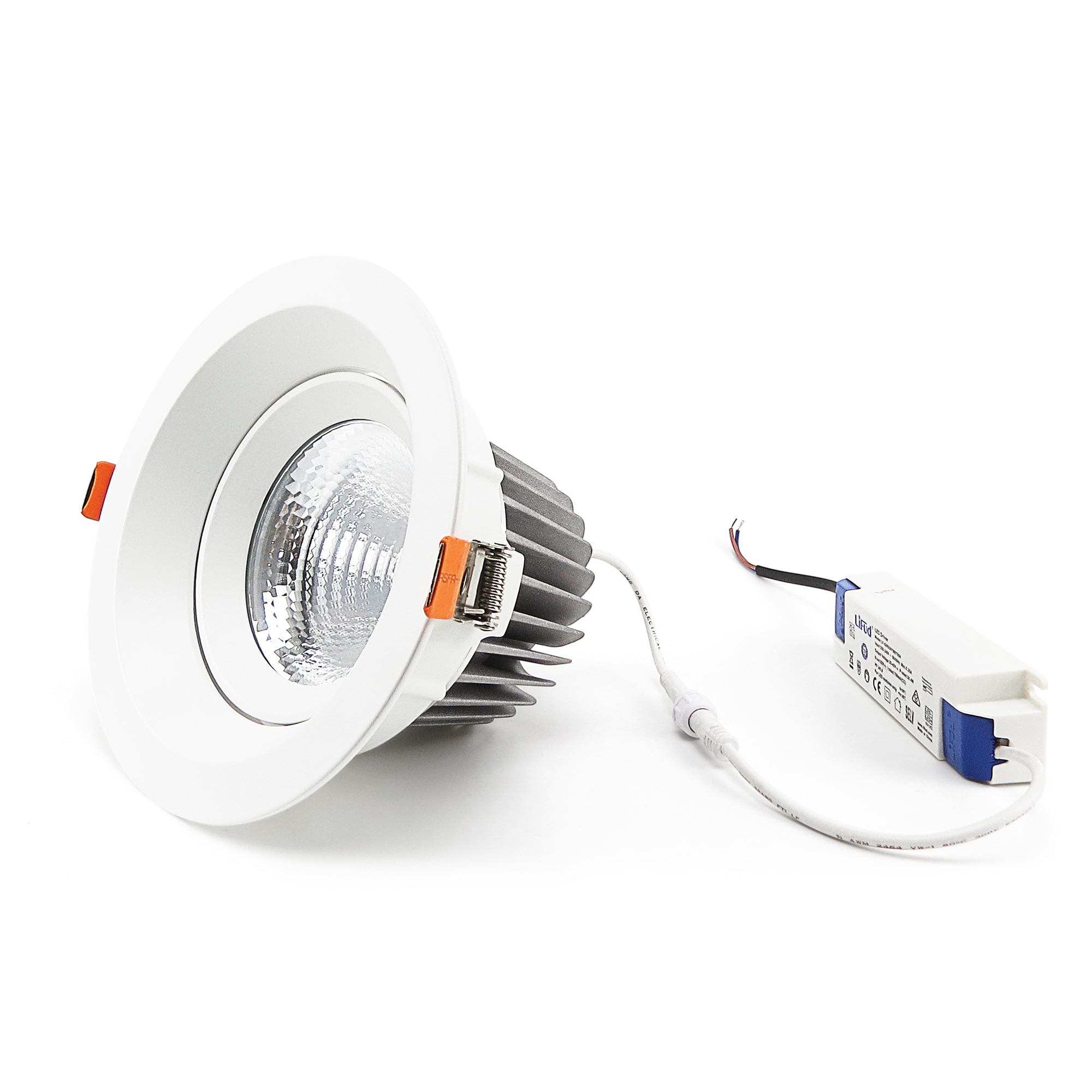

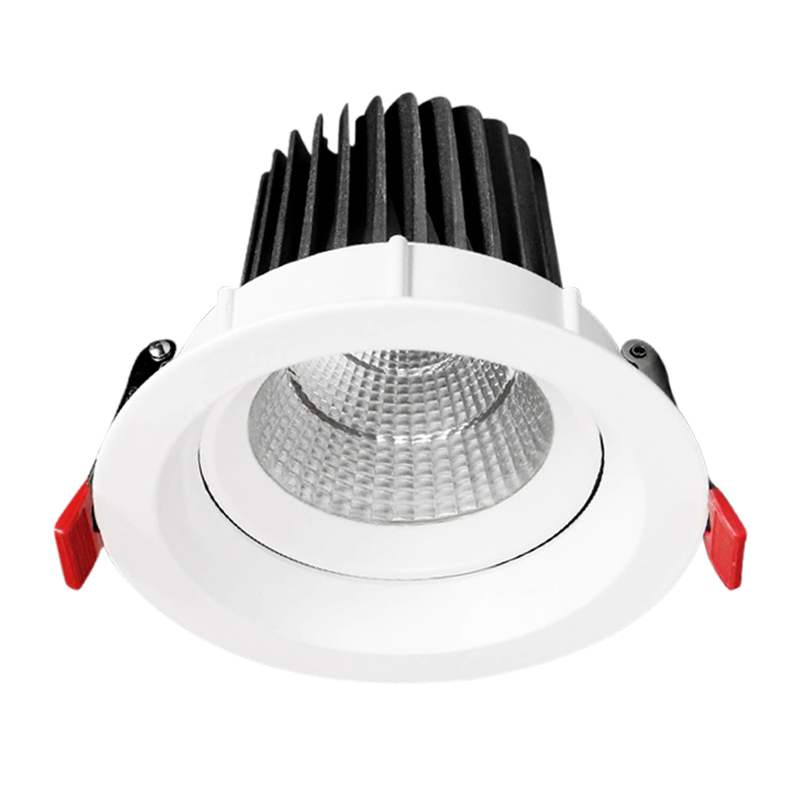

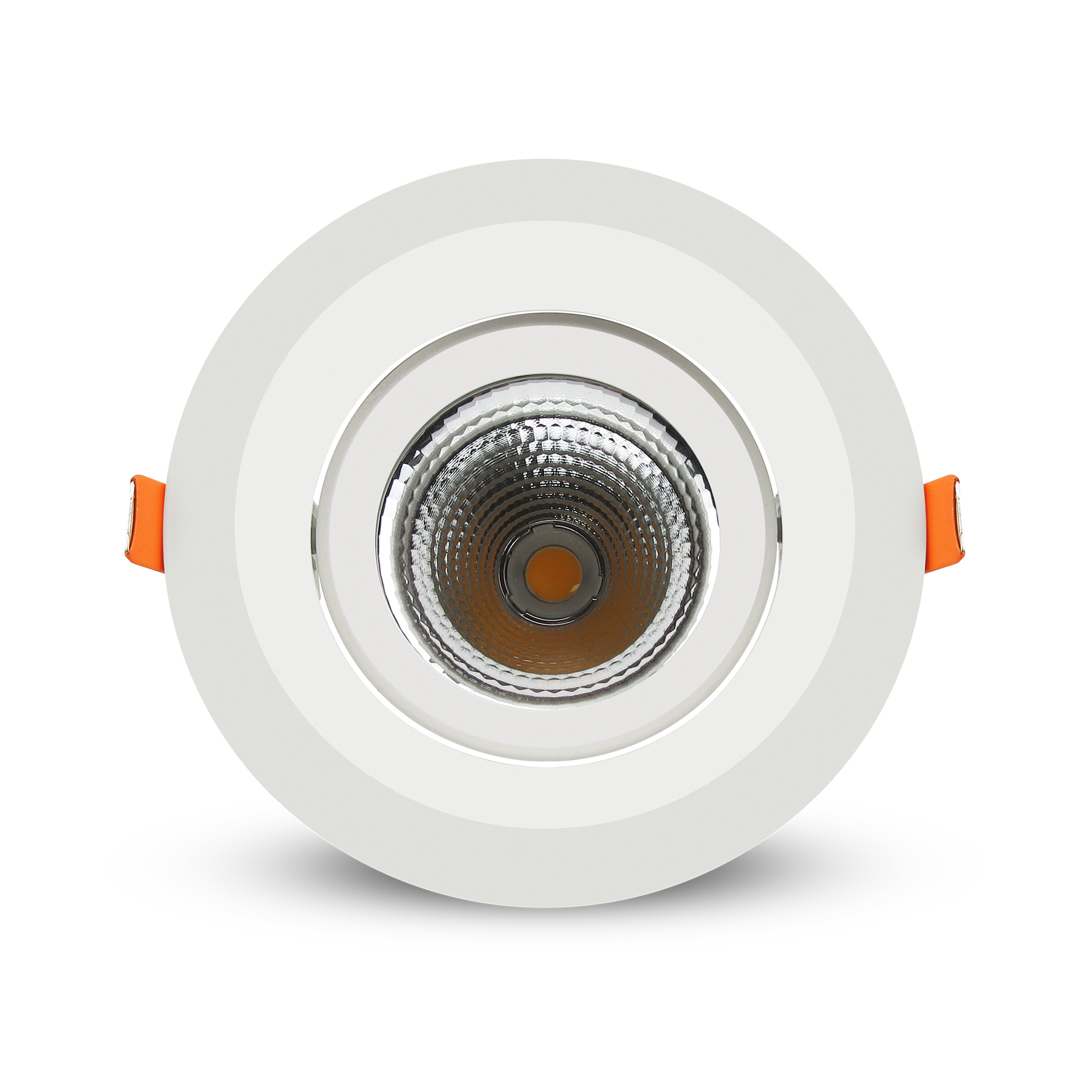

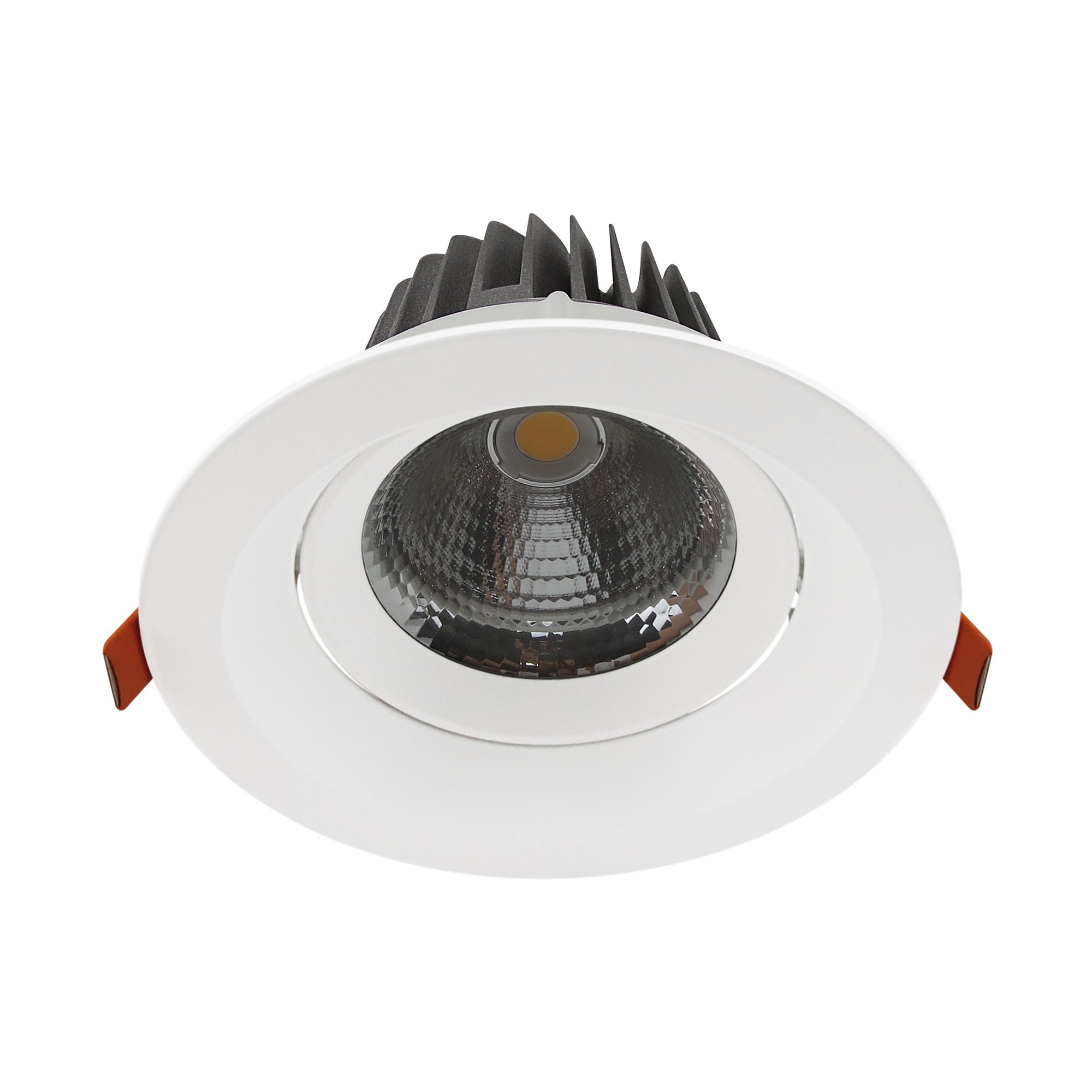

Anti-Glare Adjustable COB LED Downlight
DETAILED
ETL AND ES LISTED DRIVER

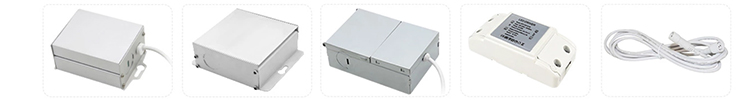

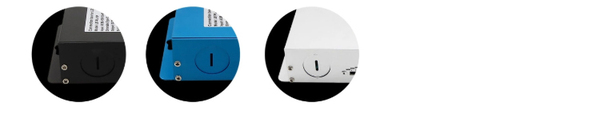

(North America /Eurpe Market) Type /Size and Color of junction box can be cuztomized

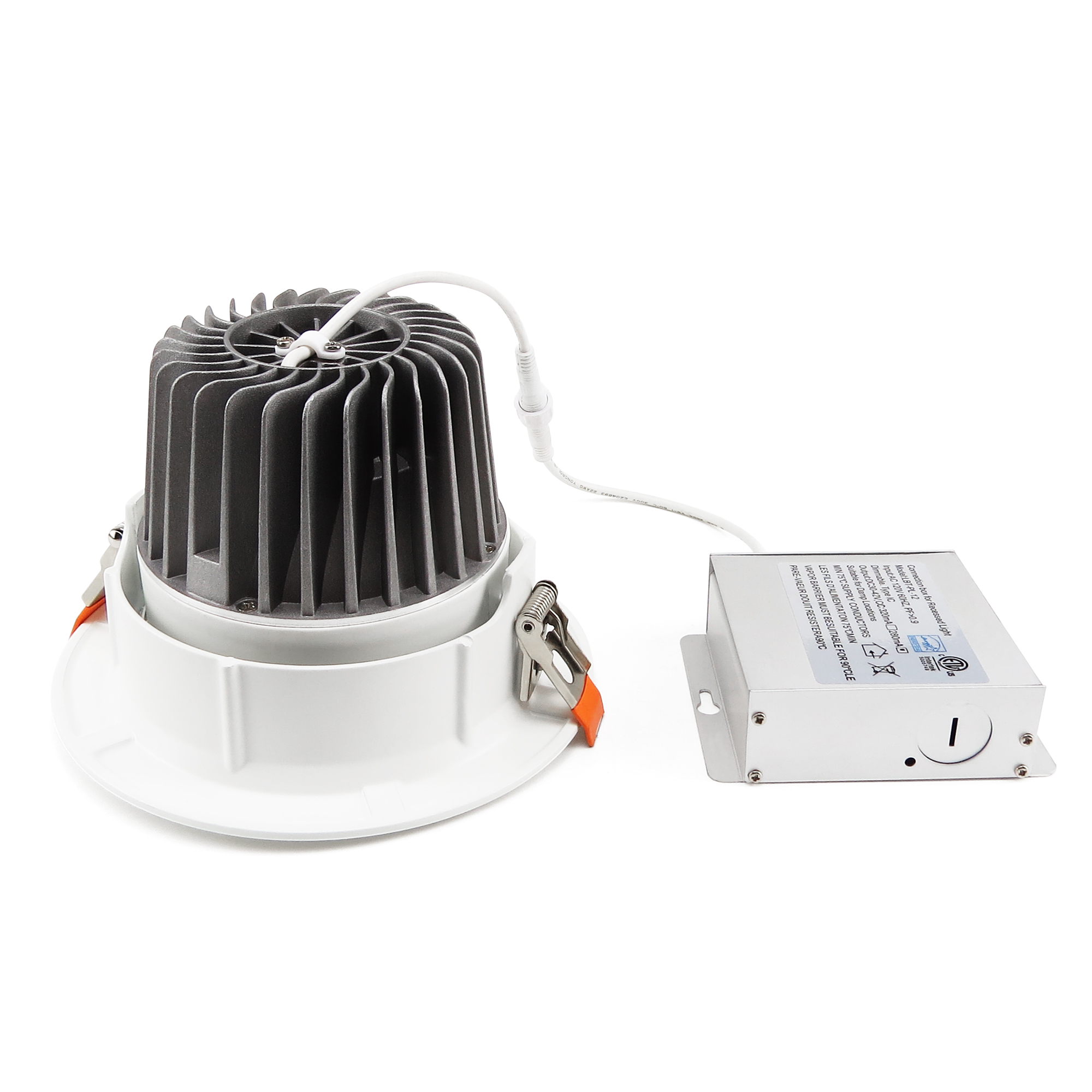

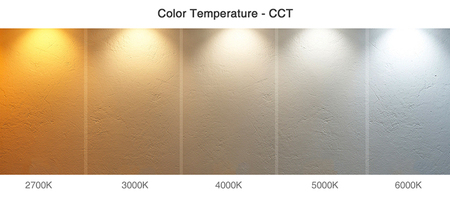

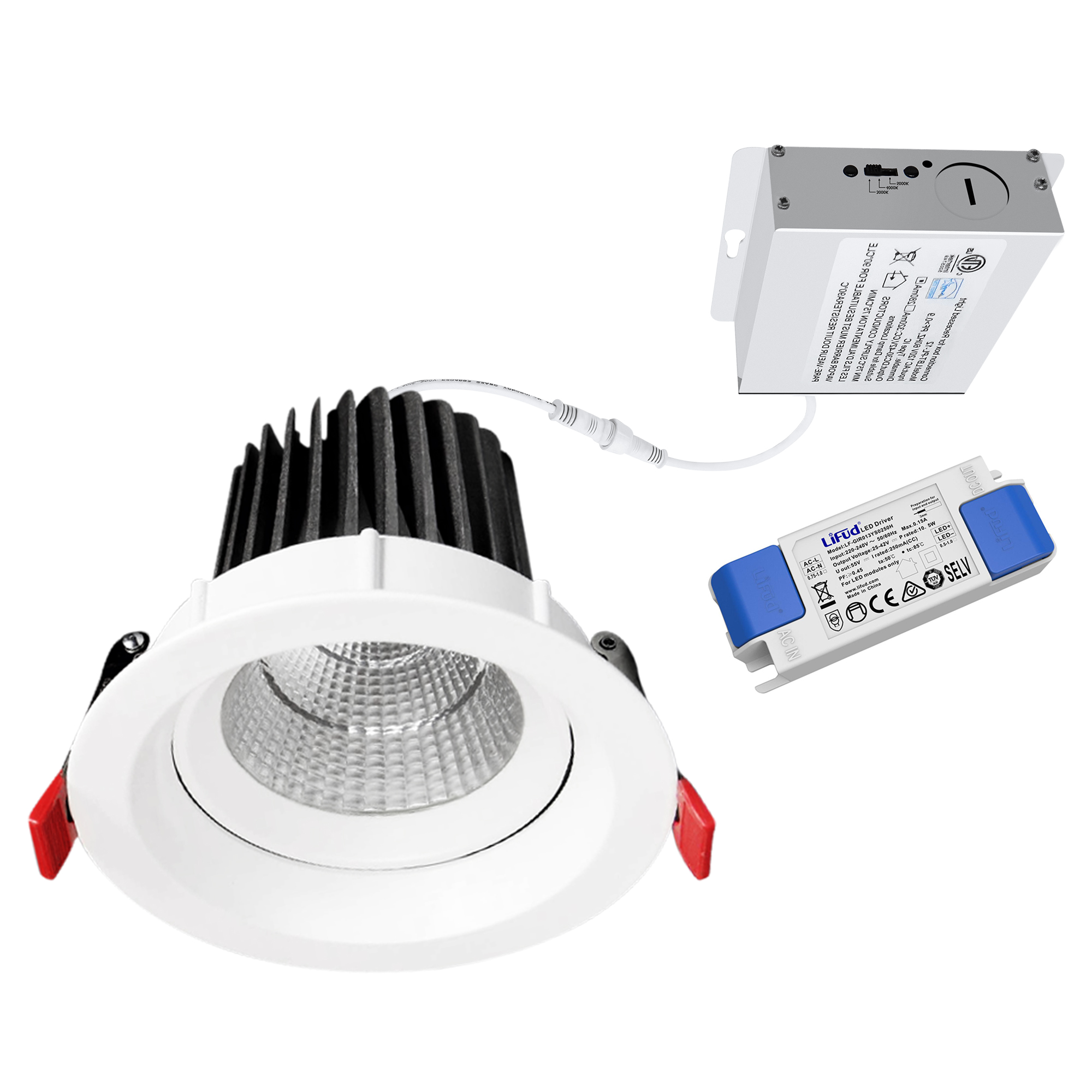

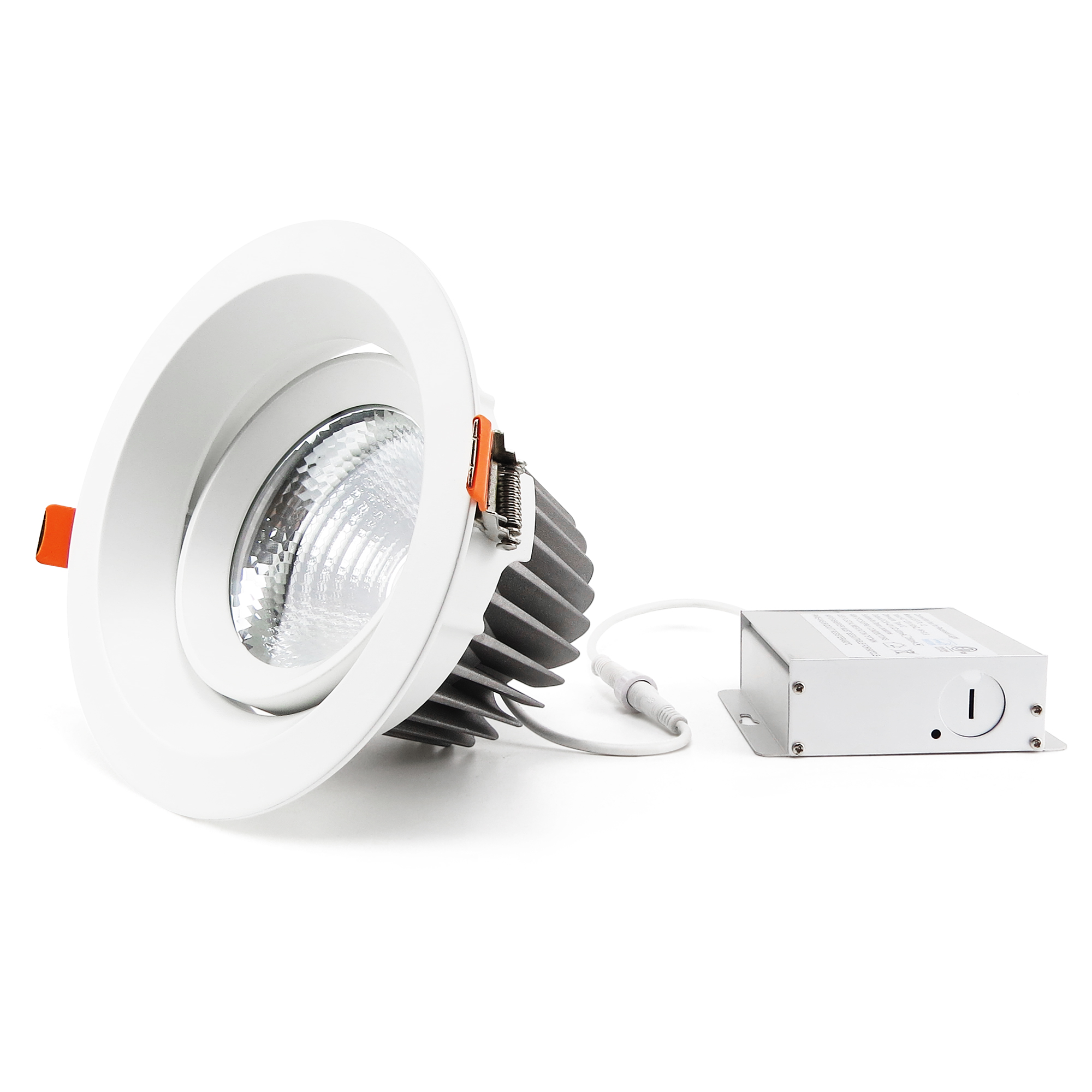

a. Metal Junction box optional - Metal box-cheaper solution Cost down the price for option. b.lC Rated Junction box - lsolated driver(Aluminum 1050)3-CCT Built-in for Option 3000k-4000k-5000k /Single color option:3000k/4000k/5000k/6000k c.Connector Extension Cord Extension cable for between panel and driver box. |
|
|
|
 |

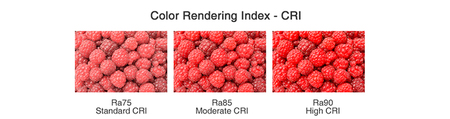

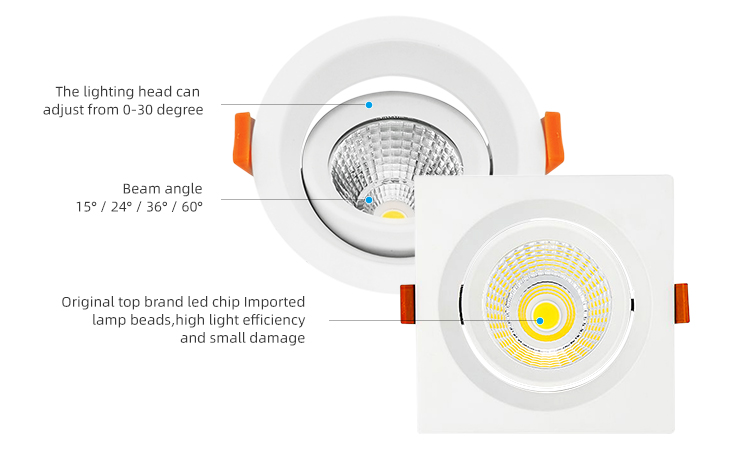

| Type | Model | LED | Watt(W) | Input Voltage | Efficacy lm/w | Beam Angle | CRI | Finshed | Size(MM) | Cutout(MM) | Dimming | Warranty | Certification
|
|
| Square | LBT-TDCOB07-SEC005 | COB | 7 | AC120V/AC220V | 90-100 | 24°/38°/60° | 80Ra/90Ra | WH/BK/SL | 87*87*70 | 75*75
| Yes | 5 Years | cETLus Energy Star FCC SAA CE |
| Square | LBT-TDCOB12-SEC006 | COB | 12 | AC120V/AC220V | 90-100 | 24°/38°/60° | 80Ra/90Ra | WH/BK/SL | 100*100*86 | 85*85 | Yes | 5 Years |
| Square | LBT-TDCOB20-SEC007 | COB | 20 | AC120V/AC220V | 90-100 | 24°/38°/60° | 80Ra/90Ra | WH/BK/SL | 140*140*106 | 120*120 | Yes | 5 Years |
| Square | LBT-TDCOB30-SEC008 | COB | 30 | AC120V/AC220V | 90-100 | 24°/38°/60° | 80Ra/90Ra | WH/BK/SL | 175*175*120 | 150*150 | Yes | 5 Years |
| Round | LBT-TDCOB07-REC009 | COB | 5-7 | AC120V/AC220V | 90-100 | 24°/38°/60° | 80Ra/90Ra | WH/BK/SL | Φ85*70 | Φ75-80 | Yes | 5 Years |
| Round | LBT-TDCOB12-REC010 | COB | 7-12 | AC120V/AC220V | 90-100 | 15°/24°/38°/60° | 80Ra/90Ra | WH/BK/SL | Φ100*85 | Φ85-90 | Yes | 5 Years |
| Round | LBT-TDCOB18-REC011 | COB | 12-18 | AC120V/AC220V | 90-100 | 15°/24°/38°/60° | 80Ra/90Ra | WH/BK/SL | Φ140*105 | Φ115-130 | Yes | 5 Years |
| Round | LBT-TDCOB25-REC012 | COB | 18-25 | AC120V/AC220V | 90-100 | 15°/24°/38°/60° | 80Ra/90Ra | WH/BK/SL | Φ175*118 | Φ150-160 | Yes | 5 Years |
